> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 2000 > 618/38180 C > 7000001 > Handle Assy.

Spare Parts Lists for Toro Roth / TORO Handle Assy.




pos.decriptionspare part number
12-2929
12-4639

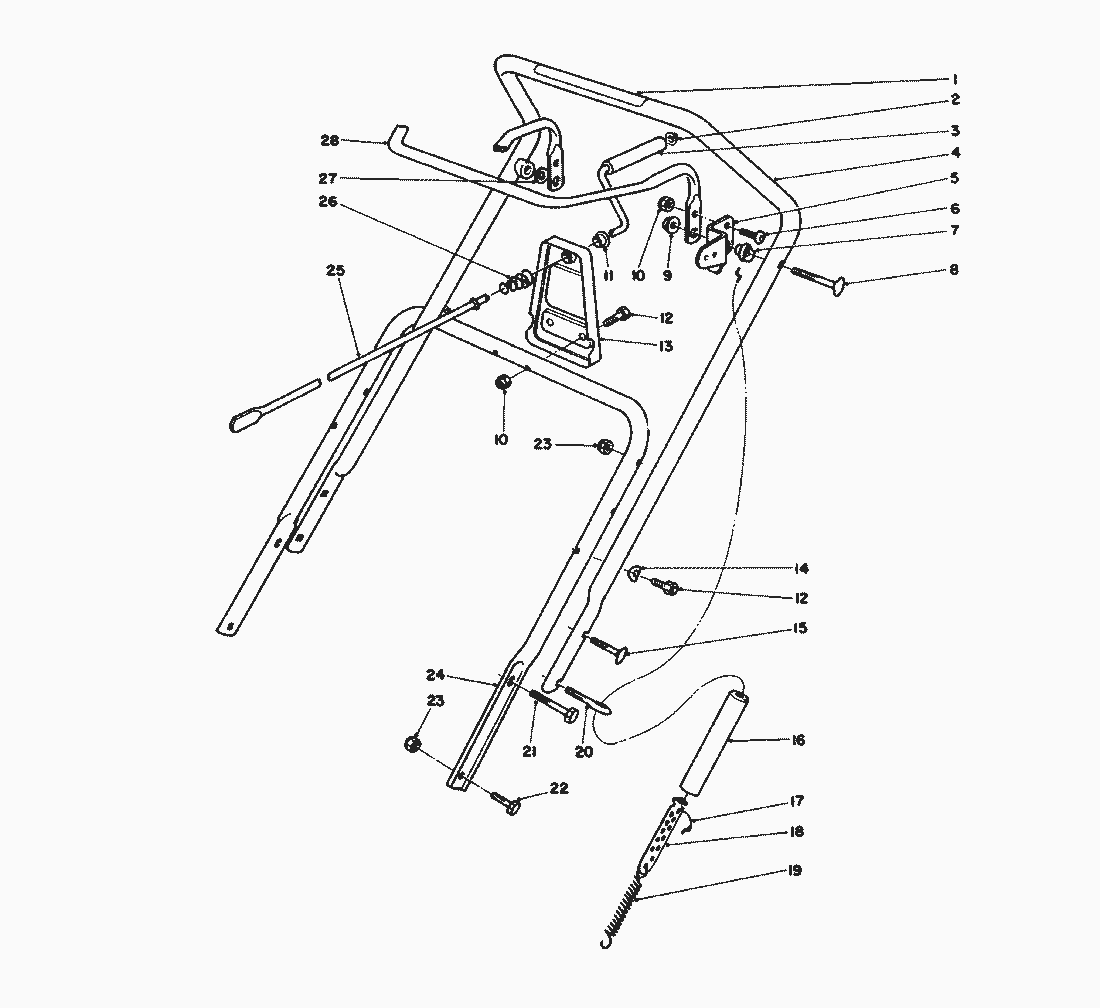

spare parts list


pos.decriptionspare part number
1Decal-Rotor Drive (Model No. 38180)55-9640
Decal-Rotor Drive (Model No. 38180C)60-9470
2Push-On Speed Nut3290-320
3Chute Control Grip40-8230
5Arm-Clutch Cable55-9100
6Screw-Button Hd.3274-31
7Spacer-Control Bar55-9340
8Screw-Handle17-9420
9Nut-Flange Lock3296-58
10MUTTER3296-42
11Nyliner256-249
12Screw-Hex. Hd.321-13
13Support-Chute Crank55-9090
14Washer3-7501
15Screw-Handle17-9424
16Cover-Spring55-9390
17Cable-Clutch55-9320
18Adjuster-Clutch Cable55-9380
19Spring-Extension55-9270
20Bolt-Eye55-9420
21Capscrew322-9
22Capscrew322-3
23MUTTER3296-29
24Handle-Lower55-9120
25Rod-Chute Crank55-9140
26Spring-Compression55-9440
27Washer-Rubber55-9670
28Bar-Control55-9130
