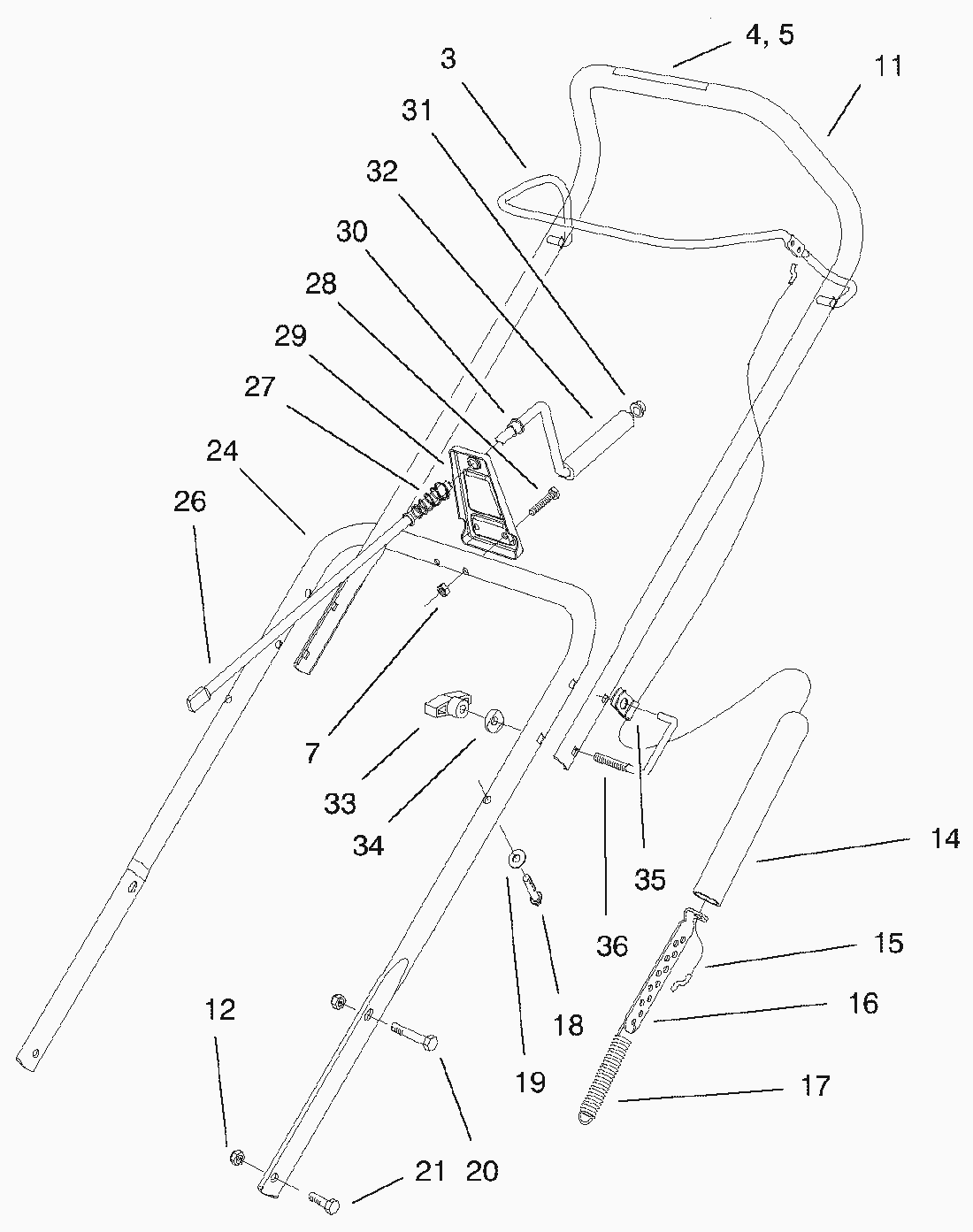

Spare Parts Lists for Toro Roth / TORO Handle Assy.

pos.	decription	spare part number
3	Bar-control	98-2264-03
4	Decal-Rotor Drive	66-6870
5	Decal-Rotor Drive	94-2577
7	MUTTER	3296-42
11	Upper Handle Assembly (Incl. ref.	95-2669
12	MUTTER	3296-29
14	Cover-Spring	55-9390
15	Cable-Clutch	55-9322
16	Adjuster-Clutch Cable	55-9380
17	Spring-Extension	55-9270
18	Machine Screw-Hex Hd.	61-8640
19	Washer	3-7501
20	Capscrew	322-9
21	Capscrew	322-3
24	Handle-Lower	55-9121-03
26	Rod-Chute Crank	55-9140
27	Spring-Compression	55-9440
28	Screw-Hex. Hd.	321-13
29	Support-Crank	55-9090-03
30	Nyliner	256-249
31	Push-On Speed Nut	3290-320
32	Chute Control Grip	40-8230
33	Knob	98-7134
34	Washer-PM	75-9130
35	Clamp-R	2412-112
36	Lock-Handle	98-2266
