> Roth / TORO > Hand operated > Snowthrower > Two stage > 1232 PowerShift > 630/38591 > 890000001 > Handle Assy.

Spare Parts Lists for Toro Roth / TORO Handle Assy.

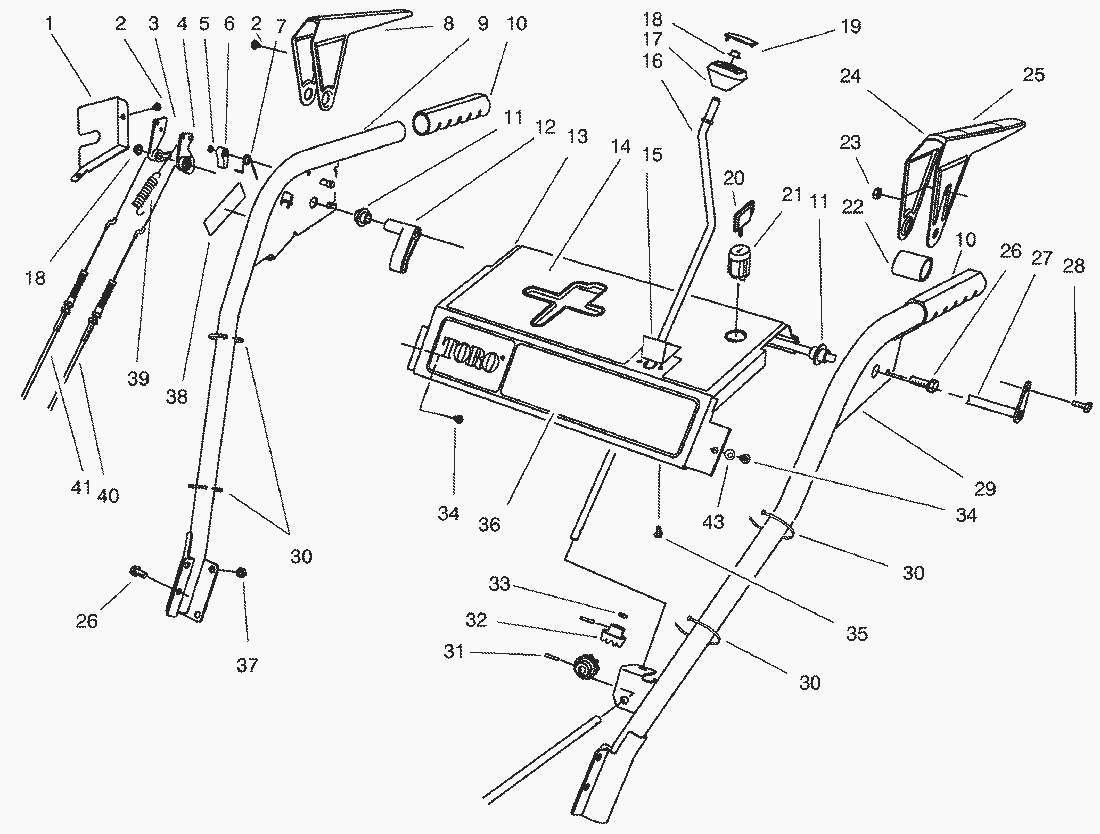

spare parts list


pos.decriptionspare part number
1Cover-Lever Lock63-2170
2Screw2210-250
3Tang-Locking62-0300
4Cam-Release62-0290
5Ring-Retaining32151-66
6Latch-Lock62-0280
7Spring-Torsion63-2910
8Lever-Impeller62-1050
9Handle-R.H.62-1381
10Handlegrip66-7850
11Bushing-Lever62-1070
12Lever-Trip62-1640
13Panel-Control66-8100
14Decal-Panel Top (Model No. 38580 Only)66-6850
Decal-Panel Top (Model No. 38543 Only)94-2578
15Plate-Guide62-1490
16Rod-Chute Crank63-2160
17Knob-Chute Control62-1320
18Push-On Speed Nut3290-320
19Cover-Knob62-1520
20Key-Ignition63-8360
21Switch40-5940
22Spacer-Traction Lever63-3380
23Nut3296-2
24Lever-Traction62-1060
25Decal-Lever (Model No. 38510)63-3050
26Screw-Wash. Hd., Tap.32144-14
27Rod-Cross63-2030
28Screw3290-359
29Handle-L.H.66-8091
30Tie Wrap3290-378
31Roll Pin32121-50
32Gear-Universal62-1460
33Washer-Rubber62-1230
34Self Tapping Screw32104-76
35Screw-Pan Hd.94-6961
36Decal-Panel Front93-8029
