> Roth / TORO > Hand operated > Snowthrower > Two stage > 1232 PowerShift > 630/38591 > 890000001 > Housing Assy. (Cont.)

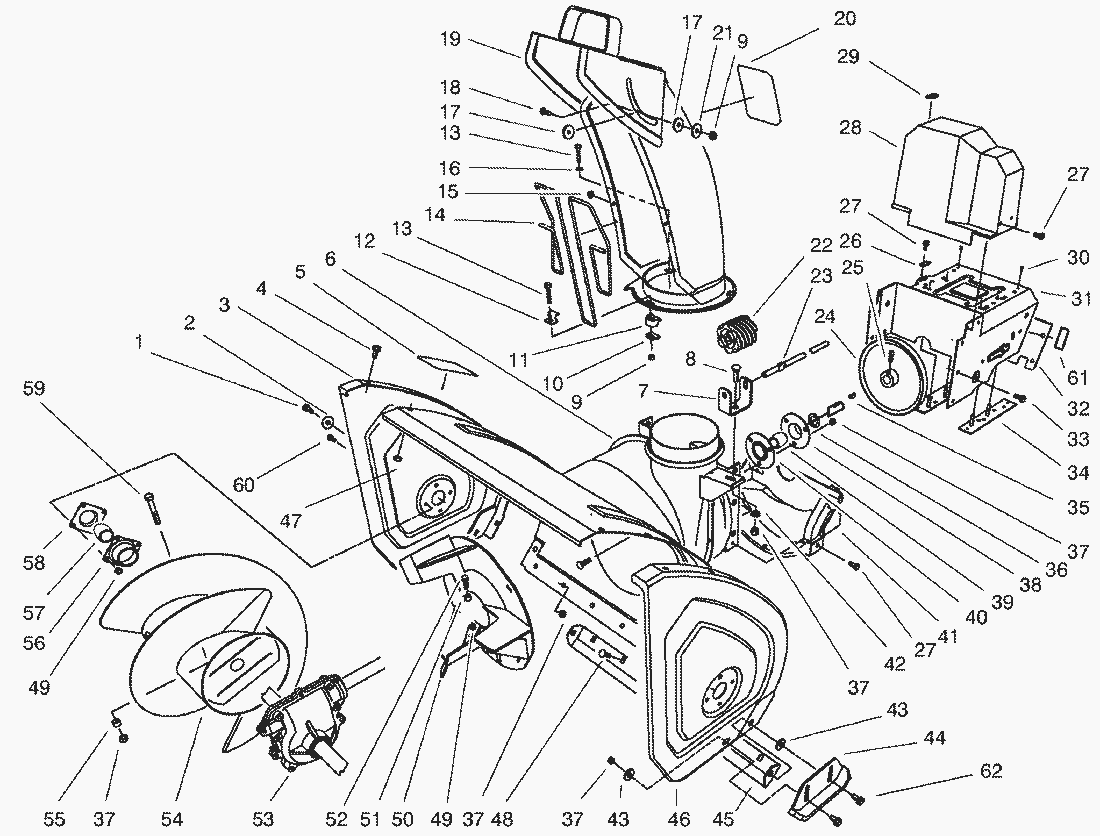

Spare Parts Lists for Toro Roth / TORO Housing Assy. (Cont.)




spare parts list


pos.decriptionspare part number
28Cover-Belt (Upper)63-2080
29Cover-Cable63-3290
30Rivet3269-23
31Frame-Engine66-6980
32Cover-Engine Frame62-1440
33Screw-Wash. Hd., Tap.32144-14
34Plate-L.H.66-4110
Plate-R.H.66-4100
35Key Woodruff3257-23
36Thrust Washer252-80
37MUTTER3296-29
38Bearing Flange Rear26-6120
39Bearing-Impeller63-3450
40Bearing Flange Front26-6110
41Cover-Lower Belt68-8410
42Washer3256-23
43Washer52-2861
44Skid Assembly74-1440
45Blade-Scraper66-7760
46Plate-Side L.H.66-7831
47Nut-Lock3296-47
48Screw-Carriage3230-23
49MUTTER3296-42
50Impeller66-7920
51Spacer66-8010
52Screw-Cap Hex. Hd.321-44
53Auger Gearbox Assembly74-1562
54Auger-R.H.(Model No. 38565)68-7452
Auger-L.H.(Model No. 38565)68-7462
55Spacer Auger Hub25-5090
56Flange Bearing Front20-0990
57Bearing20-0980
58Flange Bearing Rear20-1000
59Screw-Cap Hex. Hd.322-12
60SCHRAUBE321-3
61Decal-Caution/Instructions68-9390
62Screw-Hex. Flange Hd.3234-5
Impeller Bearing Assembly (Incl. Ref.12-8789
