> Roth / TORO > Hand operated > Snowthrower > Two stage > 1332 PowerShift > 630/38087 > 200000001 > Handle and Control Assy. (Cont.)

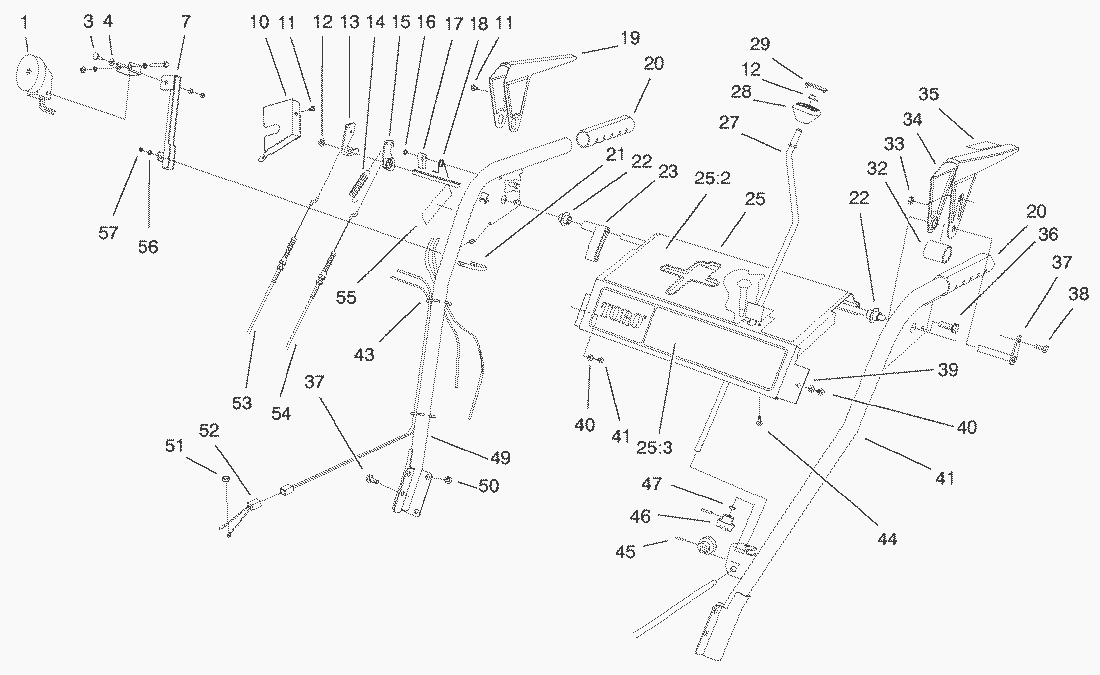

Spare Parts Lists for Toro Roth / TORO Handle and Control Assy. (Cont.)




spare parts list


pos.decriptionspare part number
44Screw-Pan Hd.94-6961
45Roll Pin32121-50
46Gear-Universal62-1460
47Washer-Rubber62-1230
49Handle ASM (only on: 38560)100-3597
49Handle ASM (only on: 38559)100-3598
492Decal-Warning (Model No. 38580 Only)66-6860
492Decal-Warning (Model No. 38543 Only)94-2575
50Nut-Lock3296-47
51Hex Nut3217-6
52Wire Assembly54-9810
53Cable-Impeller63-2700
54Cable-Traction63-2710
56Washer3256-23
57MUTTER3296-29
