> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 PowerShift > 630/38580 > 9000001 > Housing & Chute Assy. (Cont.)

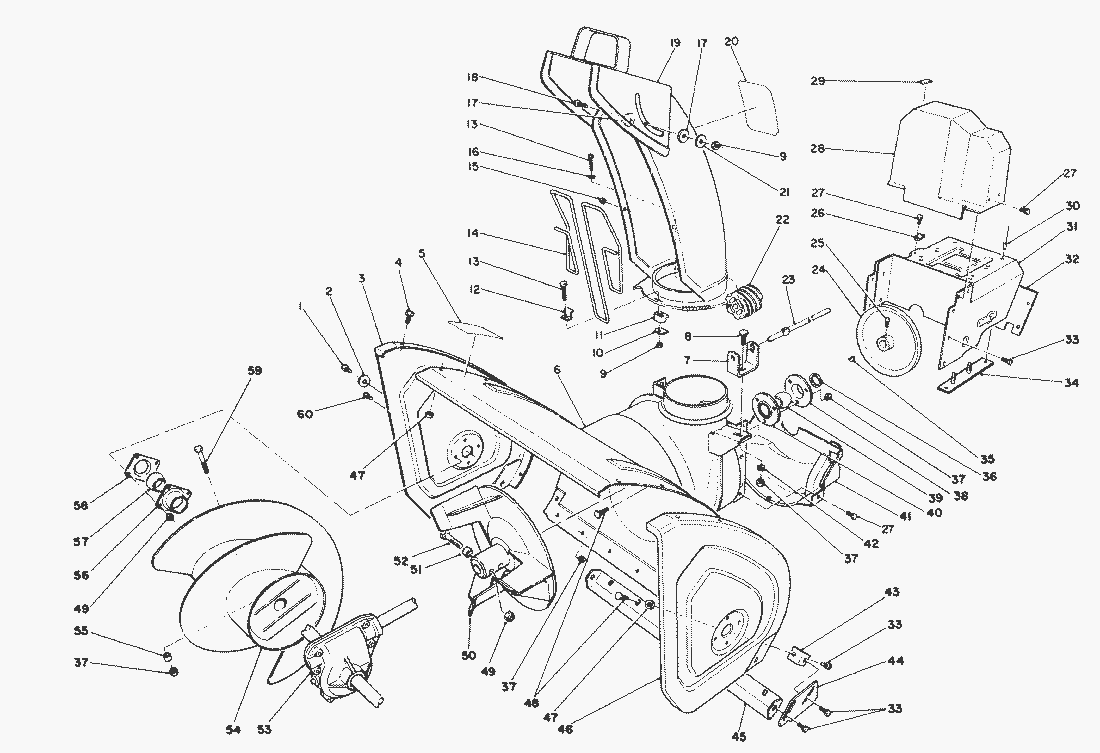

Spare Parts Lists for Toro Roth / TORO Housing & Chute Assy. (Cont.)




spare parts list


pos.decriptionspare part number
28Cover-Belt (Upper)63-2080
29Cover-Cable63-3290
30Rivet3269-23
31Frame-Engine66-7780
32Cover-Engine Frame62-1440
33Screw-Hex. Washer Hd.3234-7
34Plate-Engine Stud L.H.68-4150
Plate-Engine Stud R.H.68-4140
35Key Woodruff3257-23
36Thrust Washer252-80
37MUTTER3296-29
38
39Bearing-Impeller63-3450
40
41Cover-Belt (Lower)62-1400
42Washer3256-23
43Bracket-Skid62-1240
44Plate-Skid L.H.62-0980
Plate-Skid R.H.62-0990
45Blade-Scraper66-7760
46Plate-Side L.H.66-7830
47Nut-Lock3296-47
48Screw-Carriage3230-23
49MUTTER3296-42
50Impeller66-7920
51Spacer66-8010
52Screw-Cap Hex. Hd.321-44
53Auger Gearbox Assembly66-8022
54Auger-R.H.63-2752
Auger-L.H.63-2762
Auger-R.H.(Model No. 38565)68-7452
Auger-L.H.(Model No. 38565)68-7462
55Spacer Auger Hub25-5090
56Flange Bearing Front20-0990
57Bearing20-0980
58Flange Bearing Rear20-1000
59Bolt Auger17-7030
60SCHRAUBE321-3
Impeller Bearing Assembly (Incl. Ref.12-8789
