> Roth / TORO > Hand operated > Snowthrower > Two stage > 1132 PowerShift > 630/38580 > 9000001 > Transmission Assy. No. 66-8030 (Cont.)

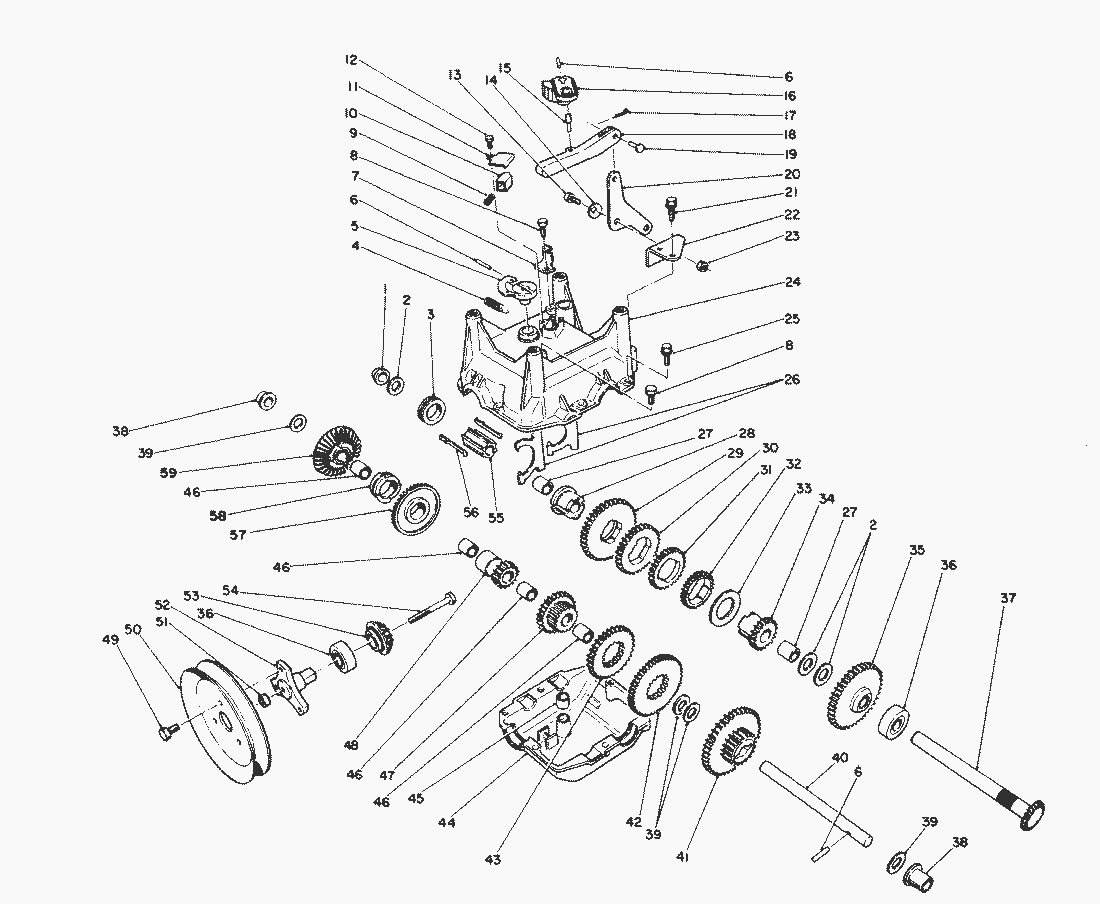

Spare Parts Lists for Toro Roth / TORO Transmission Assy. No. 66-8030 (Cont.)




spare parts list


pos.decriptionspare part number
45Bushing-Yoke29-9570
46Bushing-Intermediate62-1160
47Gear-26T68-4310
48Gear-15T62-0500
49Hex Washer Hd. Thread Forming Screw12-3270
50Pulley-Traction62-1310
51Flange Locknut32128-32
52Hub-Pulley62-0380
53Pinion-Bevel 19T62-0350
54Capscrew321-15
55Sleeve-Shift68-4320
56Key-Shift62-0310
57Gear-Bevel 36T67-5870
58Collar-Shift67-5880
59Gear-Bevel Reverse 36T67-5860
