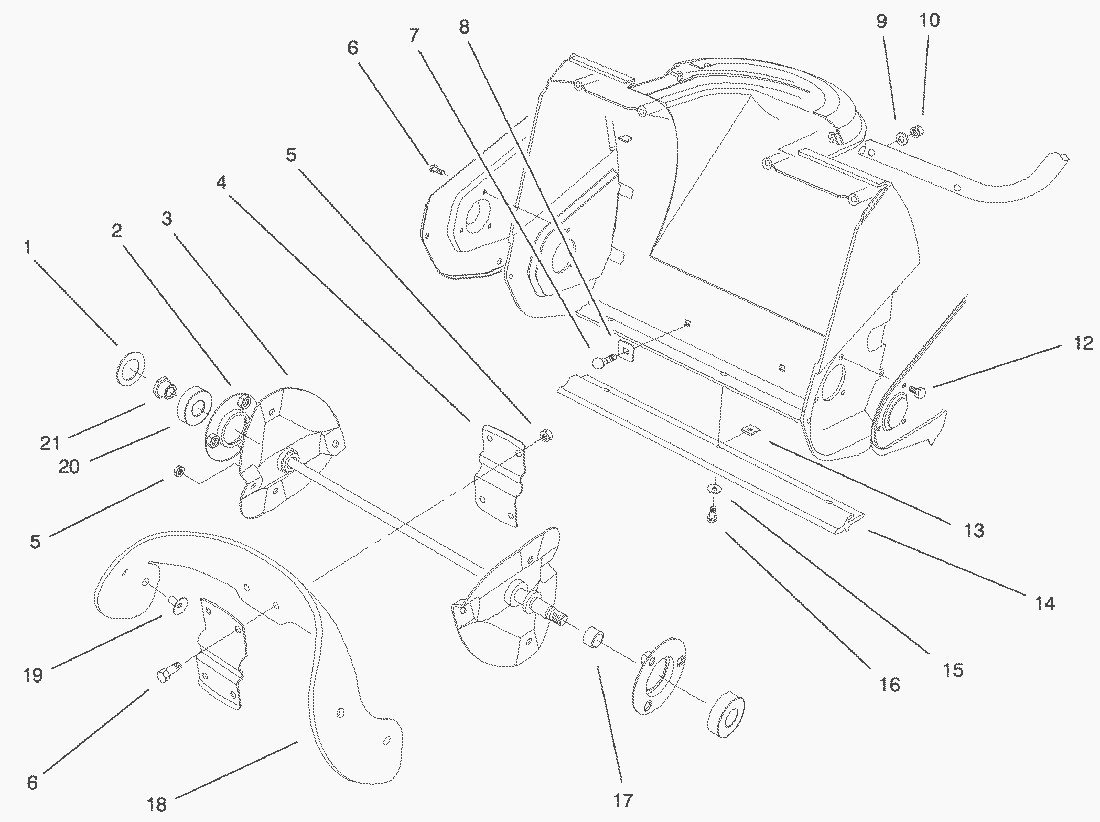

Spare Parts Lists for Toro Roth / TORO Impeller Assy.

pos.	decription	spare part number
1	Washer-Rubber	75-9180
2	Wa-Flange Bearing	75-9080-03
3	Wa-Rotor	75-8840-03
4	Support-Motor	75-8880-03
5	STOPMUTTER	3296-56
6	Screw-Hex Hd. Cap	3234-33
7	Screw-Carriage	3229-5
8	Washer-Square	75-9040
9	Washer	3-7501
10	MUTTER	3296-42
12	SCHRAUBE	321-3
13	U-Nut	32115-19
14	Scraper	75-8780
15	Washer	3256-14
16	Self Tapping Screw	32144-34
17	Spacer-Auger Shaft	75-8710
18	Blade-Rotor	84-1980
19	Screw-Countersunk Oval	84-1970
20	Ball Bearing	38-7820
21	Nut-Rotor Shaft	75-8690
