> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR Powerlite > 602/38183 > 200000001 > Starter Assy. (230 Volt)(Model No. 38183 only)

Spare Parts Lists for Toro Roth / TORO Starter Assy. (230 Volt)(Model No. 38183 only)

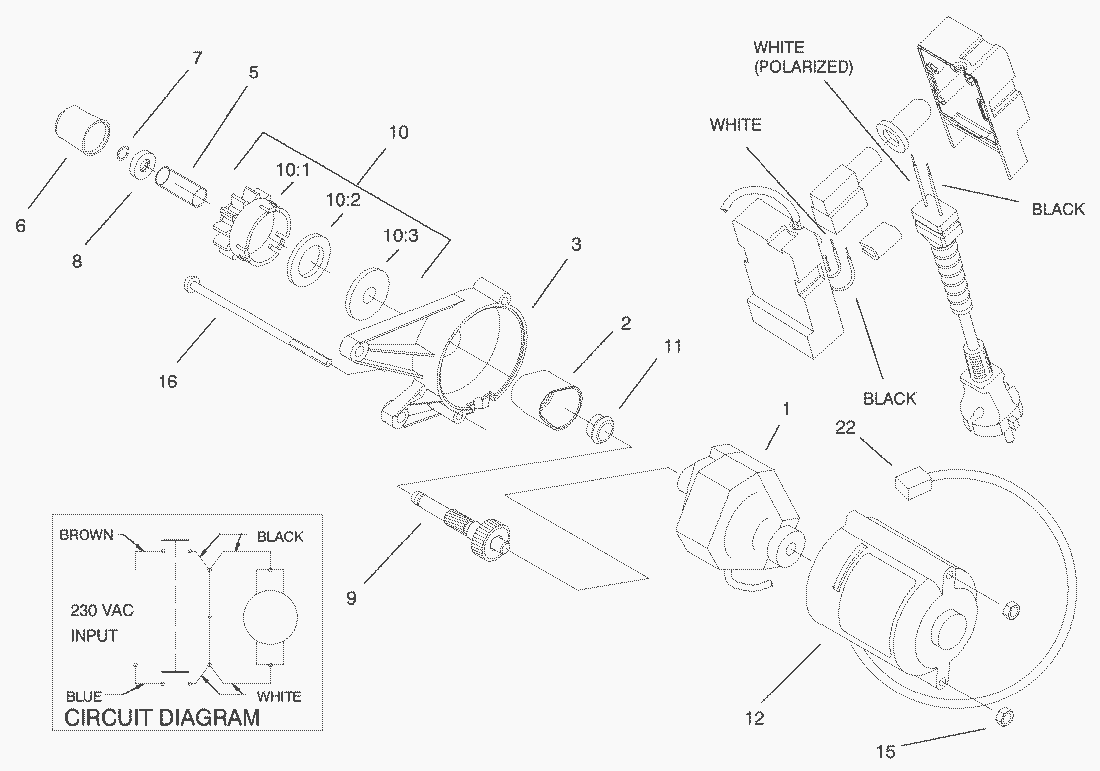

spare parts list


pos.decriptionspare part number
1ASM-Motor99-1917
2Cover-Gear70-7850
3Housing-Upper Starter (only on: 38183)100-3443
5Spring61-4690
6Cap-Pinion70-7890
7Retaining Ring61-4680
8Stop-Pinion (only on: 38183)100-2902
9Shaft & Gear Assembly92-6003
10Pinion Assembly84-5240
101Nut (only on: 38183)70-7790
102Pinion (only on: 38183)84-5230
103Ring-Rubber (only on: 38183)84-5440
11Bushing-upper70-7900
12Housing-Lower Starter (only on: 38183)100-3444
15Nut3296-2
16Screw-Phillips Pan Hd32144-101
22Strap-Motor (Model No. 38175 Only)250-7
