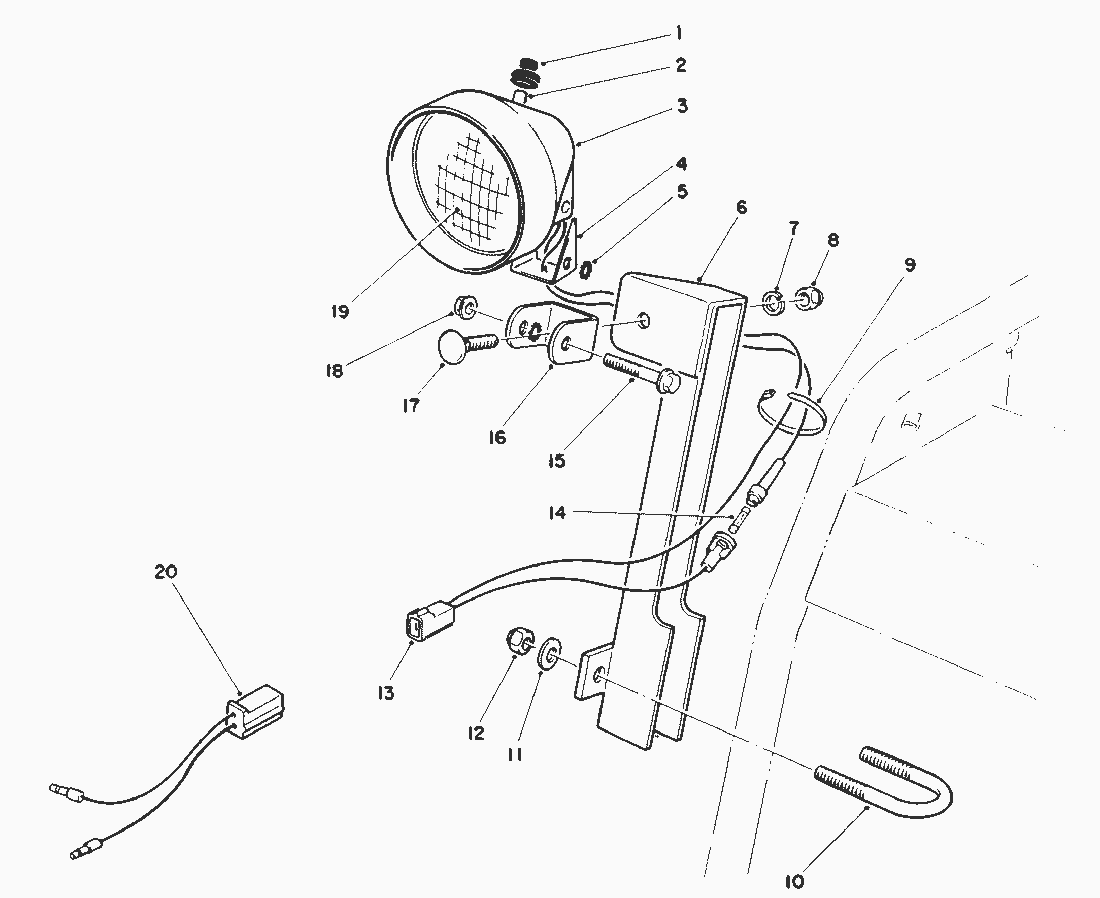

Spare Parts Lists for Toro Roth / TORO Light Kit No. 66-7950 (Optional)

Lists

pos.	decription	spare part number
1	Switch Boot	218-473
2	Switch Assembly	218-553
3	Bucket-Headlamp	218-552
4	Bracket	218-554
5	Lockwasher	3255-8
6	Mount-Lamp	68-7110
7	Washer-Lock	3253-21
8	Nut-Hex	3217-7
9	Tie Wrap	3290-378
10	Bolt-U	68-7140
11	Washer	3256-23
12	Nut-Lock	03296-29
13	Wire Assembly	218-555
14
15	Screw-Hex. Flange Hd.	322-13
16	Bracket-U	218-556
17	Bolt-Carriage	3231-2
18	Nut-Flange Lock	32128-35
19	Lens-Sealed Beam	218-16
20	Wire Assembly	68-9340
	Headlamp Assembly Complete (Incl. Ref.	54-9871
