> Roth / TORO > Hand operated > Snowthrower > Two stage > 624 PowerShift > 627/38505 > 0000001 > Traction Drive Assy.

Spare Parts Lists for Toro Roth / TORO Traction Drive Assy.

pos.	decription	spare part number
		67-9220

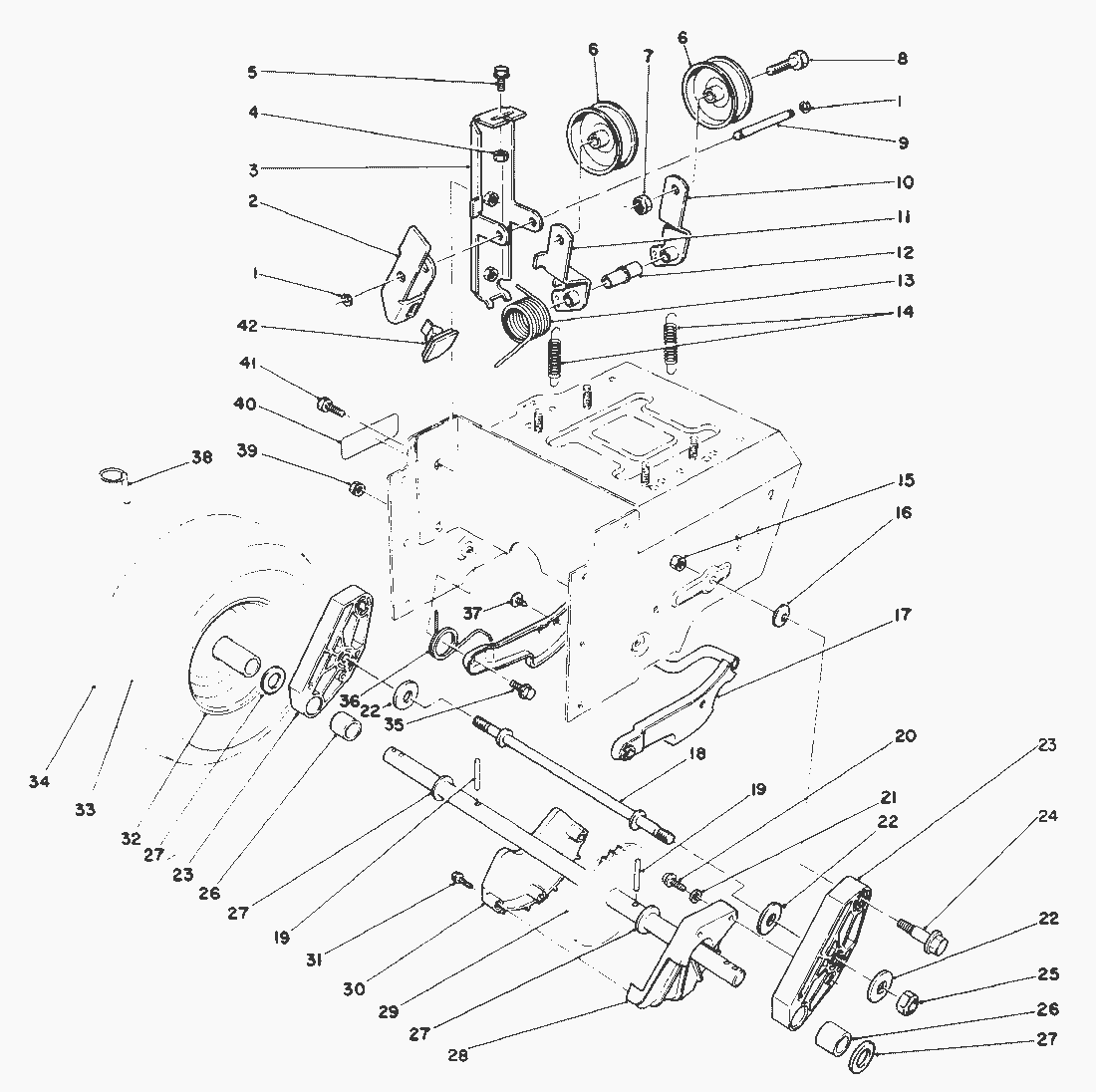

spare parts list

pos.	decription	spare part number
1	Ring-Retaining	32120-46
2	Arm-Brake	63-2810
3	Bracket-Idler Arm	63-2850
4	MUTTER	3296-42
5	Hex Flange Capscrew	3234-13
6	Pulley Idler	3-4244
7	Nut-Lock	3296-59
8	Screw-Cap Hex Hd.	323-7
9	Pin-Idler	62-0970
10	Arm-Traction Idler	62-1260
11	Arm-Impeller Idler	62-1280
12	Bushing-Idler	62-1210
13	Spring-Torsion	63-2880
14	Spring-Extension	63-2870
15	Locknut	3296-39
16	Washer-Belleville	3290-461
17	Latch-Arm	62-0470
18	Rod-Latch	66-7720
19	Roll Pin	32121-9
20	Screw Thread Forming	32144-4
21	Washer-Plain	3256-1
22	Washer	63-3340
23	Pivot Arm Assembly (Incl. Ref.	66-7740
24	Bolt-Shoulder	62-1330
25	Nut-Lock	3296-23
26	Bushing-Axle	63-2250
27	Thrust Washer	252-80
28	Guard-Chain L.H.	62-1010
29	Axle Assembly	63-2110
30	Guard-Chain R.H.	62-1000
31	Screw-Hex Flange Hd.	32104-118
32	Rim-Wheel	241-128
33	Tube	232-46
34	Tire	231-120
35	Bolt-Shoulder	5-2490
36	Spring-Torsion	63-2740
37	Fastener-Panel	3290-476
38	Klip Pin	3290-243
39	Nut-Lock	3296-47
40	Decal-Adjustment (Model No. 38500)	63-3460
	Decal-Adjustment (Model No. 38505)	63-3470
41	Screw-Hex. Washer Hd.	3234-7
42	Pad-Brake	66-8060
	Tire Chain Kit (Optional)	56-2700
