> Roth / TORO > Hand operated > Snowthrower > Single stage > CCR 2000 > 618/38181 > 4900001 > Recoil Starter Assy. Model No. 47PP3-4

Spare Parts Lists for Toro Roth / TORO Recoil Starter Assy. Model No. 47PP3-4

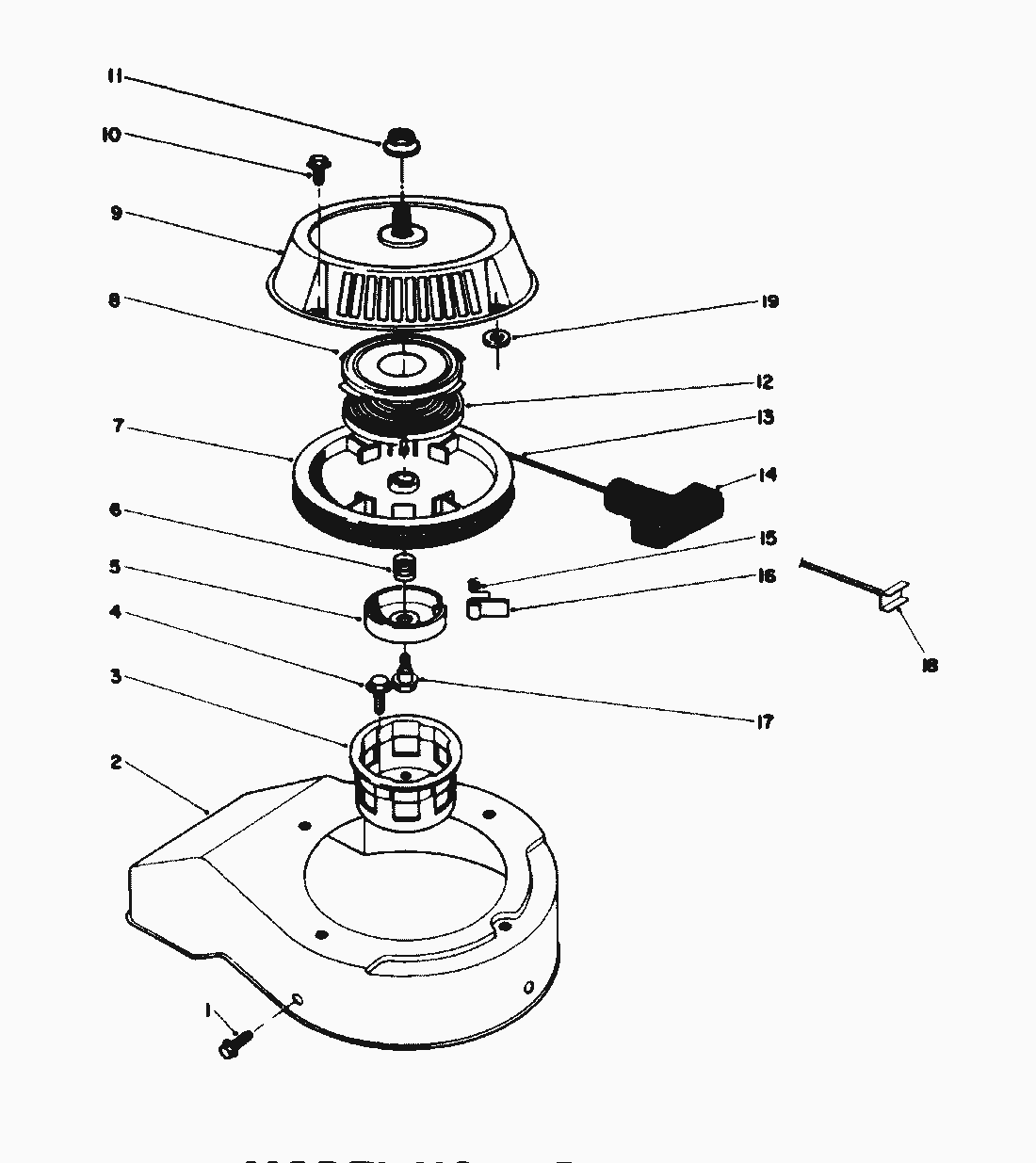

spare parts list


pos.decriptionspare part number
1SCHRAUBE53-1340
2Shroud-Blower81-0310
3STARTERGLOCKE81-1290
4Bolt82-1300
5MITNEHMERGEHAEUSE81-1250
6FEDER81-1240
7SEILSCHEIBE81-1210
8
9Case-Recoil81-0290
10Bolt81-0390
11Nut-Hex81-0300
12
13STARTERSEIL81-1270
14STARTERGRIFF M.SEILKLEMME81-1630
15FEDER81-1220
16MITNEHMER81-1230
17SCHRAUBE81-1260
18STARTERGRIFF M.SEILKLEMME81-5760
19Spacer55-9620
RUECKLAUFSTARTER KPL.81-0280
STARTERFEDER INCL.HALTER81-2300
