Recoil Starter No. 590479

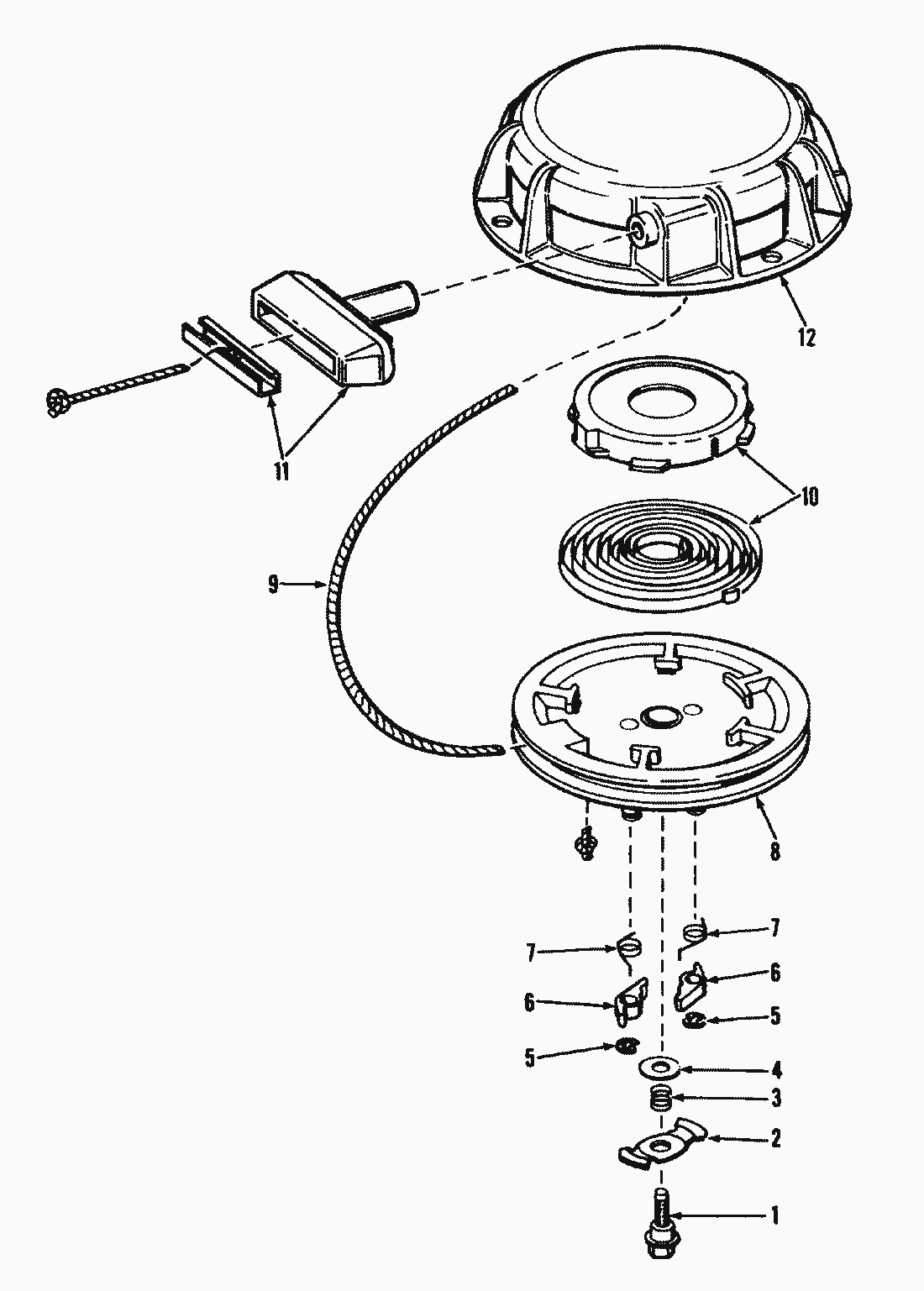

Spare Parts Lists for Toro Roth / TORO Recoil Starter No. 590479
pos.
decription
spare part number
1
Screw, Center
590480
2
Cam, Dog
590481
3
Spring, Brake
590482
4
Washer, Brake
32024
5
Ring, Retainer
590483
6
Dog
590484
7
Spring, Dog
590485
8
Pulley
590486
9
Rope, Starter
590456
10
Spring & Keeper Assy.
590487
11
Handle Assy., Starter
590387
12
Housing Assy., Starter
590488
