> Roth / TORO > Hand operated > Snowthrower > Two stage > 824 > 612/38080 > 4000001 > Snow Cab Assy. Model 42-3380

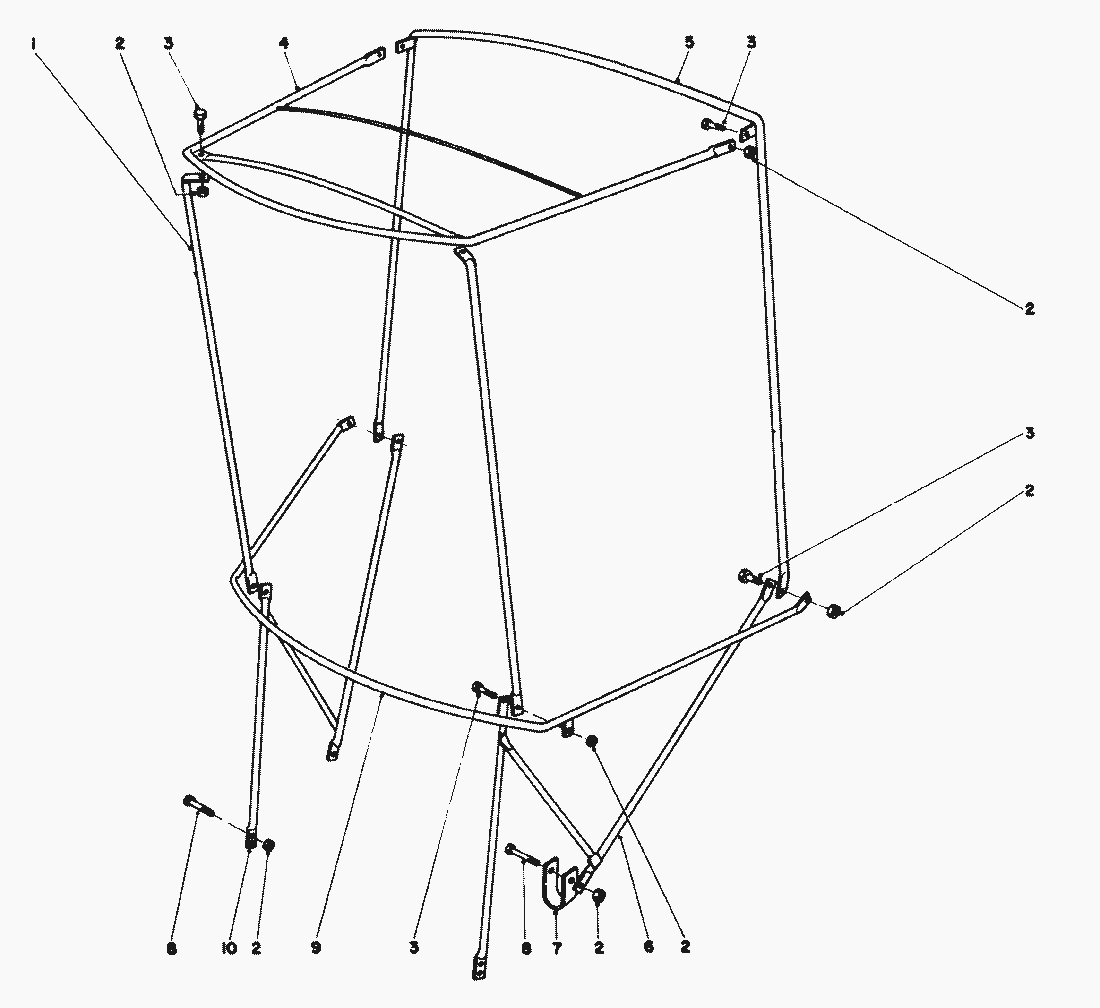

Spare Parts Lists for Toro Roth / TORO Snow Cab Assy. Model 42-3380




spare parts list


pos.decriptionspare part number
1Front Corner Post12-8040
2Locknut32146-17
3Capscrew321-4
4Top Frame12-8010
5Rear Vertical Bow12-8030
6Attaching Bracket L.H.42-4060
7U Clamp12-8050
8Capscrew321-11
9Horizontal Curved Bow12-8020
10Attaching Bracket R.H.42-4050
Vinyl Cover42-4070
