> Roth / TORO > Hand operated > Snowthrower > Two stage > 824 > 612/38080 > 5000001 > Starter Engine110V Kit No. 37-4810 (Canada only)

Spare Parts Lists for Toro Roth / TORO Starter Engine110V Kit No. 37-4810 (Canada only)




pos.decriptionspare part number
Cord, Extension32450A

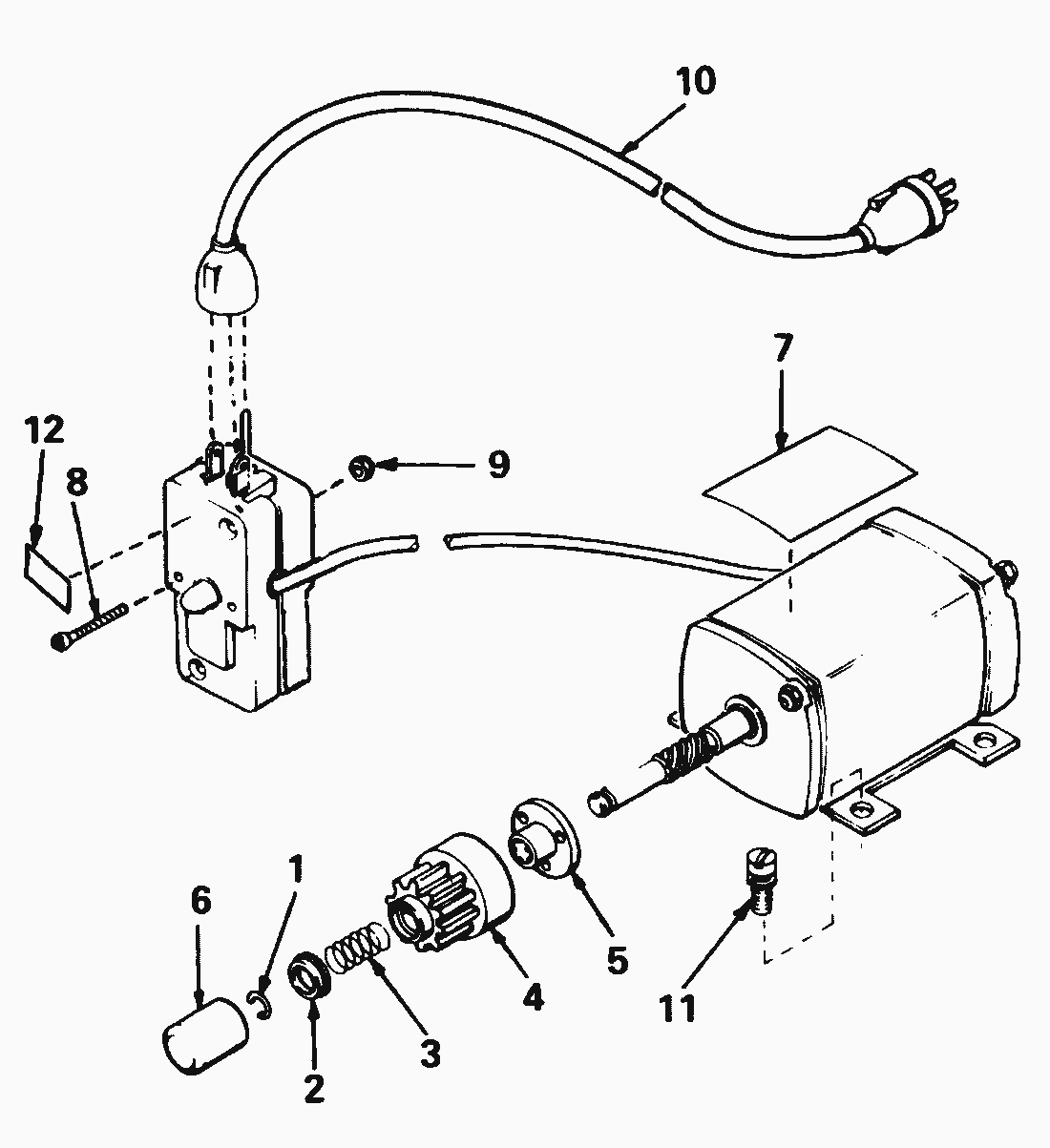

spare parts list


pos.decriptionspare part number
1Ring, Retaining33842
2Retainer, Spring33430
3Spring, Anti-drift33431
4Gear33432
5Nut, Engaging33433
6Cover, Dust33451
7Decal34180
8Screw, Hex Hd. Self Tap650741
9Nut & Lockwasher650742
11Screw, Fil. Hd. Sems30063
12Decal34161
