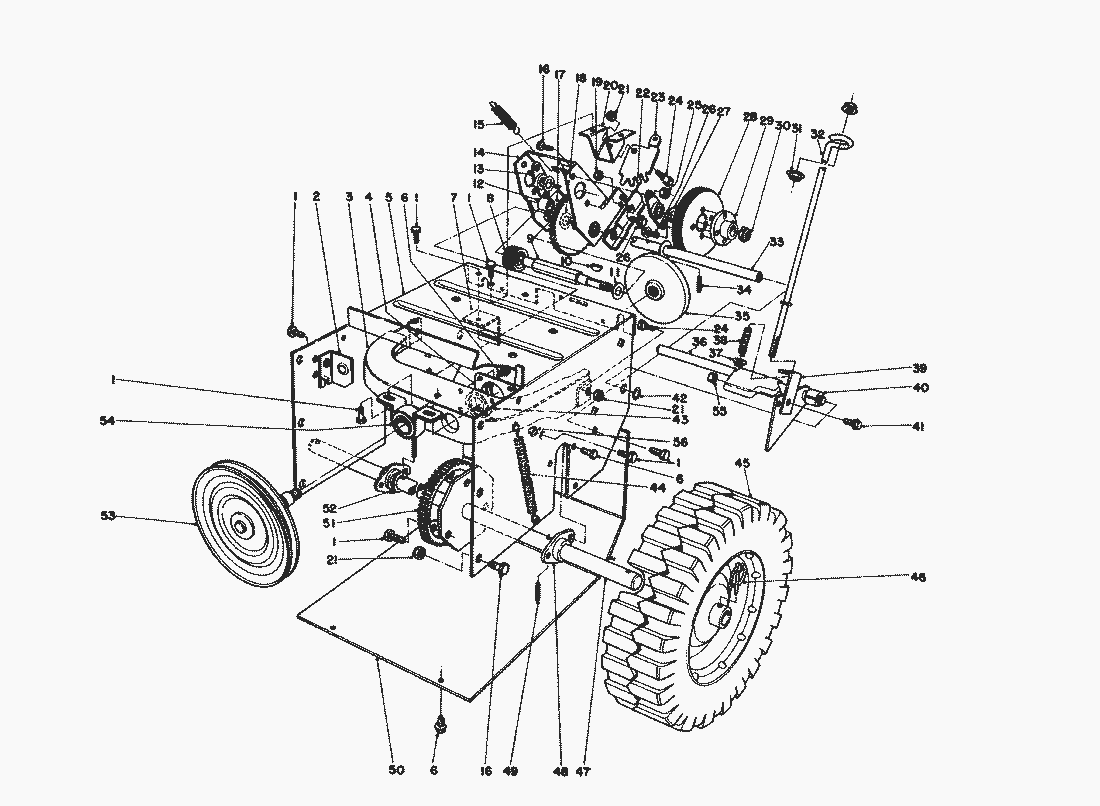

Spare Parts Lists for Toro Roth / TORO Traction Assy.

pos.	decription	spare part number
		37-9160

pos.	decription	spare part number
1	Thread Forming Screw	32144-11
2	Mount-Clutch Rod Front	37-9060
3	Friction Plate Frame	37-6740
4	Cup-Bearing	37-6730
5	Traction Frame	37-8900
6	Hex Washer Hd. Thread Forming Screw	12-3270
7	Mount-Clutch Rod Rear	37-9070
8	Sliding Gear	37-6500
9	Hex Shaft	37-6780
10	Key	3257-24
11	Washer-Friction Wheel Shaft	5-7570
12	Bushing	256-86
13	Bearing-Friction Wheel	20-1620
14	Bracket-Sliding	39-1230
15	Spring-Traction Disengage	37-8880
16	Hex Hd. Capscrew	322-2
18	Thrust Washer	10-9280
19	Locknut	3296-16
20	Mount-Quadrant Gear	37-8790
21	MUTTER	3296-29
22	Cam Receiver	39-1250
23	Quadrant Gear	37-8800
24	Shoulder Bolt	37-8770
25	Locknut	32152-1
26	Self Tapping Screw	11-9760
27	Thrust Washer	36-4790
28	Friction Wheel	37-6570
29	Hub-Friction Wheel Mount	39-1520
30	Locknut	3296-48
31	Flange Locknut	32128-33
32	Lower Traction Rod	39-3060
33	Shaft-Pivot	37-6760
34	Roll Pin	32121-45
35	Friction Plate	38-0800
36	Traction Engagement Assy.	43-7310
37	Hex Flange Locknut	32128-10
38	Spring-Compression	38-4520
39	Bracket-Traction	38-4490
40	Spacer	40-9680
41	Shoulder Screw	40-8350
42	Retaining Ring	32151-61
43	Ball Bearing	38-7820
44	Spring-Friction Plate Frame	37-8870
45	Wheel Assembly	38-1400
46	Klip Pin	3290-243
47	Axle Shaft	37-6970
48	Axle Bearing	37-6850
49	Roll Pin	32121-31
50	Bottom Cover	37-6830
51	Axle Gear	37-6520
52	Thrust Washer	3-8664
53	Pulley & Shaft	40-8190
54	Bushing Assembly	38-4470
55	MUTTER	3296-42
56	Nut-Cap	32111-8
	Tire Chain Kit (Optional)	37-7010
	Loose Parts	11-5529
