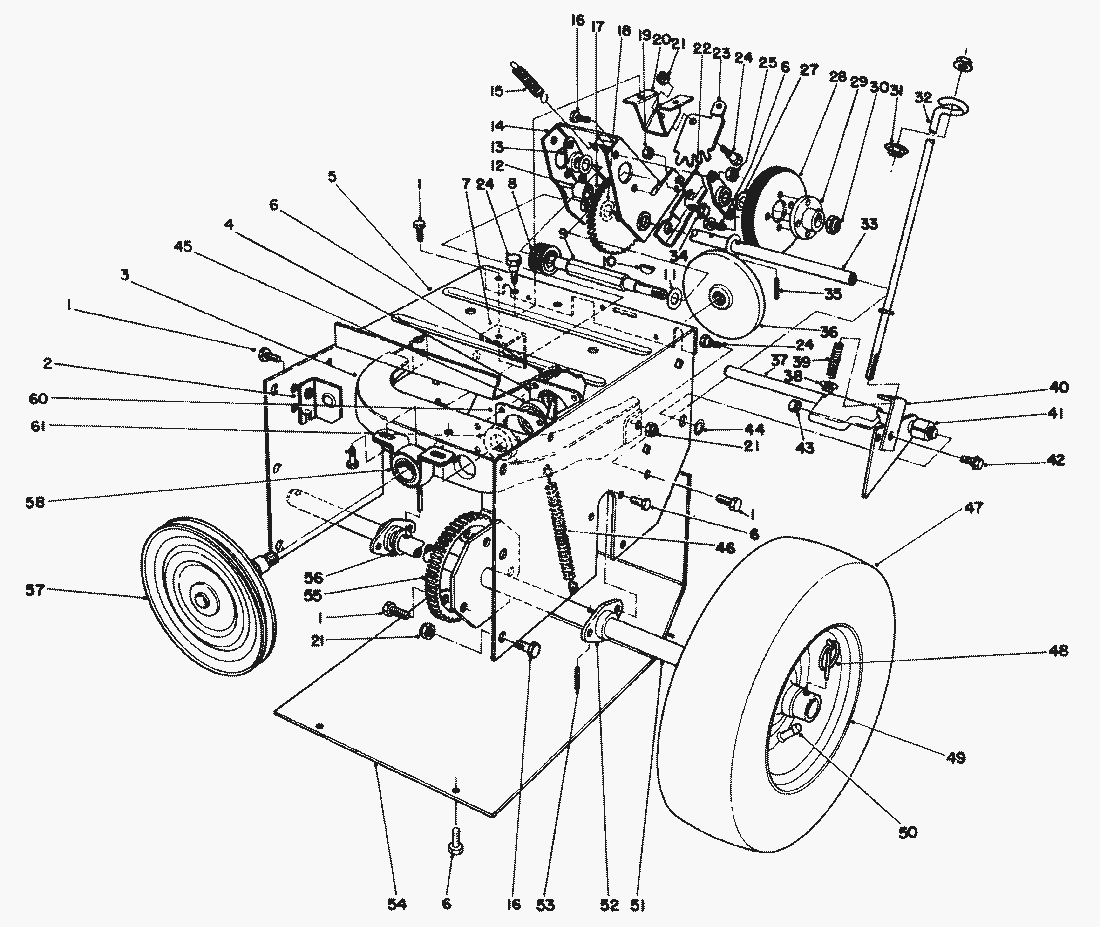

Traction Assy. (Cont.)
Spare Parts Lists for Toro Roth / TORO Traction Assy. (Cont.)
pos.
decription
spare part number
49
Rim
241-126
50
Tube
232-49
51
Axle Shaft
37-6970
52
Axle Bearing
37-6850
53
Roll Pin
32121-31
54
Bottom Cover
37-6830
55
Axle Gear
37-6520
56
Thrust Washer
3-8664
57
Pulley & Shaft
40-8190
58
Bushing Assembly
38-4470
59
Thread Forming Screw
32144-11
60
Spacer-Bearing
74-1480
61
Gasket-Bearing
71-1470
Tire Chain Kit (Optional)
62-7630
