> Petrol engines > Kawasaki > FA / FC > FA 76 > Air cleaner, Muffler

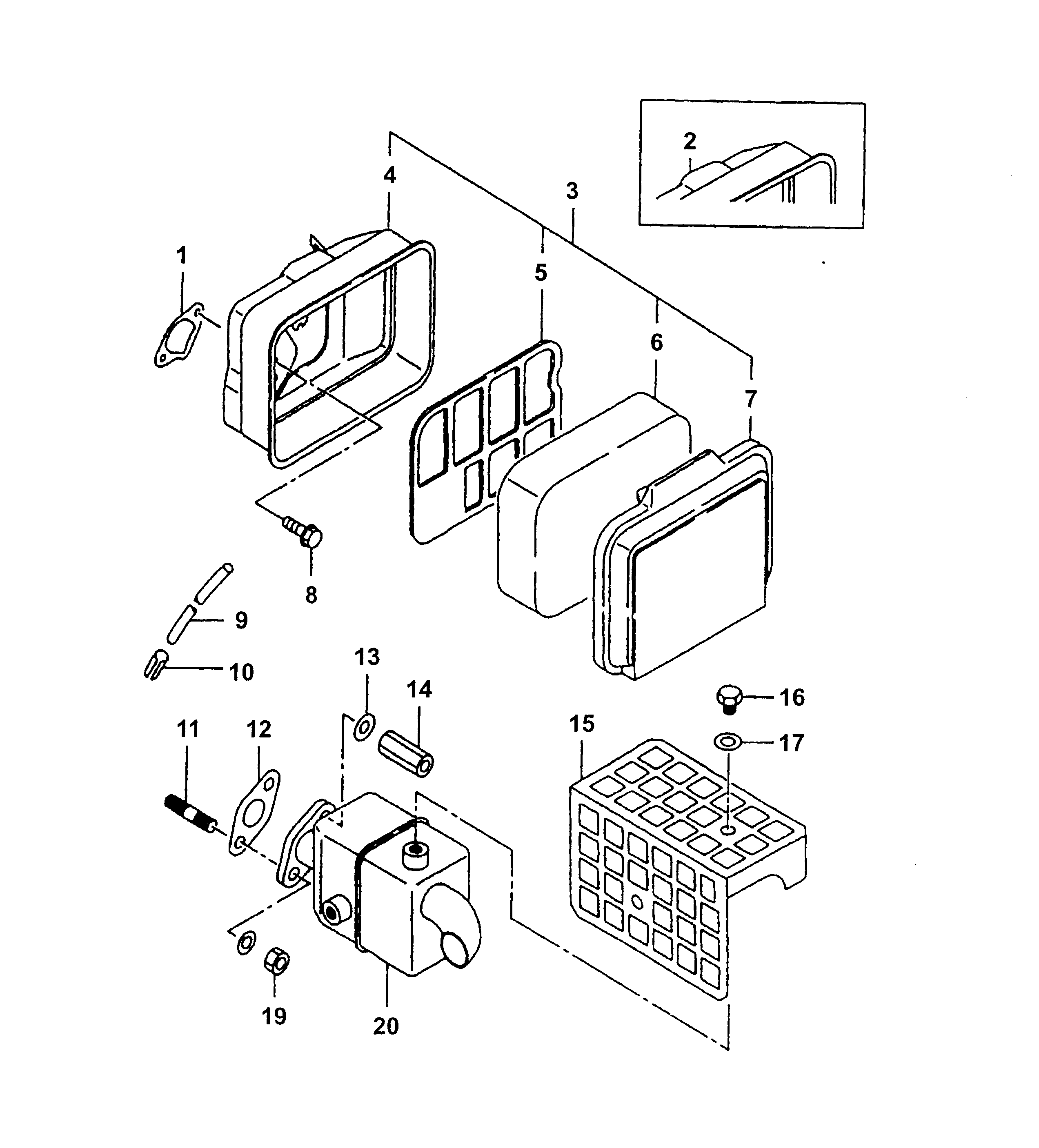

Spare Parts Lists for Wolf Petrol engines Air cleaner, Muffler




spare parts list


pos.decriptionspare part number
1Seal2050501
2Case2055404
3Air Filter Assy.2055050
4Case2053404
5Plate-Carburetor2050403
6Filter Element2050402
7Cover2053401
8Screw2050405
9Line-Fuel2050407
10Pipe2050408
11Stud Bolt2050206
12Seal2050501
12Gasket2055405
13Washer2050504
14Nut2055114
15Muffler Guard2055517
16Screw2055518
17Washer2050504
19Nut2050513
20Muffler2055500
