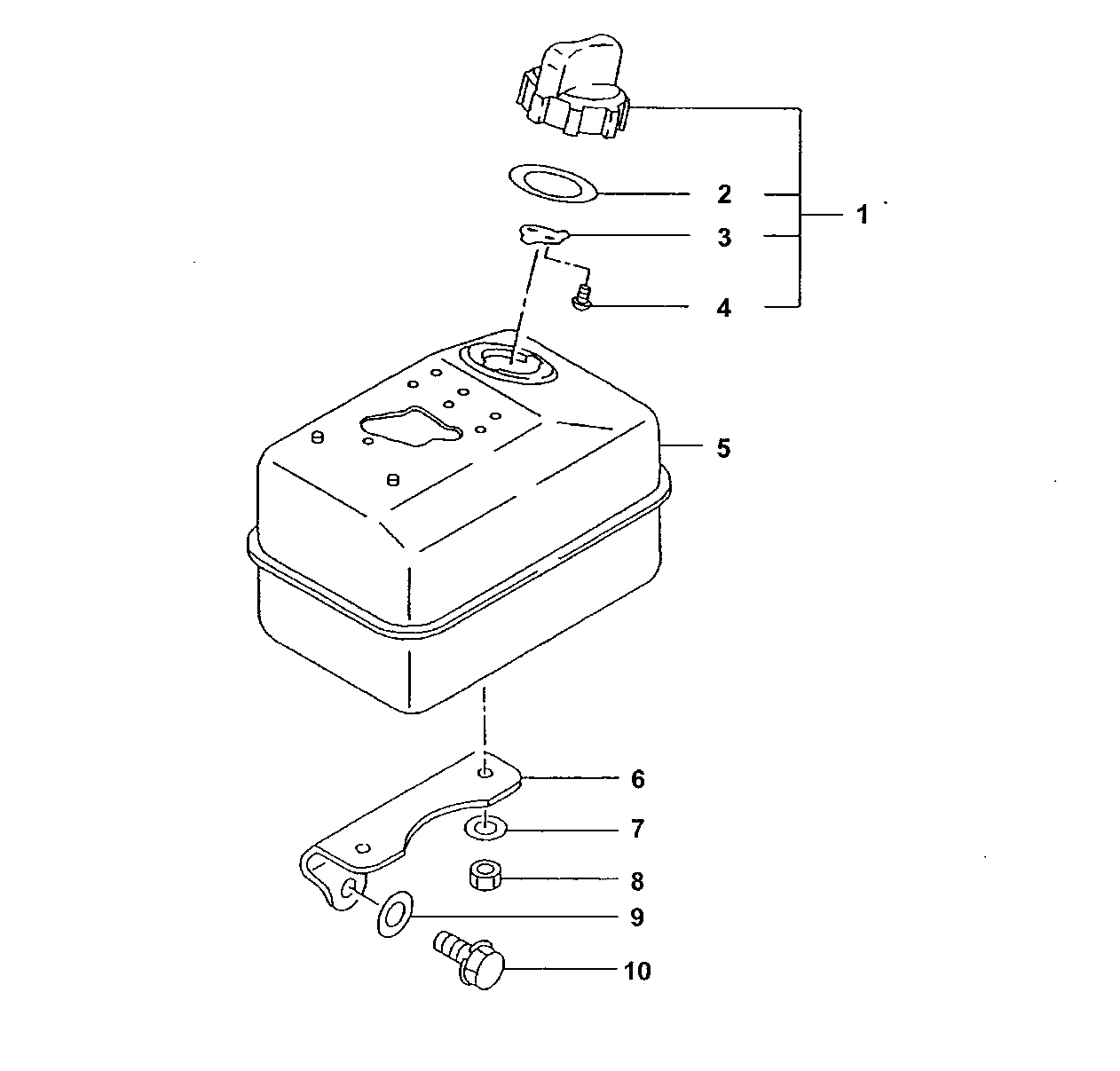

| pos. | decription | spare part number | |
| 1 | Cap-Assy-Tank | 2053507 | |
| 2 | Seal | 2050406 | |
| 3 | Spring | 2050509 | |
| 4 | Screw | 2050510 | |
| 5 | Fuel Tank | 2055506 | |
| 6 | Bracket-Tank | 2055512 | |
| 7 | Washer | 2050514 | |
| 8 | Nut | 2055114 | |
| 9 | Washer | 2055516 | |
| 10 | Screw | 2050515 |
