Spare Parts Lists for Wolf Mowers Axle, Wheels, Height-adjustment

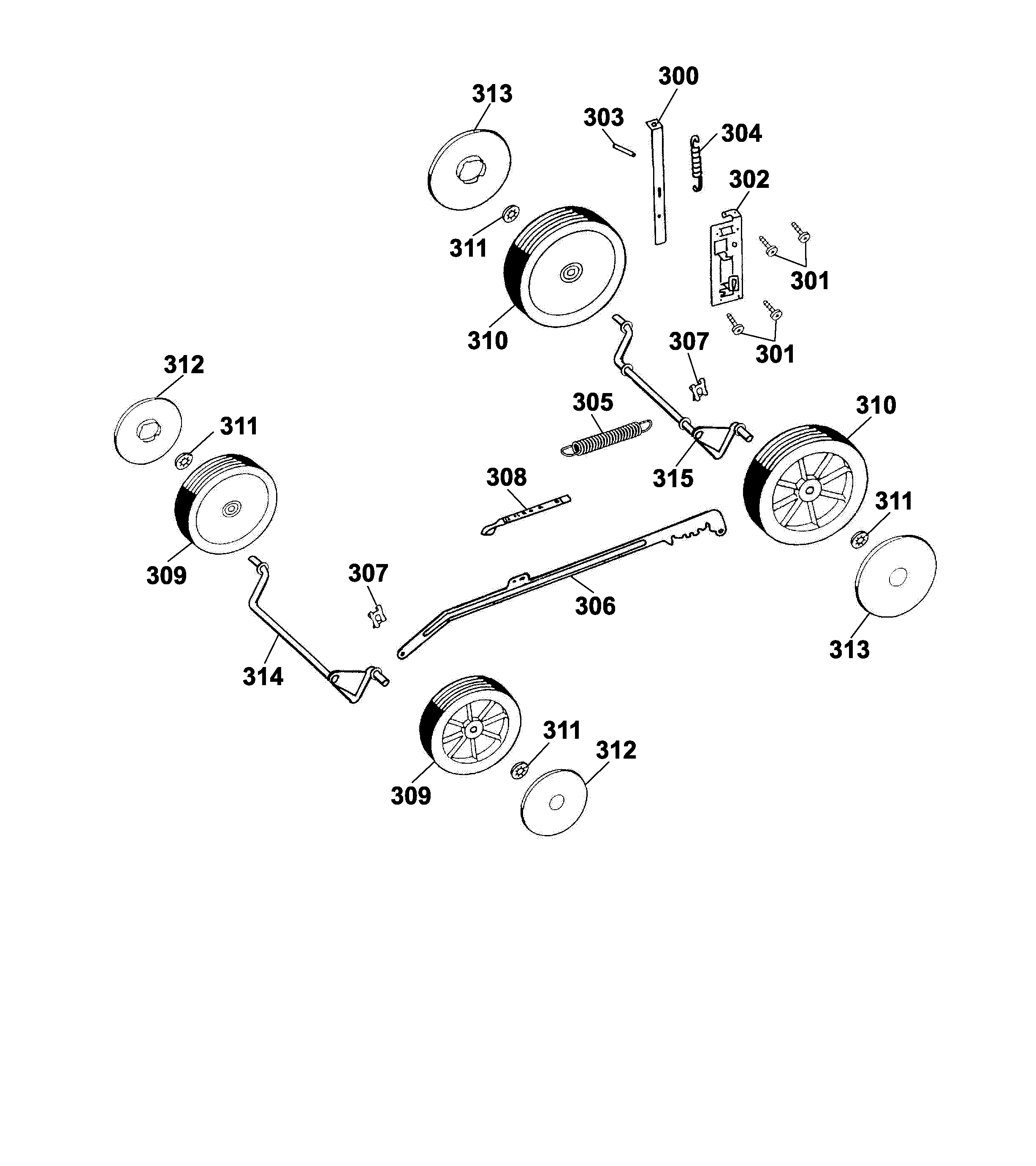

spare parts list


pos.decriptionspare part number
300Plate (Zmv)4961 512
301Screw0010 931
302Guiding4001 110
303Dowel Pin0018 878
304Tension Spring4961 514
305Tension spring connecting rod4961 107
306Rod4001 504
307Retaining Clip0020 981
308Height-Position Indicator4001 306
309Wheel ø 170 mm6440 050
310Wheel ø 200 mm6440 051
***Bearing4960 516
311Speedfix Retainer0020 700
312Cover ø 170 mm6450 520
313Cover ø 200 mm6450 530
314Axle Front4020 032
315Axle Rear4020 034
