> Mowers > Petrol > Electric start / Touch 'n Mow > Power Edition > Power Edition 40 TM > Motor, Blade

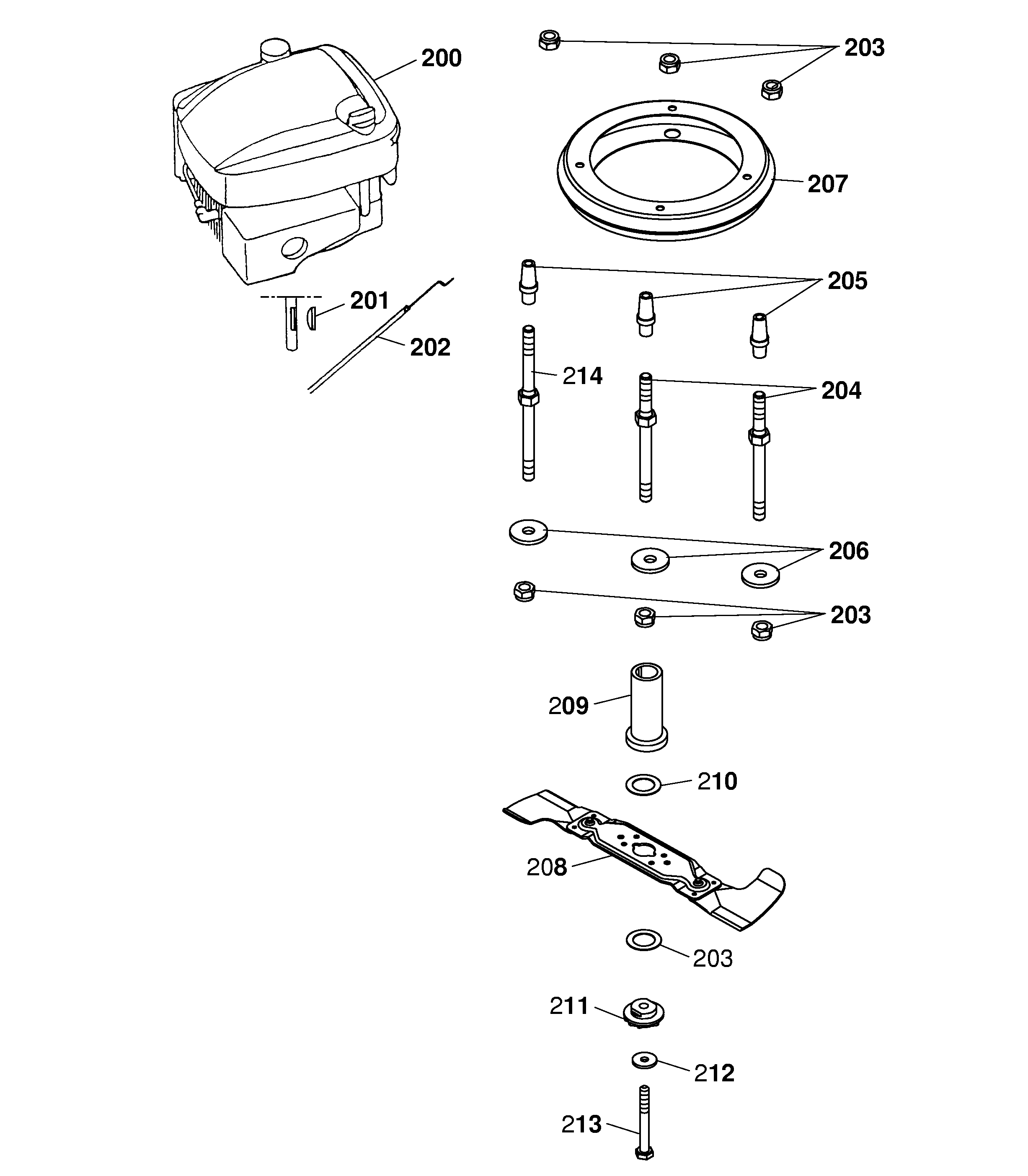

Spare Parts Lists for Wolf Mowers Motor, Blade




spare parts list


pos.decriptionspare part number
200Motor2075 000
201Key0029 131
202Bowden Wire Brake4004 054
203Hex. Nut0016 312
204Stud Bolt, Short4004 170
205Spacer4004 172
206Washer0017 111
207Ring6340 022
208Cutter Bar Compl.4001 094
***Replacement blades VI-W (1 pair)4350 040
209Coupling4004 402
210Clutch Facing4005 403
211Coupling Disk4004 401
212Friction Washer0017 105
213Screw0010 264
214Stud Bolt, Long4004 171
