> Mowers > Electro > Without drive from 40 cm on > series 2 > 2.40 E > Axle, Wheels, Height-adjustment

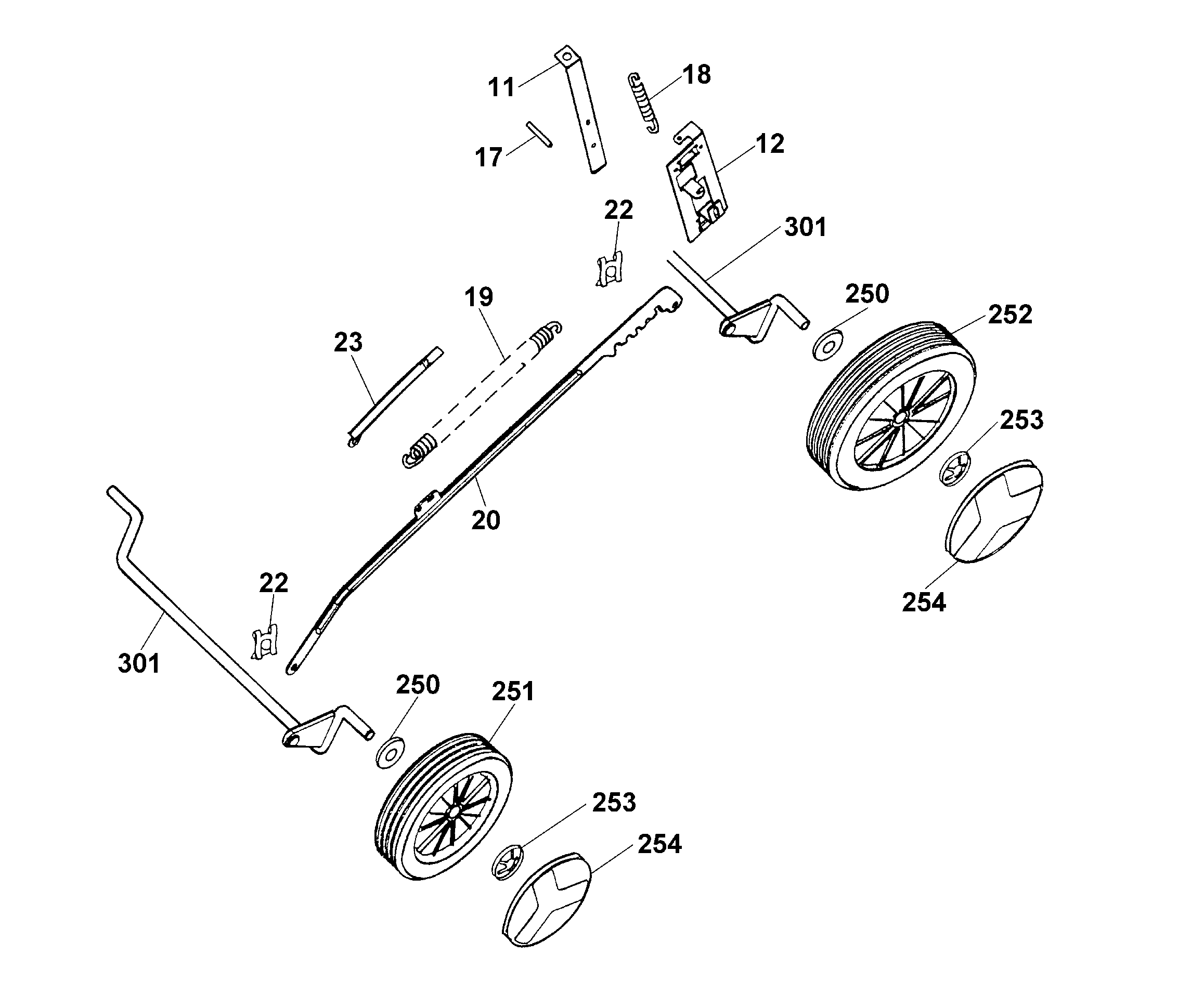

Spare Parts Lists for Wolf Mowers Axle, Wheels, Height-adjustment




spare parts list


pos.decriptionspare part number
9Plate (Zmv)4961 512
12Guiding4955 030
17Dowel Pin0018 878
18Tension Spring4961 514
19Tension spring connecting rod4961 107
20Rod4961 504
22Retaining Clip0020 981
23Height-Position Indicator4961 307
250Washer0017 112
251Wheel, 170Mm Dia.4961 040
252Wheel, 200Mm Dia.4961 041
253Speedfix Retainer0020 698
254Cover ø 170 mm4936 535
255Cover ø 200 mm4961 525
301Axle4961 011
