> Mowers > Electro > Without drive from 40 cm on > series 2 > 2.40 E > Chassis

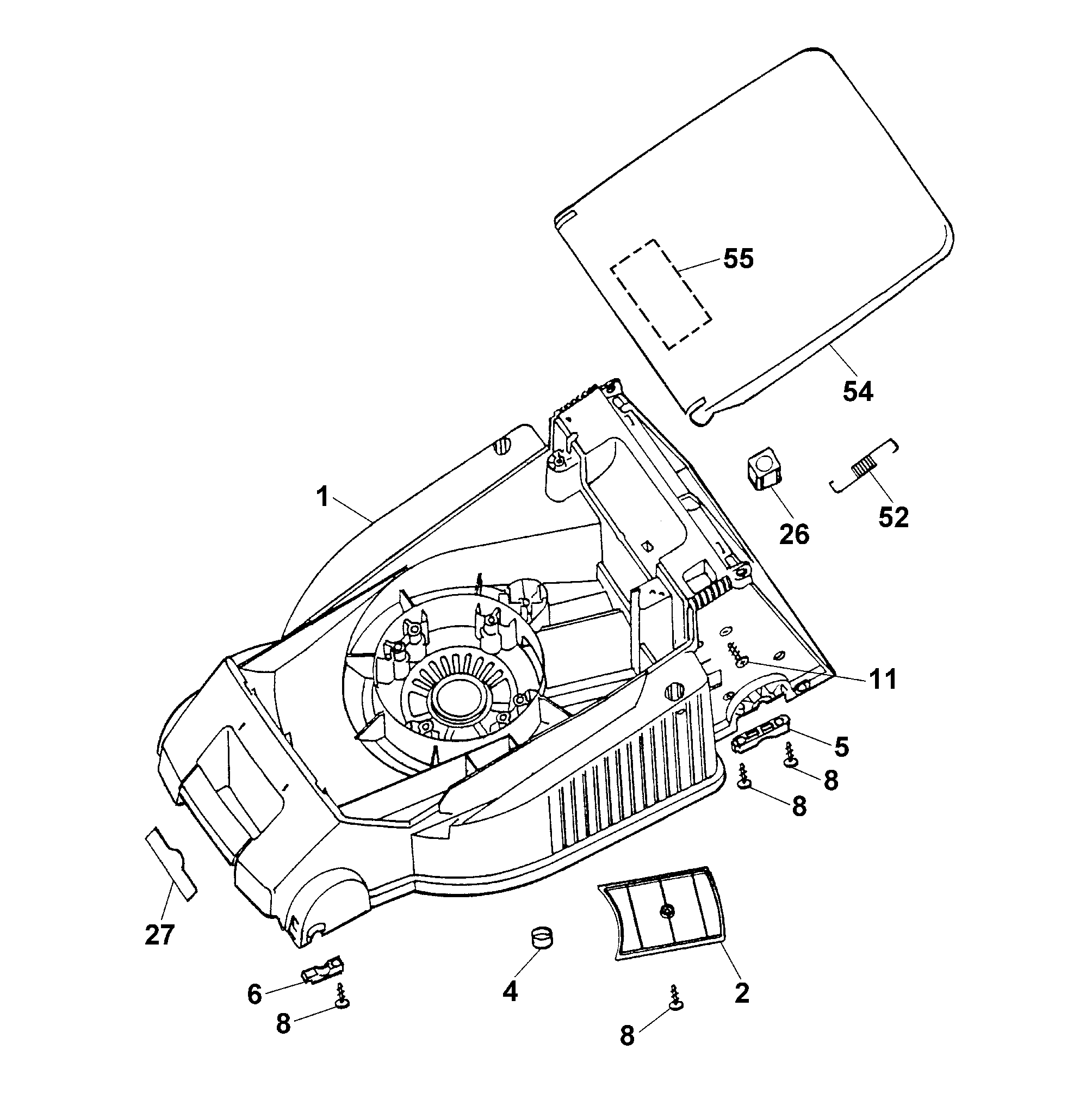

Spare Parts Lists for Wolf Mowers Chassis




spare parts list


pos.decriptionspare part number
1Chassis4961 300
2V-Belt Cover4961 324
4Plug4961 305
5Shell, Rear4961 313
6Front Support Shell4961 312
8Screw0012 631
11Screw0010 931
26Button4961 304
27Wolf-Garten - Label0051 115
52Tension Spring4961 106
54Rear flap, yellow4961 302
55Safety Label0051 225
