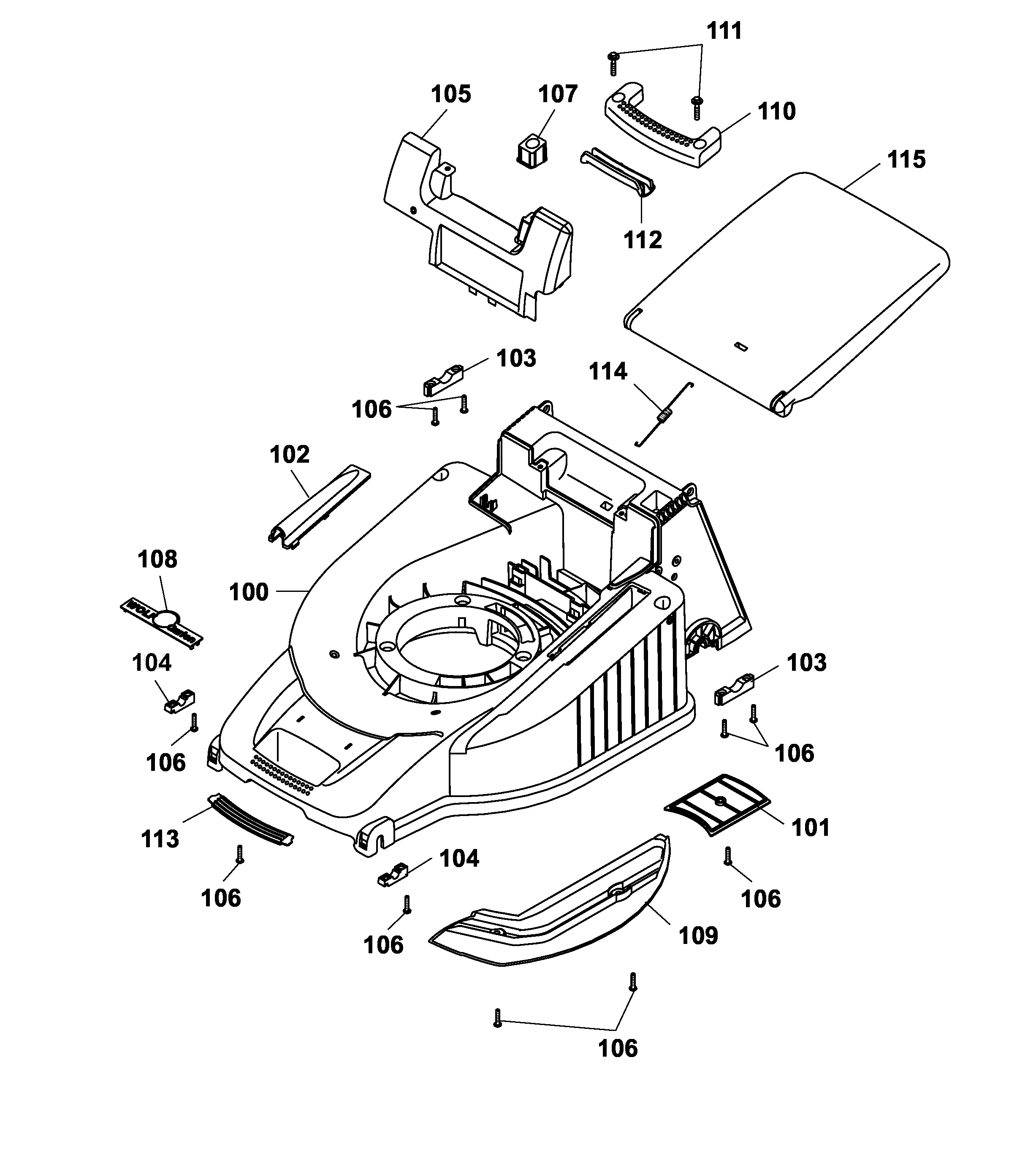

Spare Parts Lists for Wolf Mowers Chassis




spare parts list


pos.decriptionspare part number
100Chassis4005 320
101V-Belt Cover4961 324
102Air conduction4601 315
103Shell, Rear4961 313
104Front Support Shell4961 312
105Chassis Cover4001 310
106Screw0012 631
107Button4961 304
108Wolf-Garten - Label0051 115
109Wind Tunnel Cover4601 311
110Rear Carrying Handle4601 303
111Screw0012 639
112Rear Handle Spill4601 308
113Front Handle Spill4601 309
114Tension Spring4961 108
115Rear Flap4628 322
