Spare Parts Lists for Wolf Mowers Motor, Blade

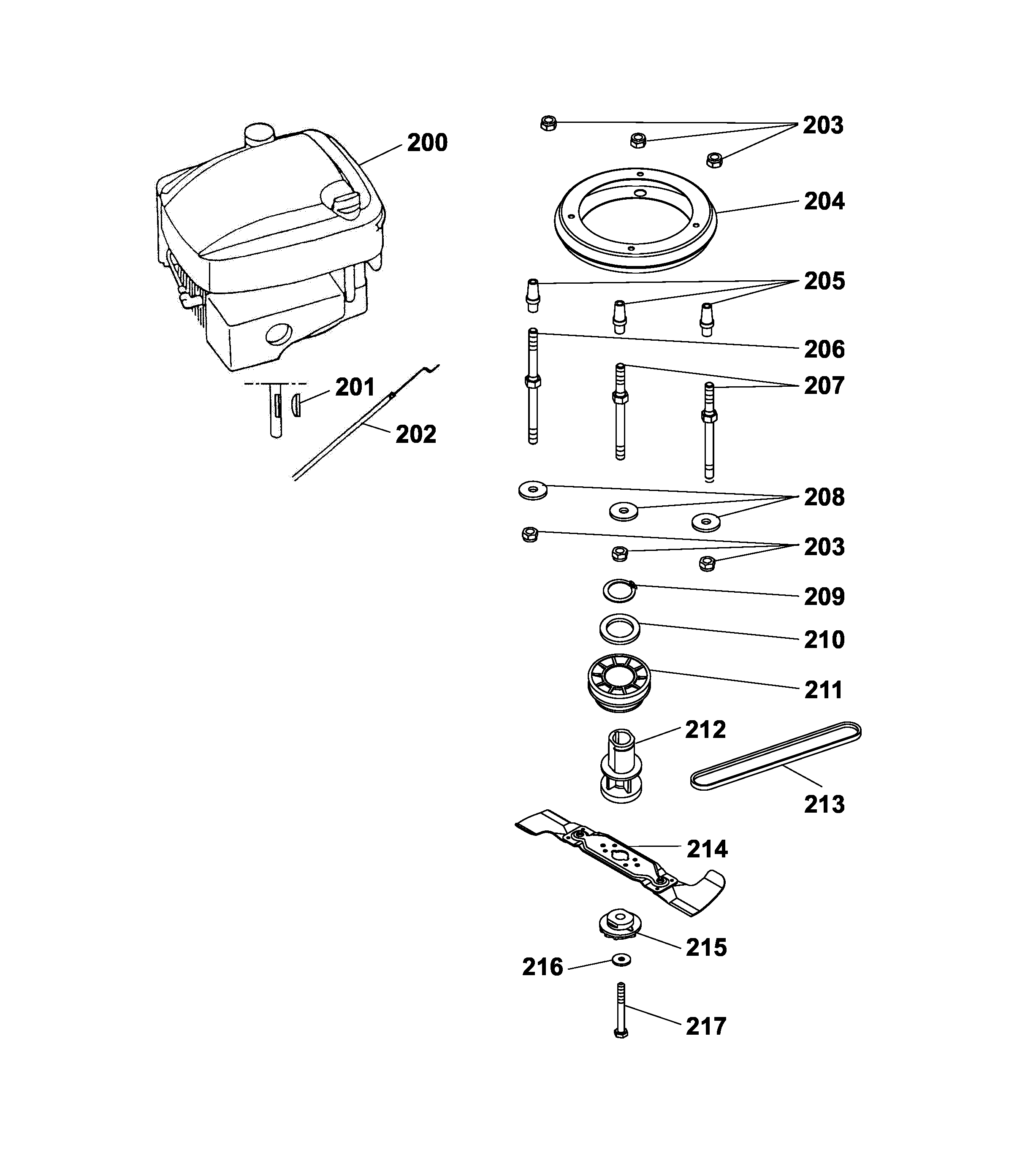

spare parts list


pos.decriptionspare part number
200Motor2075 000
201Key0029 131
202Bowden Wire Driving4016 055
203Hex. Nut0016 312
204Ring6340 022
205Spacer4601 312
206Stud Bolt, Long4004 171
207Stud Bolt, Short4004 170
208Washer0017 111
209Retainer-E Ring0021 057
210Washer0017 406
211V-Belt Pulley1081 105
212Coupling Bushing4618 405
213Drive Belt 42Cm0039 221
214Cutter Bar Compl.4001 094
***Replacement blades VI-W (1 pair)4350 040
215Driver4605 408
216Friction Washer0017 105
217Screw0010 264
