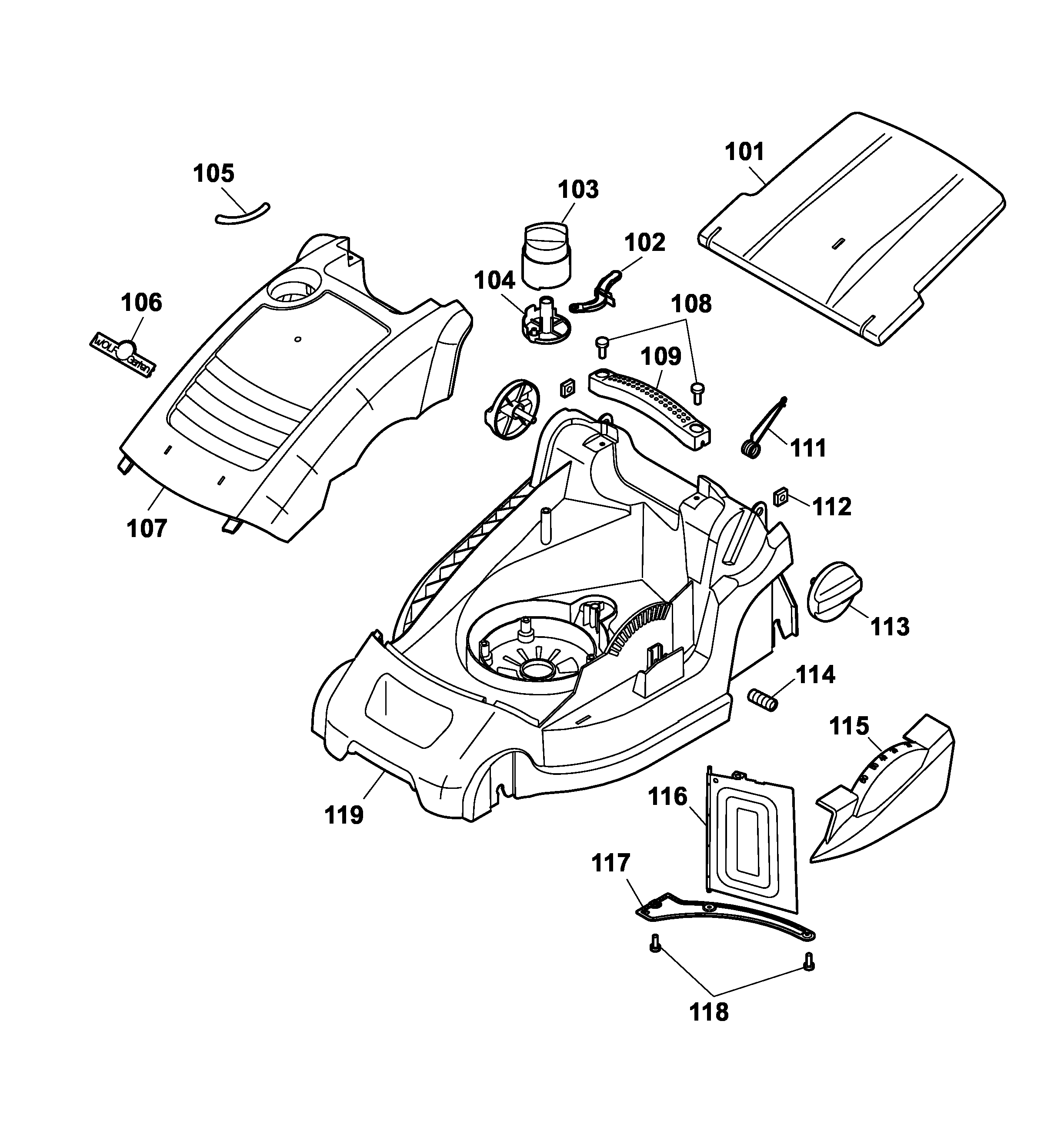

Spare Parts Lists for Wolf Mowers Chassis




spare parts list


pos.decriptionspare part number
101Rear Flap4907 302
102Couple4907 333
103Mulch Knob Upper4907 330
104Mulch Knob Lower4907 332
105Label "mulch-collect"4907 206
106Wolf-Garten - Label0051 115
107Cover Plate4907 304
108Screw0012 639
109Carrying Handle4907 306
111Spring4907 106
112Nut0016 409
113Handwheel4907 032
114Spring4907 113
115Cover4907 308
116Mulch Cap4907 038
117Sheet4907 110
118Screw0012 625
119Chassis4907 300
