> Mowers > Electro > Without drive up to 38 cm > Compact Plus > Compact Plus 37 E > Handlebar, Switch

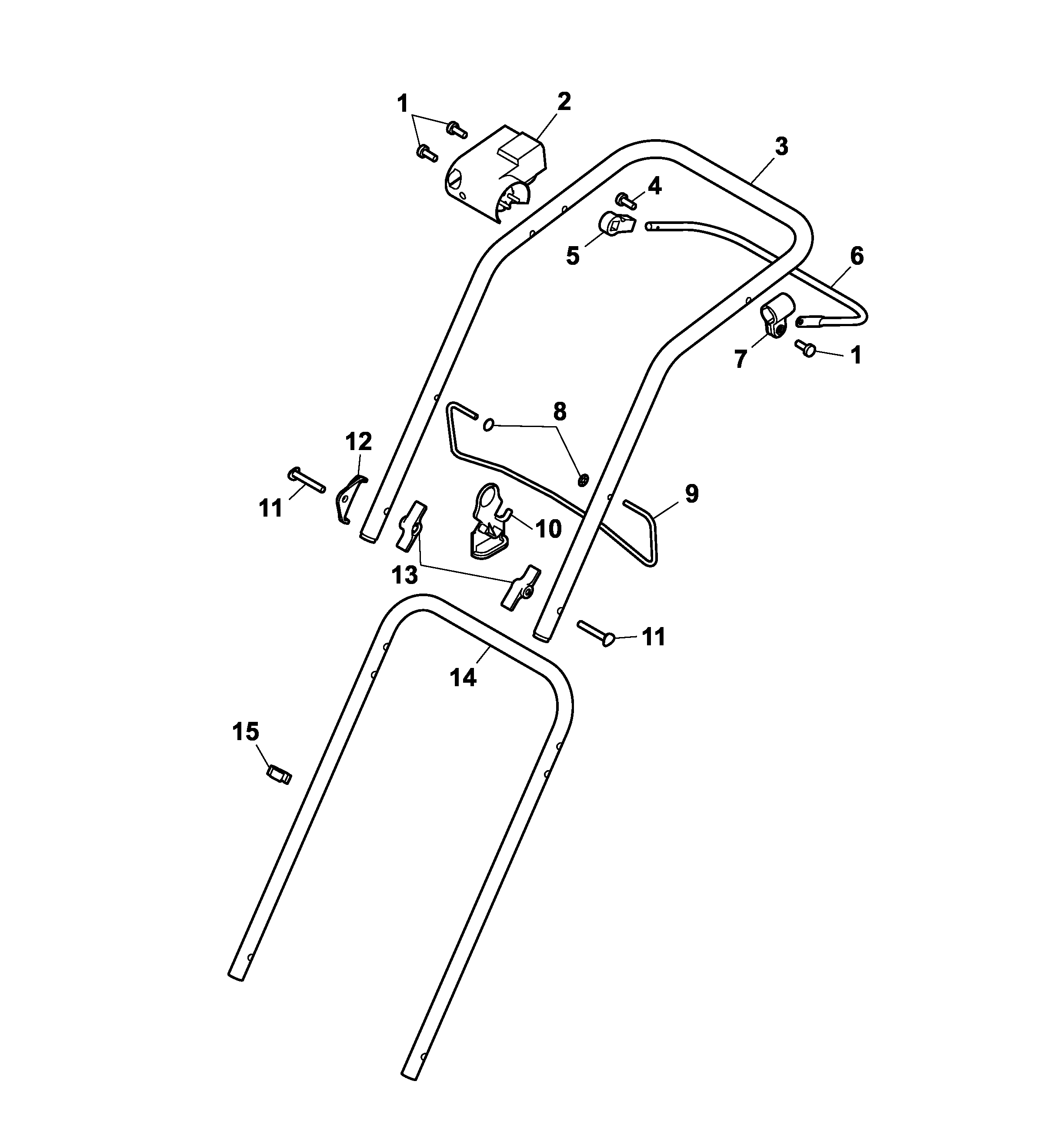

Spare Parts Lists for Wolf Mowers Handlebar, Switch


spare parts list 1
spare parts list 2


spare parts list


pos.decriptionspare part number
2Switch-Key4020 050
3Upper Handlebar4907 021
4Screw0015 820
5Bushing4940 105
6Bracket Bracket4936 130
7Clamp-Casing4935 105
8Clip3585 503
9Shackle4936 105
10Cable Guide4936 323
11Connecting Screw4901 101
12Antikink4907 338
13Wingnut0016 723
14Lower Handlebar4907 120
15Cable Clamp4950 307
***Instruction Manual0054 410
spare parts list


pos.decriptionspare part number
1Screw0012 625
