back to
>
Mowers
>
Electro
>
Without drive up to 38 cm
>
series 2
>
2.38 E
>
Covering cap, Motor, Blade

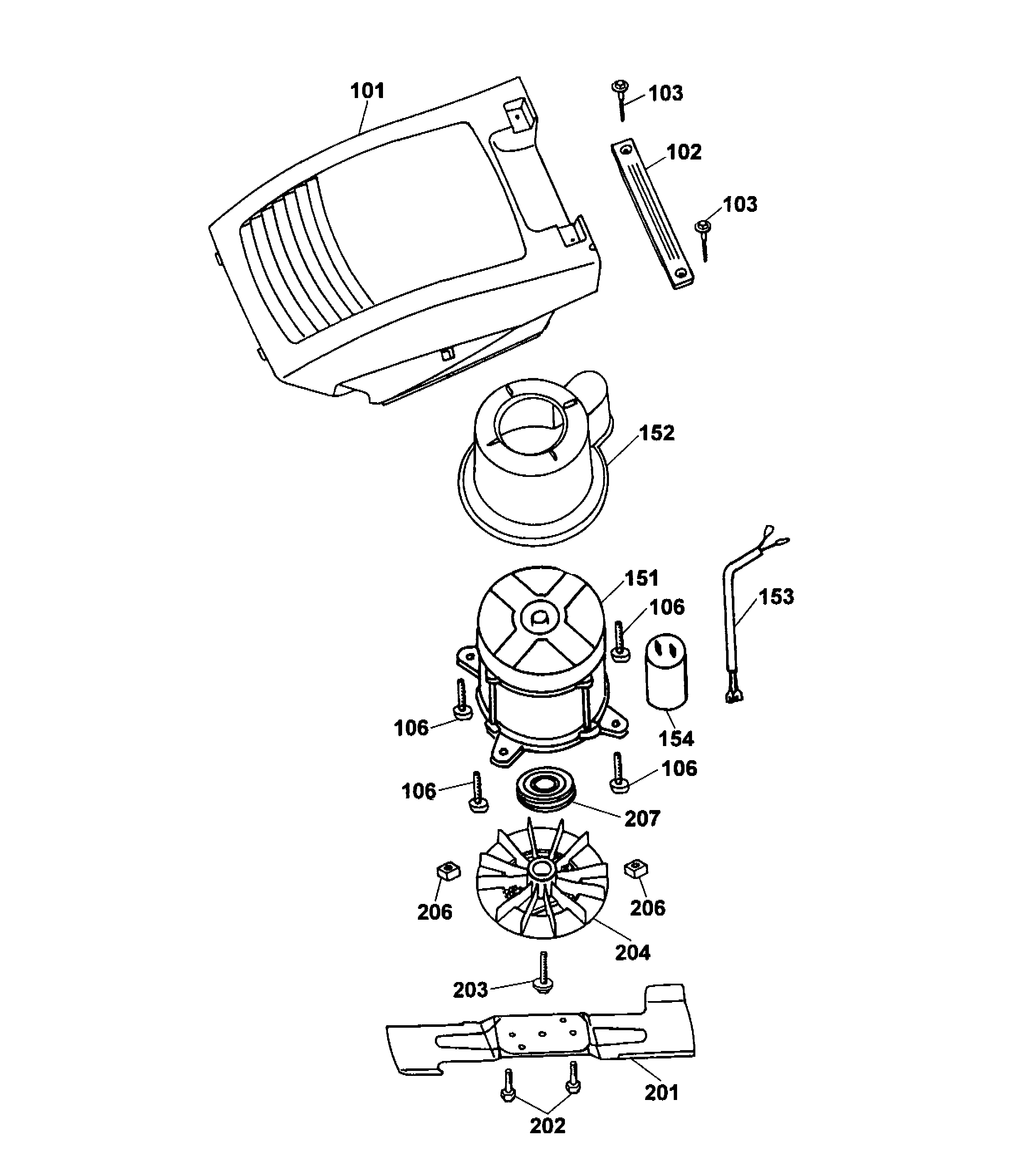

Spare Parts Lists for Wolf Mowers Covering cap, Motor, Blade
pos.
decription
spare part number
101
cover
4961 301
102
Handle
4961 303
103
Screw
0012 639
106
Screw
0010 932
151
Motor Series B Only
1141 075
152
Air-Conduction
4961 306
153
Wire Connector
3567 214
154
Condenser 12Uf
1117 040
201
Blade Vi 38 E
4961 098
202
Screw
0010 385
203
Screw
0010 403
204
Aerator
4961 026
206
Nut
0016 409
***
Instruction Manual
0054 224
***
Bag With Accessories
4961 024
