> Mowers > Electro > Without drive up to 38 cm > series 2 > 2.38 E > Handlebar, Switch

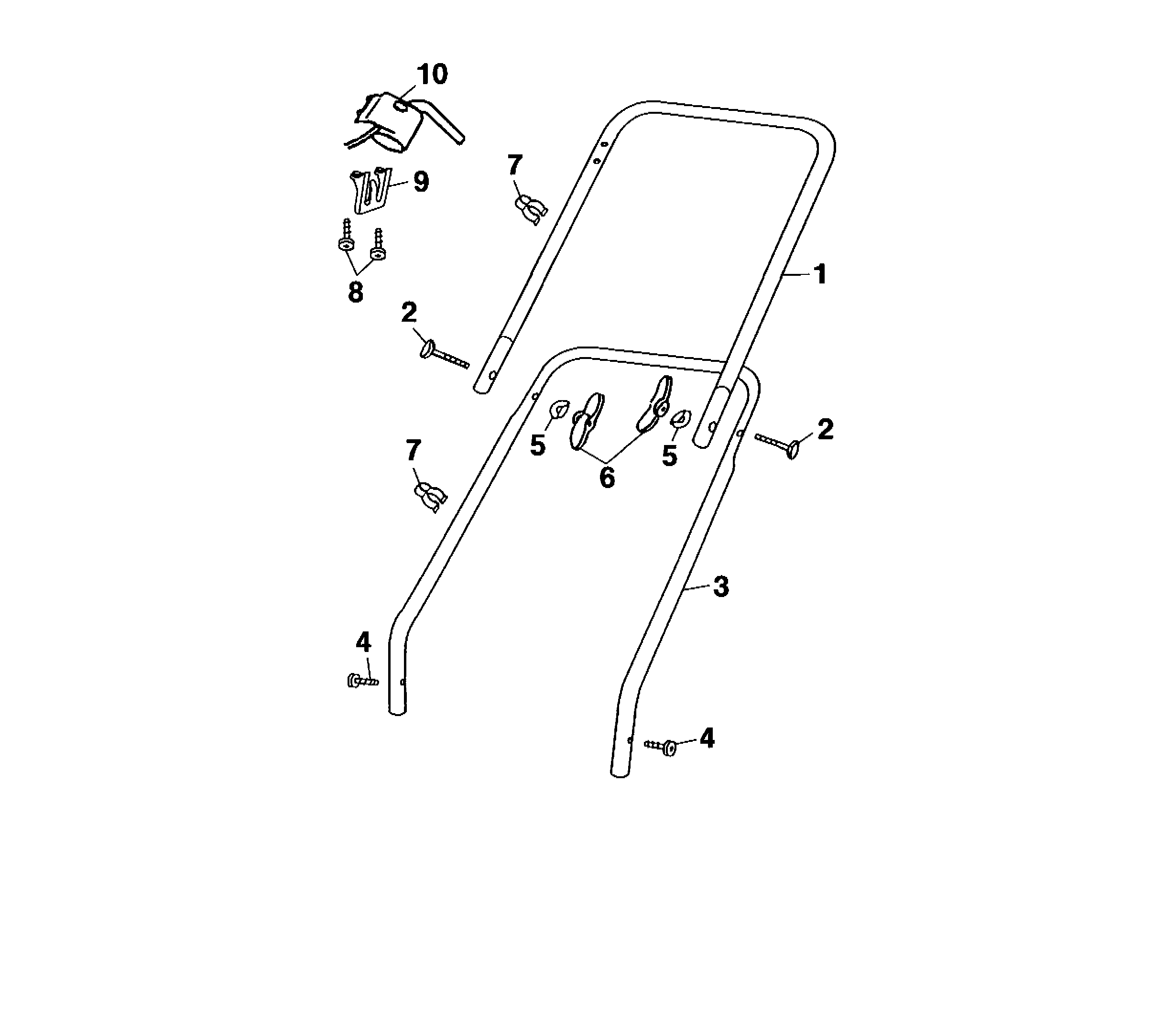

Spare Parts Lists for Wolf Mowers Handlebar, Switch




spare parts list


pos.decriptionspare part number
1Upper Handlebar4961 023
2Connecting Screw4901 101
3Lower Handlebar4961 120
4Screw0015 660
5Hollow Disk0017 275
6Wingnut0016 717
7Cable Clamp4950 307
8Screw0012 883
9Cable Guide3630 325
10Switch-Key3630 061
