Spare Parts Lists for Wolf Mowers Drive, Wheels

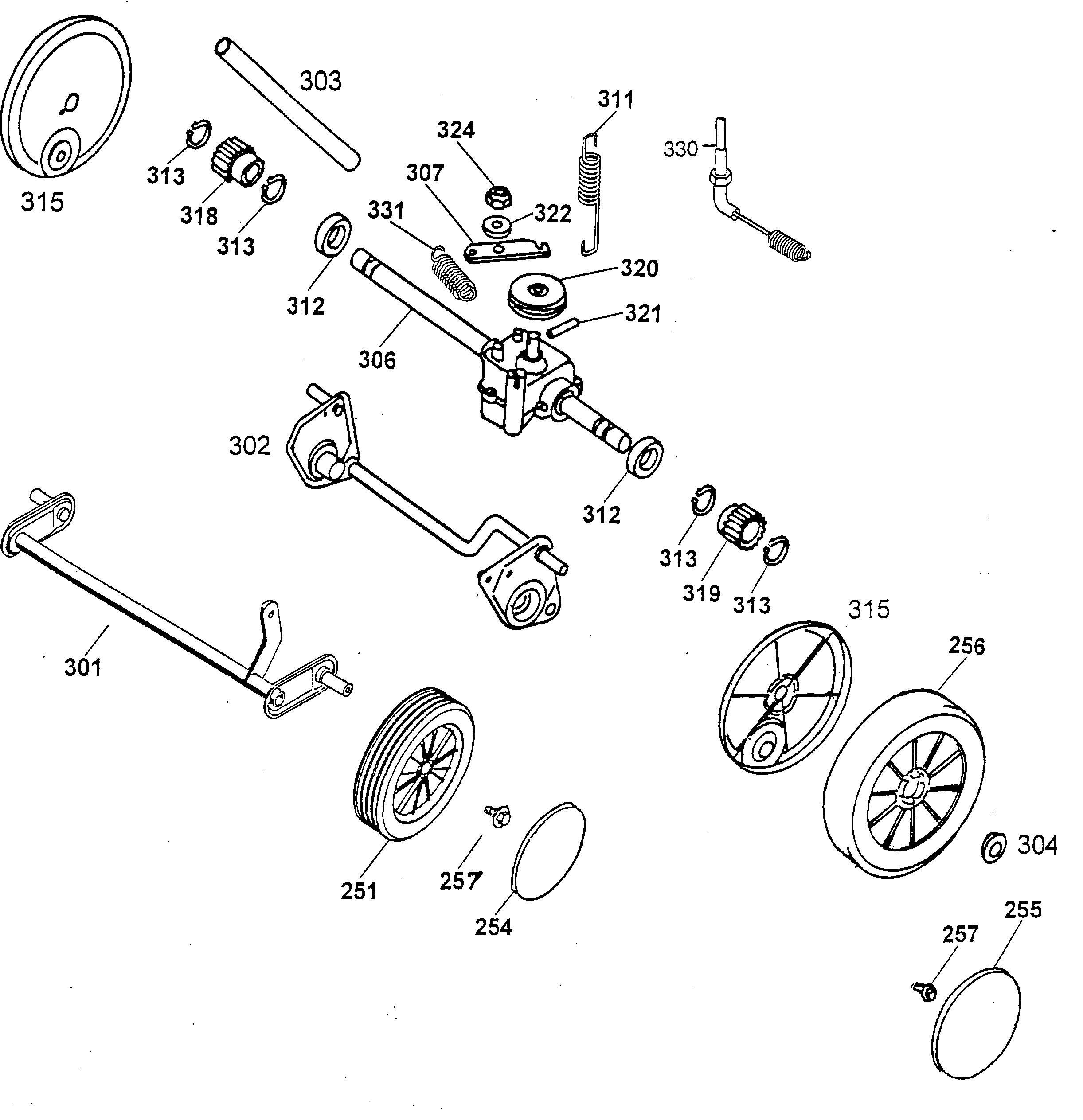

spare parts list


pos.decriptionspare part number
251Wheel ø 170 mm6440 050
253Screw0010 893
254Cover ø 170 mm6450 520
255Cover ø 200 mm6450 530
256Wheel, 200 Mm Dia.6450 050
257Screw0010 893
301Axle4740 030
***Driving Axle With Wheels4725 037
302Axle4725 038
303Protecting Tube4955 328
304Bearing6340 516
306Gear1097 000
307Lever1097 200
311Tension Spring4725 108
312Bearing0023 147
313Circlip0020 010
315Hub Cap4955 327
318Coupling Pinion, Right4725 025
319Coupling Pinion, Left4725 026
320V-Belt Pulley1097 201
321Dowel Pin1097 202
322Washer1097 203
324Stop nut1097 204
330Bowden Wire Driving4725 054
331Spring1097 205
