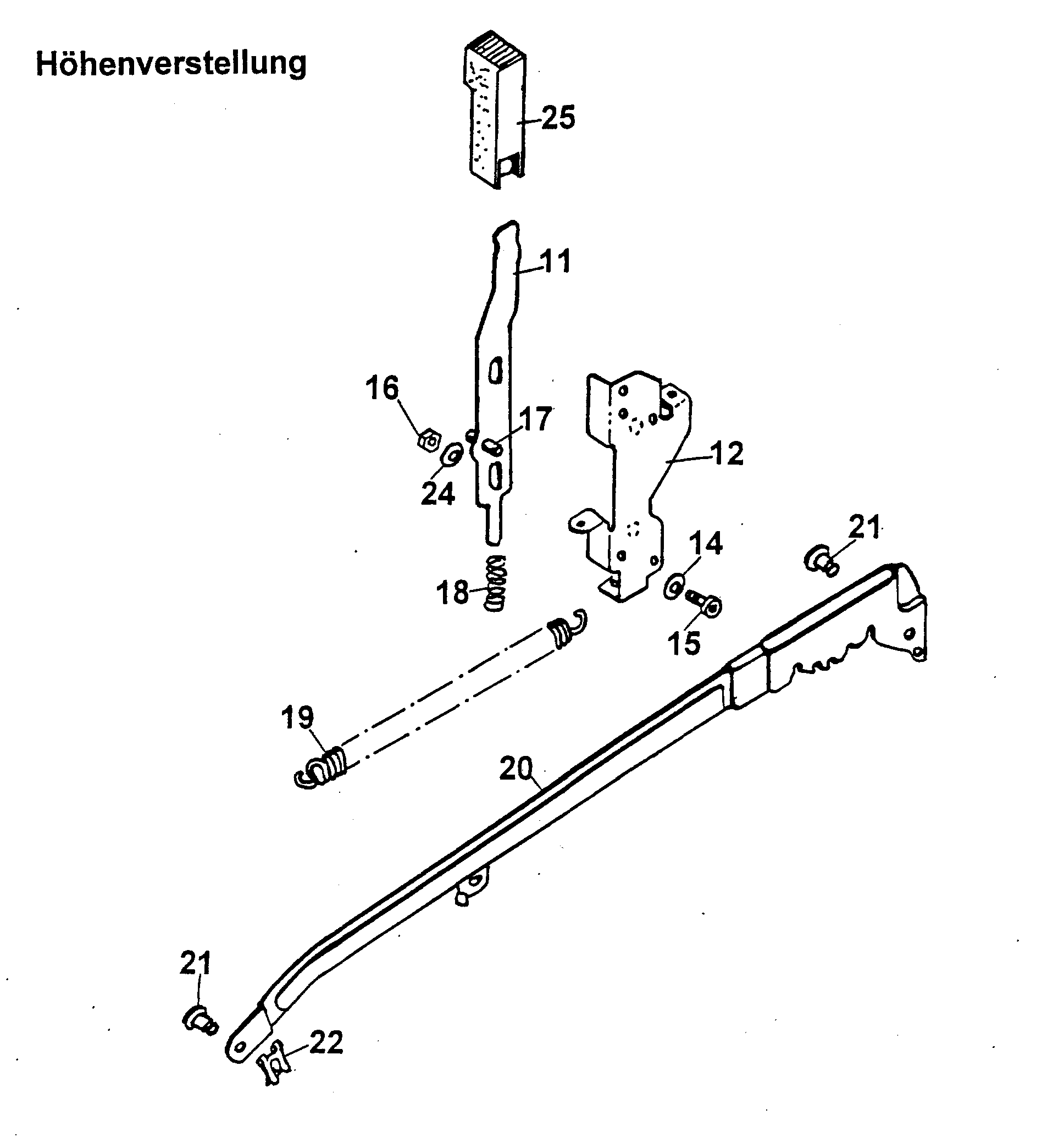

Spare Parts Lists for Wolf Mowers Height-adjustment




spare parts list


pos.decriptionspare part number
11Lever With Ref. No. 174740 013
12Guiding6340 020
14Flat Washer 5.3 Din 9021 B0017 287
15Screw0012 864
16Nut0016 311
17Dowel Pin0018 864
18Spring4740 207
19Tension spring connecting rod4961 107
20Rod4942 020
21Bolt6340 214
22Retaining Clip0020 981
24Washer0017 290
25Button4740 100
30Bolt0018 458
