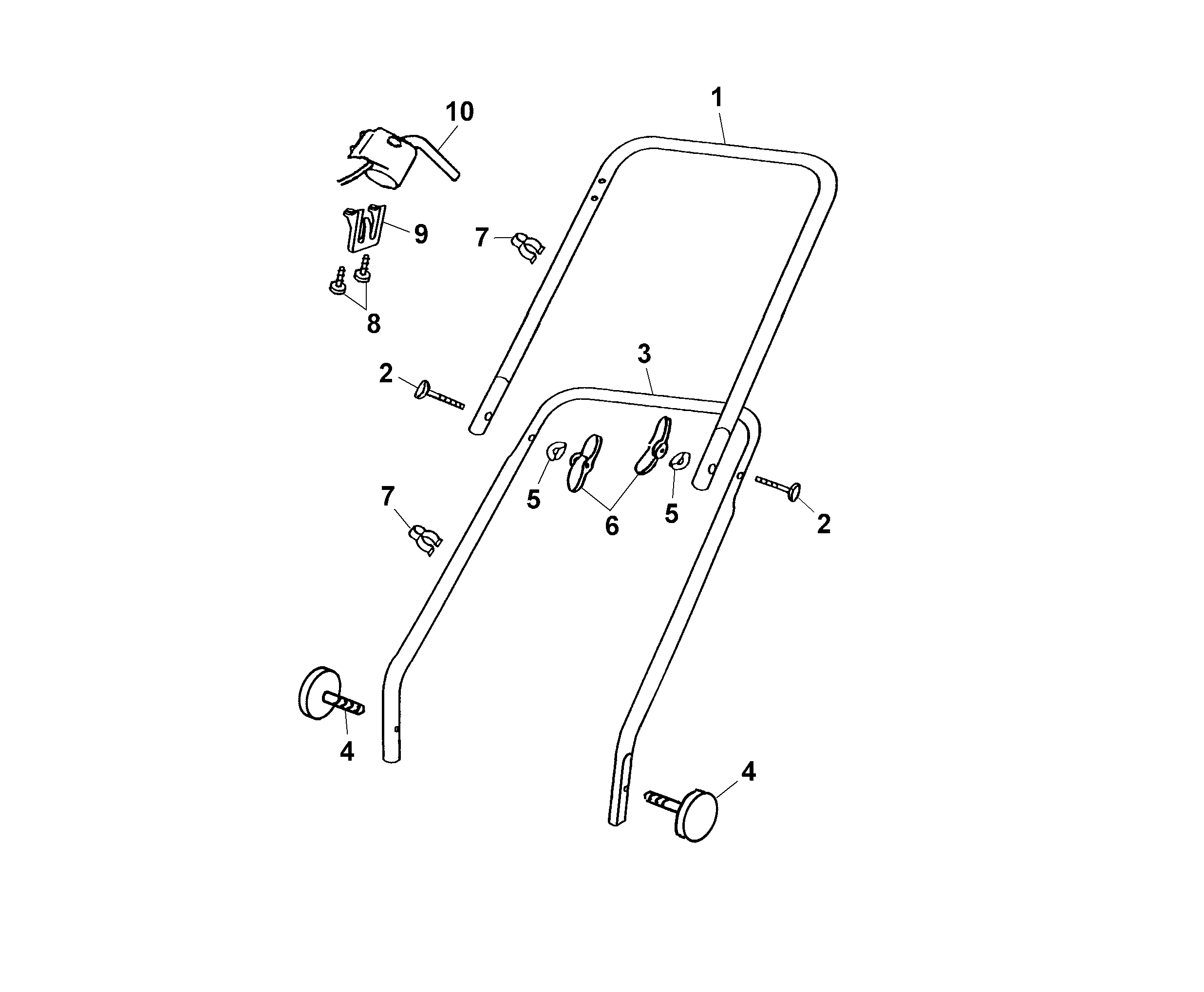

Spare Parts Lists for Wolf Mowers Handlebar compl.

pos.	decription	spare part number
1	Upper Handlebar	4906 020
2	Connecting Screw	4901 101
3	Lower Handlebar	4912 112
4	Handwheel	4950 010
5	Hollow Disk	0017 275
6	Wingnut	0016 717
7	Cable Clamp	4950 307
8	Screw	0012 883
9	Strain Relief	3620 325
10	Switch-Key	3630 061
***	Poly Bag With Self-Assembly Parts	4906 034
***	Instruction Manual	0054 236
