Spare Parts Lists for Wolf Mowers Motor, Blade

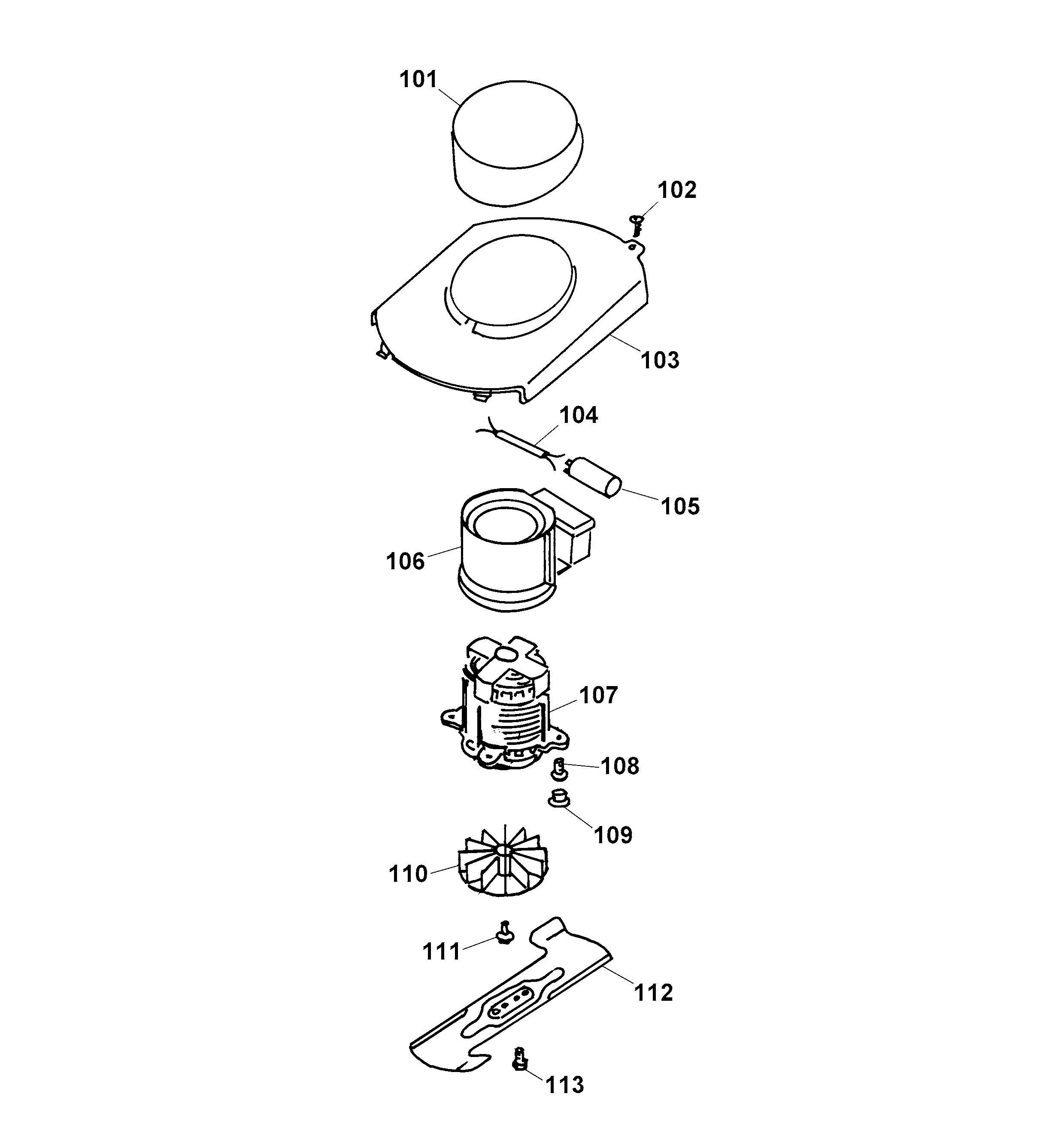

pos.	decription	spare part number
101	Chassis Cover	4912 302
102	Screw	0012 625
103	Motor Covering	4936 305
104	Wire Connector	3567 214
105	Condenser 12Uf	1117 040
106	Air-Conduction	4932 308
***	Bearing Shield	1105 100
***	Upper Bearing Shield	1140 110
***	Brake Spring	1142 157
***	Brake	1142 158
107	Motor	1105 050
108	Screw	0012 952
109	Insert-Grip	4936 308
110	Aerator	4936 028
111	Screw	0010 680
112	Blade	4932 090
113	Hex. Screw M6X16	0010 366
