Kabelfix assembly 1

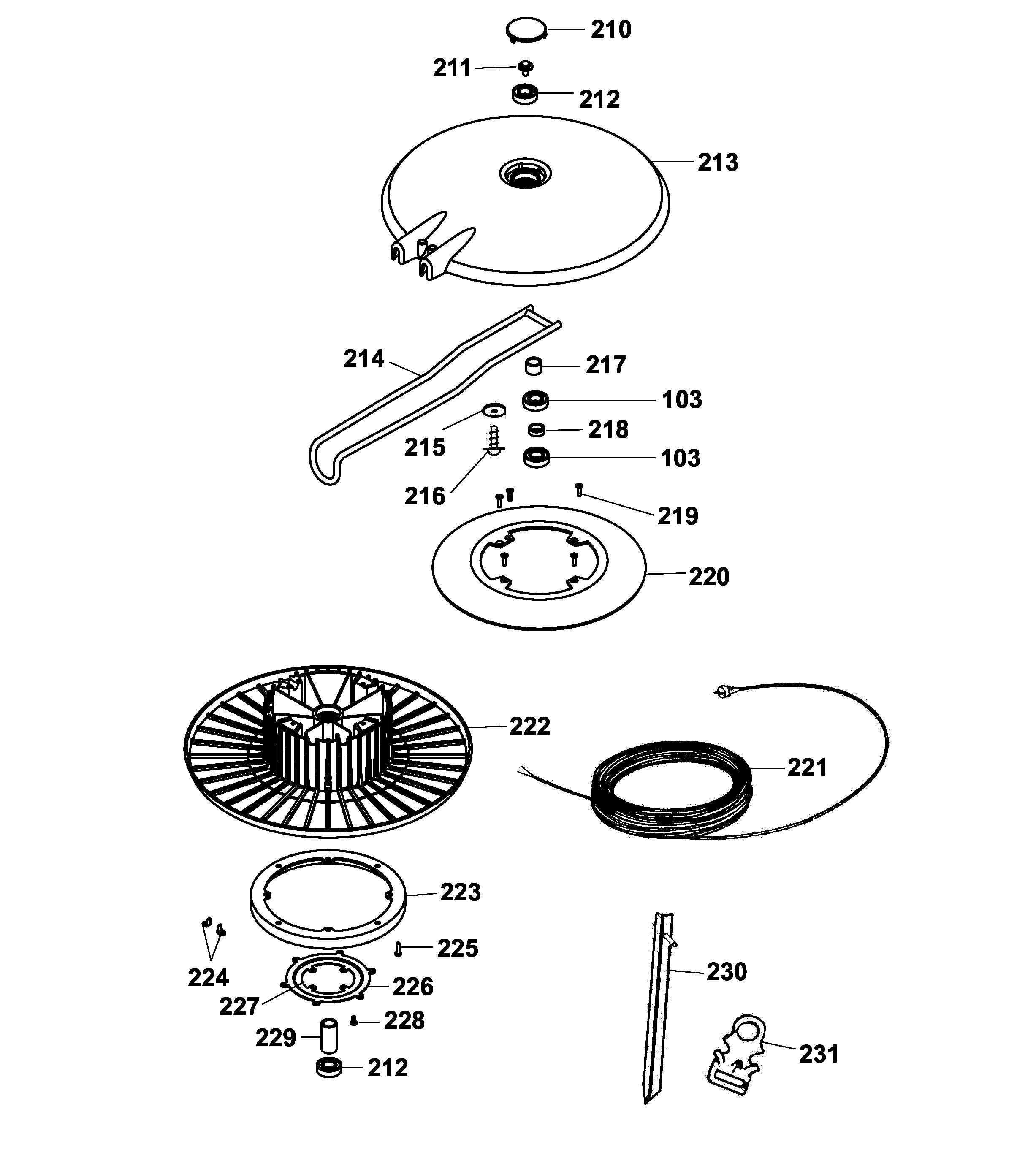

Spare Parts Lists for Wolf Mowers Kabelfix assembly 1
pos.
decription
spare part number
210
Cover
4026 319
211
Screw
0010 892
212
Bearing
0023 095
213
Upper Part
4026 317
214
Extension Arm
4026 102
215
Washer
0017 272
216
Screw
0012 625
217
Distance Bush
4026 119
218
Distance Bush
4026 117
219
Screw
0012 628
220
Retainer-E Ring
4026 315
221
Cable
4026 360
222
Cable Drum
4026 314
223
Gear-Timing
4026 326
224
Flat Plug
4026 309
225
Screw
0012 625
226
Slip Ring Big
4026 105
227
Slip Ring Small
4026 104
228
Screw
0012 625
229
Distance Bush
4026 116
230
Earth Rod
4026 011
231
Cable Guide
4936 323
***
Upper Part Complete
4026 065
***
Cable Drum Complete
4026 060
