Esprit 40 EAKF
>
Kabelfix assembly 2

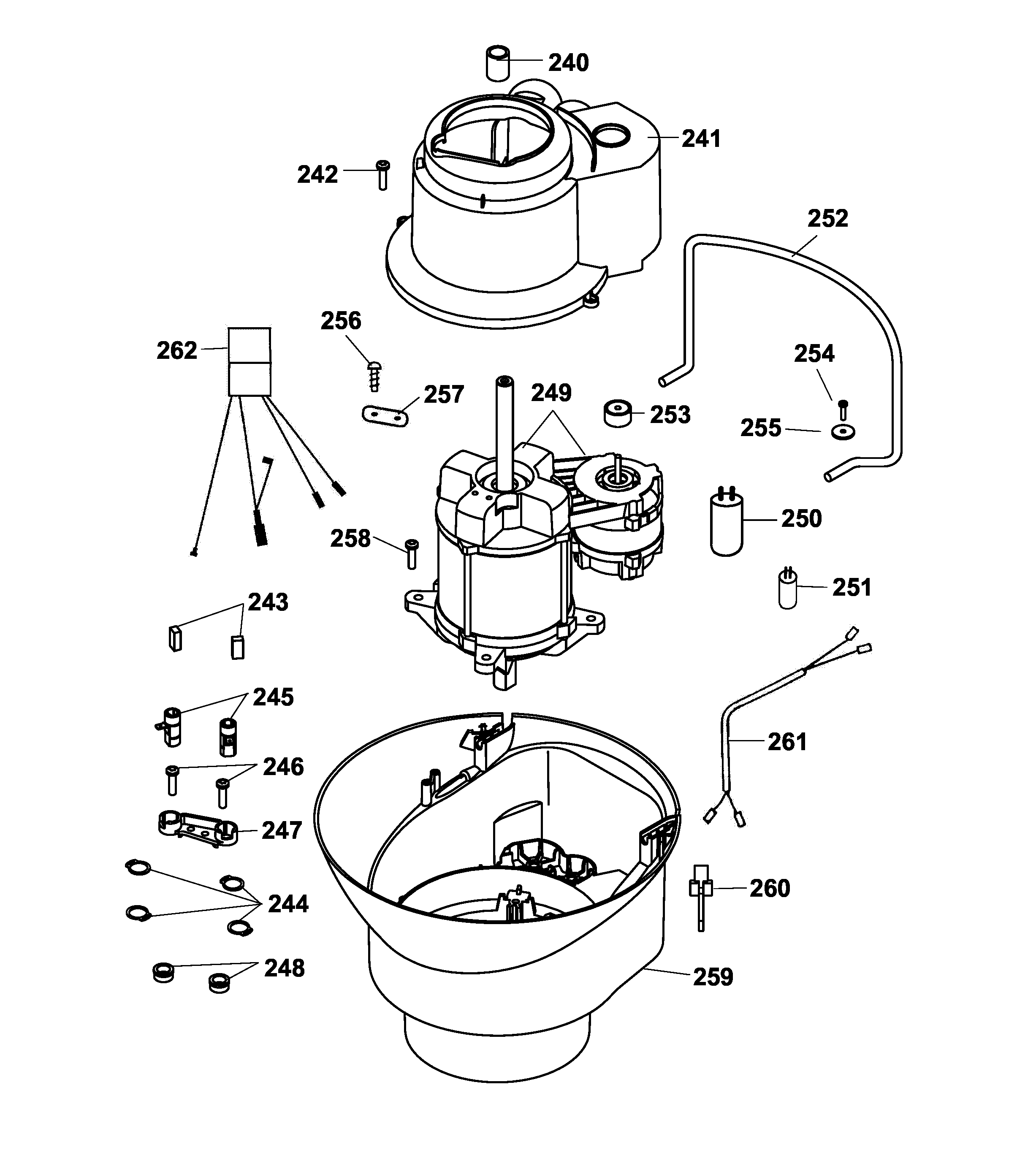

Spare Parts Lists for Wolf Mowers Kabelfix assembly 2
pos.
decription
spare part number
240
Distance Bush
4026 115
241
Air-Conduction
4026 312
242
Screw
0012 625
243
Carbon Brush
4026 107
244
Retainer-E Ring
0020 012
245
Carbon Holder
4026 106
246
Screw 5X12
0012 605
247
Carrier
4026 313
248
Cover Plate
4026 108
249
Motor
1140 075
250
Condenser, 20 µF
1133 040
251
Condenser, 1,5 µF
1140 040
252
Stop Motion Shackle
4026 100
253
Crown Gear
4026 311
254
Screw
0012 625
255
Washer
0017 272
256
Screw
0012 625
257
Clamp-Casing
4557 208
258
Screw
0012 886
259
Lower Part
4026 310
260
Brake Lever
4026 320
261
Wire Connector
3567 214
262
Cable Form
4026 120
