Echo ES-1000 - Shredder/Vacuum, S/N: 025417 - 999999 Ignition, Starter Spareparts

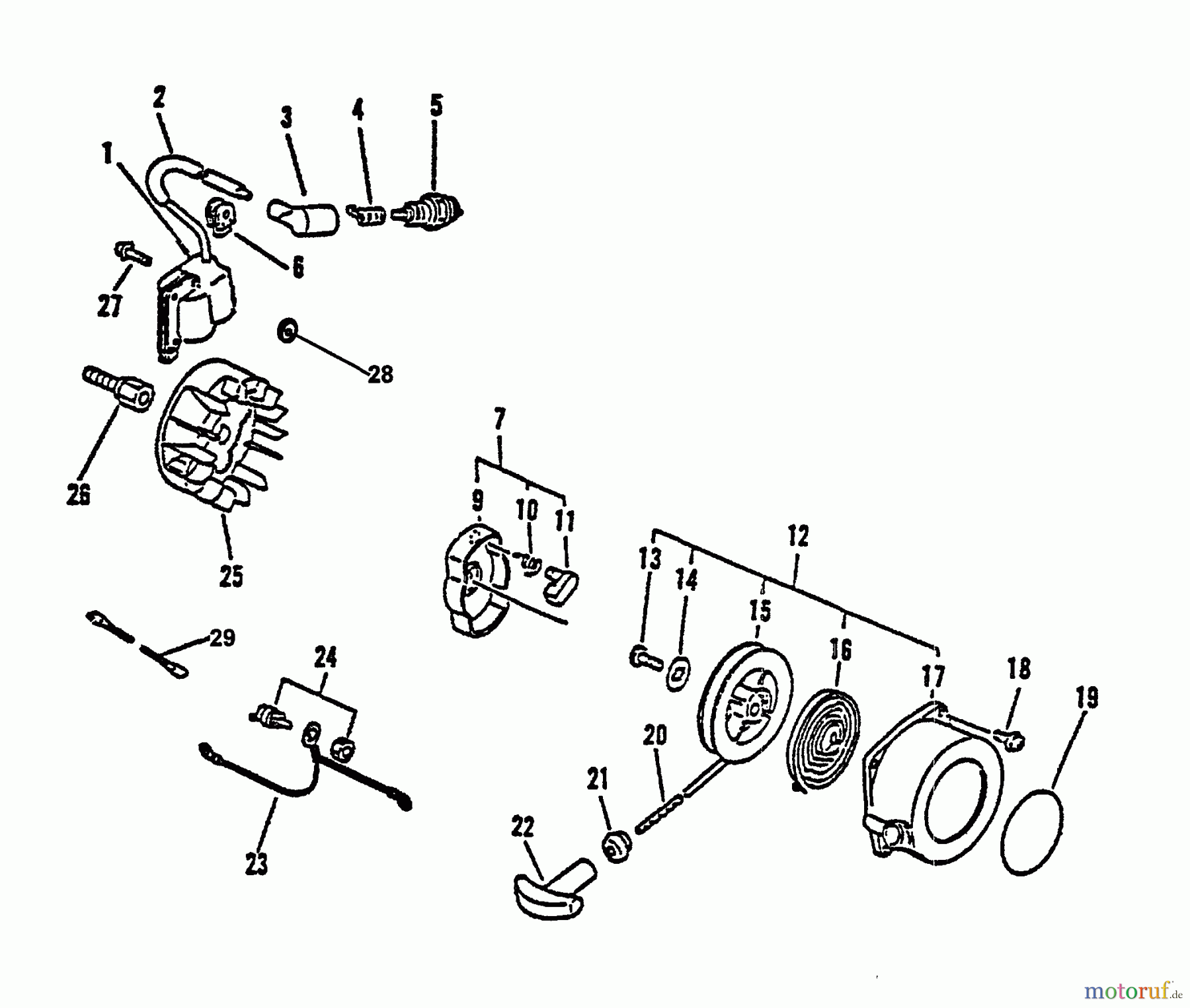

Ignition, Starter ES-1000 - Echo Shredder/Vacuum, S/N: 025417 - 999999

Echo Bläser / Sauger / Häcksler / Mulchgeräte ES-1000 - Echo Shredder/Vacuum, S/N: 025417 - 999999 Ignition, Starter
PosArticle NumberDescription
1 16-156626-08760Zündmodul ES-10<049008 ES-
1 16-158626-06360Zündmodul ES-10>049009 ES-
2 16-156611-05060Tülle
3 16-159012-01620Zündkerzenkappe SRM-2010, CS-
4 16-159011-03432Kontaktfeder CS-2600/4200/PB-
5 16-159010-10630Zündkerze
5 16-159010-10230Zündkerze CS-2600/SRM-320/350/
6 16-150112-05060Gummidichtung
7 16-177202-44331Starterklinke ES-1000 ab Ser.-
9 16~NSS
10 16-177234-12220Feder, Starterklinke RM-4000/
11 16-177218-44330Starterklinke SRM-2450/PB-
12 16-177200-42033Starter kpl. ES-2000/2100/
13 16-177236-44330Schraube CS-2600/ SRM-320/350/
14 16-177214-42030Scheibe
15 16-177215-44430Seilscheibe SRM-2305/ES-2100/
16 Echo Starterfeder ES-2100/2400/HC-16-177220-42030Starterfeder ES-2100/2400/HC-
17 16-177232-42032Startergehäuse GT-2010 SRM-
18 16-900238-04018Schraube
19 16X502000190
20 1616
21 16-177227-42030Seilführung ES-2100/2400/HC-
22 16-177228-06530Startergriff ES-2100/2400/HC-
23 16-162010-08760Kabel
24 16-163400-03460Stop-Schalter ES-2000, HC-
25 16-156801-44731Polrad, Schwungmagetzünd. ES-
25 16-158800-06360Polrad ES-10>049009 ES-
26 16-200011-05661Kontaktschraube ES-2100/2400,
27 16-900162-04022Schraube (10)
28 16-101531-54330Buchse ES-2100, ES-2400, PB-
29 16-162021-08760Kabel ES-1000/2000 Neu
1699944440000
