Echo ES-2000 - Shredder/Vacuum, S/N: 007942 - 999999 Carburetor Spareparts

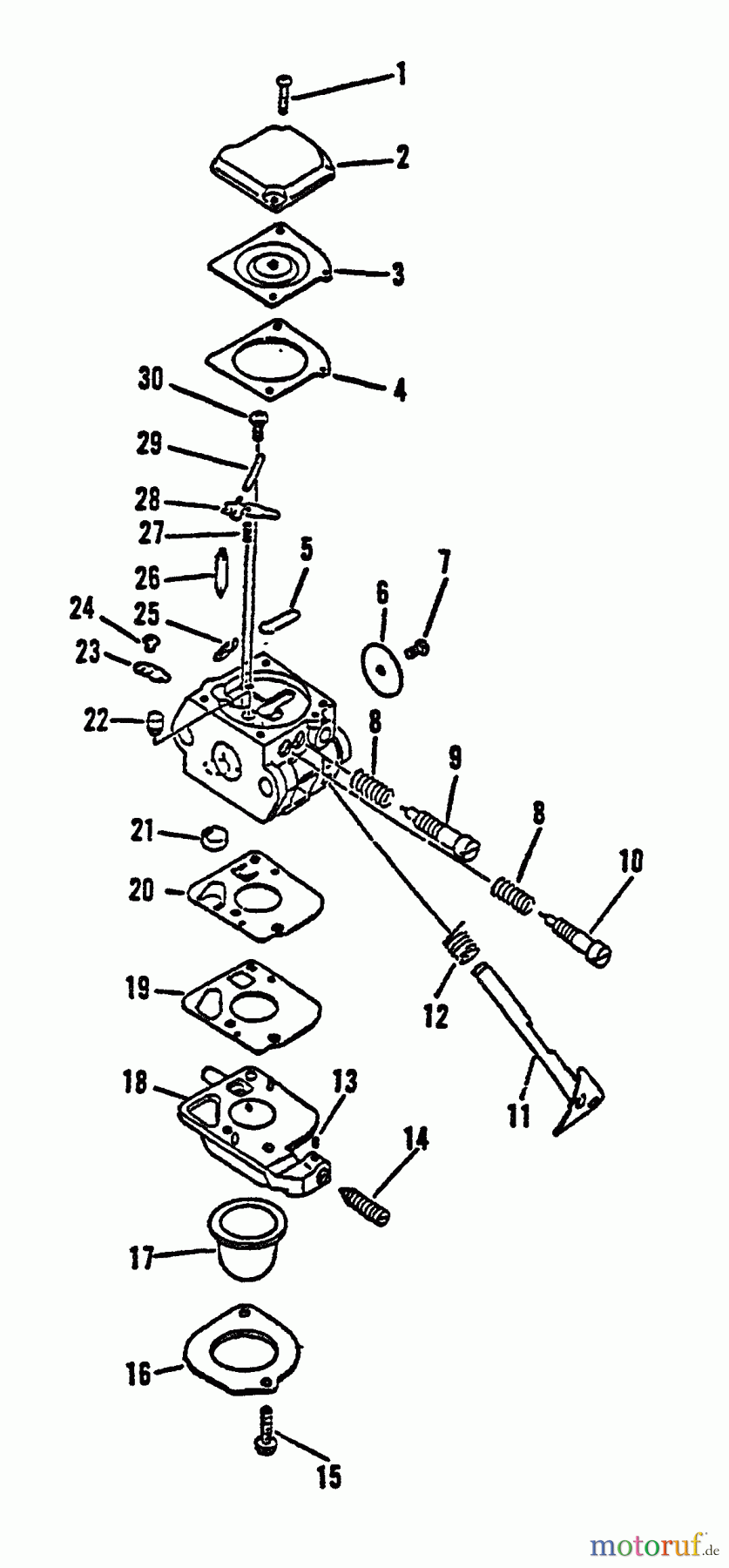

Carburetor ES-2000 - Echo Shredder/Vacuum, S/N: 007942 - 999999

Echo Bläser / Sauger / Häcksler / Mulchgeräte ES-2000 - Echo Shredder/Vacuum, S/N: 007942 - 999999 Carburetor
PosArticle NumberDescription
1699999999999
1 16-125344-52130Schraube SHR-170SI
2 16-125342-52130Membrandeckel SHR-150SI
3 1616
4 1616
5 1616
6 16-125316-42030Ventil
7 16-125314-13930Schraube
8 16-125319-42030Feder ES-2100, HC-2100, PB-
9 16-125320-07260Einstellnadel
10 16-125318-51330Einstellschraube SRM-3550
11 16-125317-06860Gestänge ES-2100, ES-2400, PB-
12 16-125313-42030Feder ES-2000,HC-2100,PP-600,
13 16-125378-13930Hülse
14 16-125334-06860Standgasschraube
15 16-125310-11610Schraube
16 16-125363-11610Ring
17 16-125381-08660Pumpengummi SRM-2450/PB-2455/
18 16-125324-11610Deckel
19 1616
20 1616
21 1616
22 16-125376-51030Ventilstopfen HCA-2400, PB-
23 16-125350-05060Hebel ES-1000, ES-2000
24 16-125348-13930Schraube
25 16-125327-13930Clip
26 1616
27 1616
28 1616
29 1616
30 16-125339-42030Schraube SHR-170SI
16-125300-42030Vergaser Reparatursatz mit
16-125303-42030Vergaserdichtsatz SRM-2010/ES-
