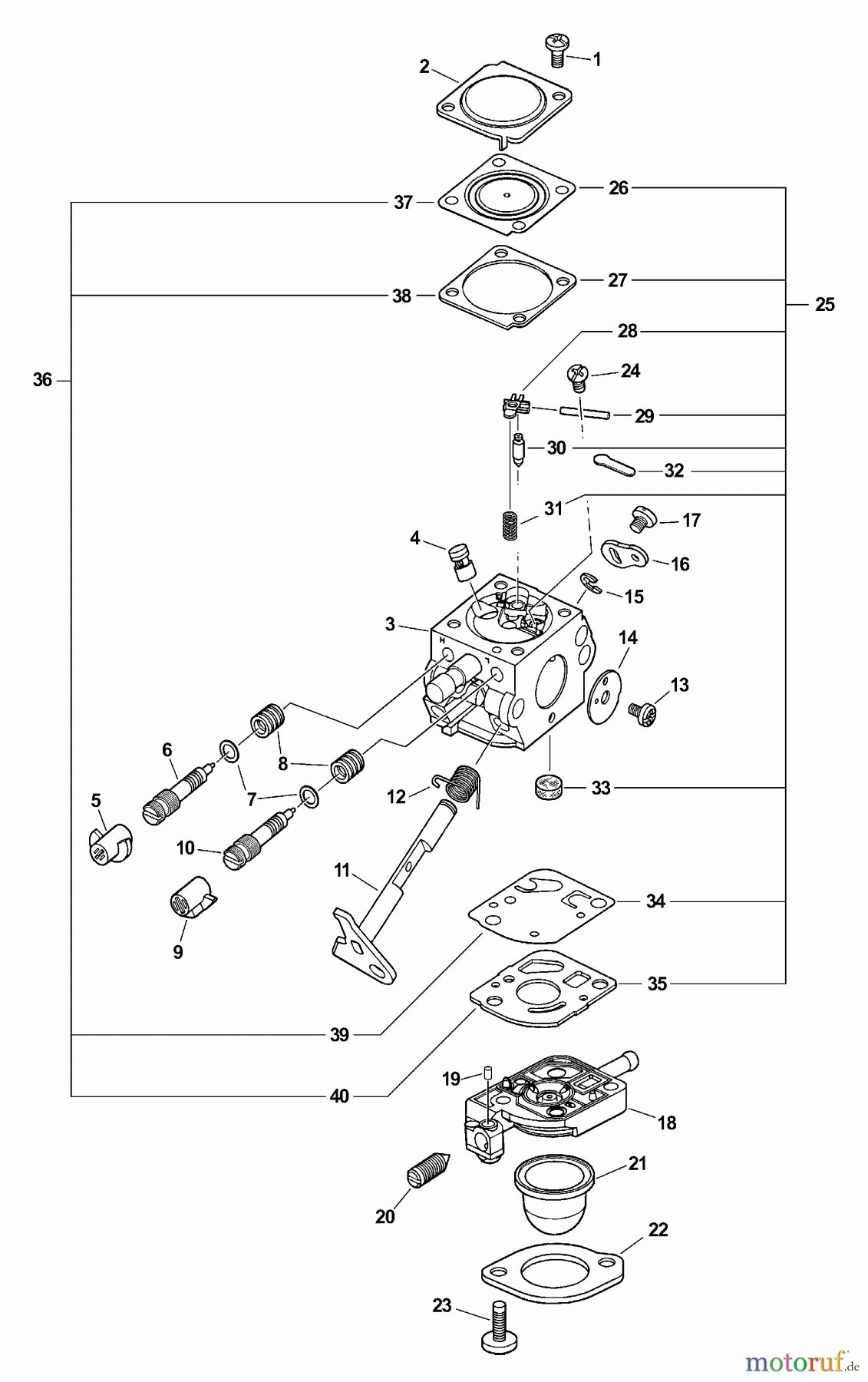

Echo ES-2400 - Shredder/Vacuum (Type 1) Carburetor -- C1U-K44A S/N: 001001-519978, Canada - 001001-029298 Spareparts

Carburetor -- C1U-K44A S/N: 001001-519978, Canada - 001001-029298 ES-2400 - Echo Shredder/Vacuum (Type 1)

Echo Bläser / Sauger / Häcksler / Mulchgeräte ES-2400 - Echo Shredder/Vacuum (Type 1) Carburetor -- C1U-K44A S/N: 001001-519978, Canada - 001001-029298
PosArticle NumberDescription
16-125200-09561Vergaser Zama C1U-K44A
1 16-125344-52130Schraube SHR-170SI
2 16-125342-07360Deckel, Membrane
3 1616
4 16-125376-07360Ventilstopfen PB-2405, PB-2455
5 16-125329-08560Begrenzer, Vergaser, ES-2100/
6 16-125320-20560Nadel, Vollast ES-2100/2400,
7 16-125353-07760U-Scheibe
8 16-125319-42030Feder ES-2100, HC-2100, PB-
9 16-125329-09860Begrenzer, Vergaser C1U-K51 +
10 16-125318-09560Einstellnadel ES-2400, PB-2405
11 16-125317-06860Gestänge ES-2100, ES-2400, PB-
12 16-125313-08560Feder
13 16-125314-13930Schraube
14 16-125316-20560Scheibe
15 16-125317-13931Gestänge
16 16-125350-20560Anschlag ES-1000/2000/PB-2155/
17 16-125348-13930Schraube
18 16-125324-11610Deckel
19 16-125378-13930Hülse
20 16-125334-06860Standgasschraube
21 16-125381-08660Pumpengummi SRM-2450/PB-2455/
22 16-125363-11610Ring
23 16-125310-11610Schraube
24 16-125339-42030Schraube SHR-170SI
25 16-125300-20560Vergaserreparatursatz
26 1616
27 1616
28 1616
29 1616
30 1616
31 1616
32 1616
33 1616
34 1616
35 1616
36 16-125303-20560Membransatz ES-2100/ES-2400
37 1616
38 1616
39 1616
40 1616
