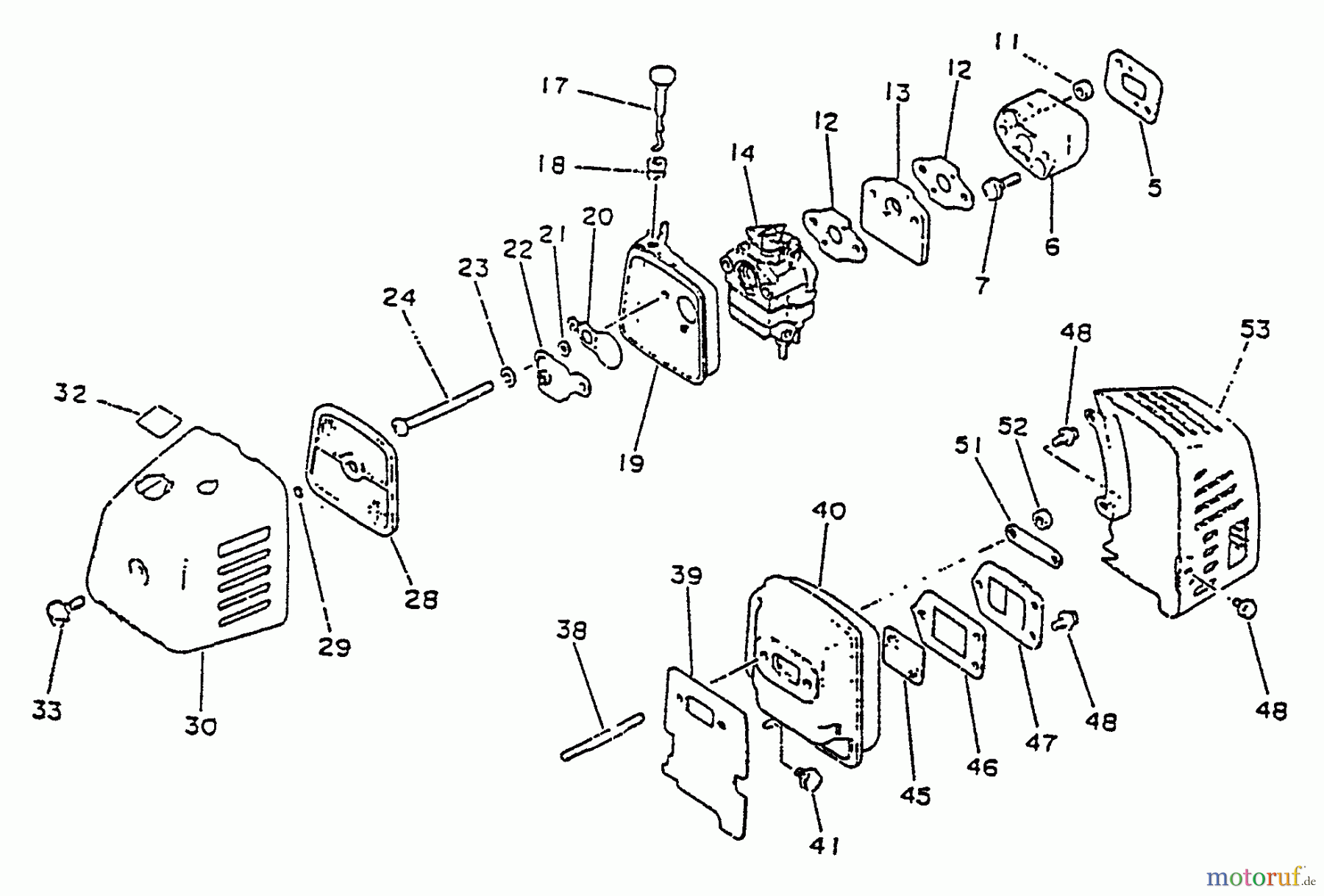

Intake, Exhaust, Air Cleaner PE-2201 - Echo Edger

Pos		Article Number	Description
5		16-130010-28231	Dichtung(Papier)
6		1613001740630
7		16-900238-05020	Schraube 5x20
11		16-900500-00005	Mutter PPT-300ES/T-226 EDR-
12		1613001640631
13		1613002640630
14		1612300040630
17		1699999999999
18		16-178810-05230	Dichtring HCA-2500, HCR-1510,
19		1613031440630
20		1617851540630
21		16-178516-00830	Distanzring GT-2150, HCA-2500,
22		1612900640630
23		16-900605-00005	Scheibe PB-250/EC-7600
24		1690024105060
28		1613031040630
28		1613031740630
30		1613030240630
29		16-900720-00004	O- Ring/SHR-170SI
33		16-130415-40630	Schraube
32		16-X506-000070	Aufkleber CHOKE HCR-1510
38		16-101014-00560	Stehbolzen-Auspuff
39		1614551040631
40		1614580640630
41		16-900238-05010	Schraube M5x10
45		16-145862-40630	Funkenschutzsieb SHR-170SI/
46		1614586640631
47		1614580940630
48		16-900238-04010	Schraube M4 x 10 ES-2400,PB-
51		16-145642-04930	Scheibe
52		16-900560-00005	Mutter M5, selbstsichernd (10)
53		1614587140630
