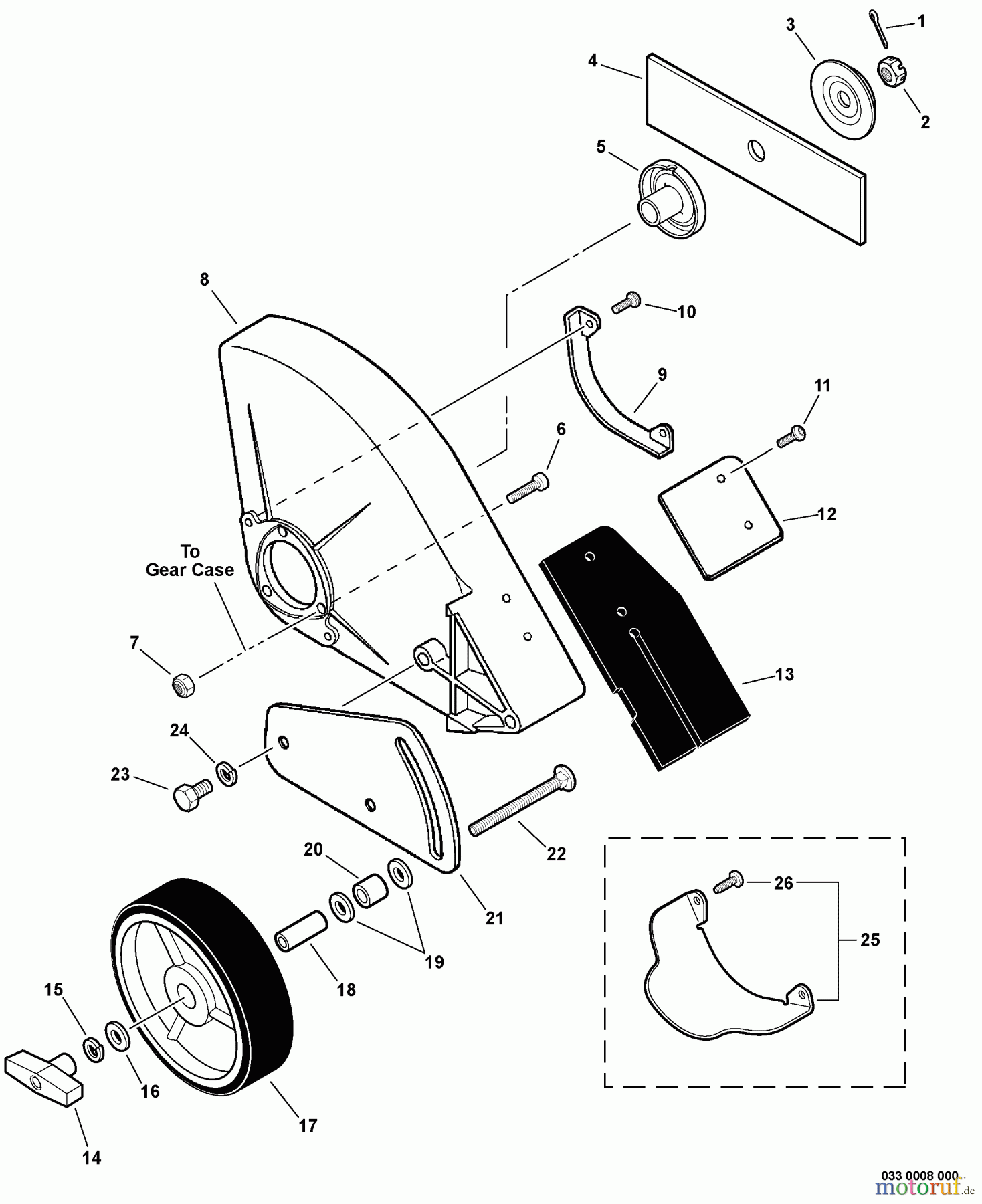

Echo PE-265S - Edger, S/N: S71513001001 - S71513999999 Edging Assembly -- Metal S/N: S71513001001 - S71513007000 Spareparts

Edging Assembly -- Metal S/N: S71513001001 - S71513007000 PE-265S - Echo Edger, S/N: S71513001001 - S71513999999

Echo Kantenschneider PE-265S - Echo Edger, S/N: S71513001001 - S71513999999 Edging Assembly -- Metal S/N: S71513001001 - S71513007000
PosArticle NumberDescription
1 16-900300-20022Splint PAS-2400, RMA-2530, RM-
2 16-900513-00010Mutter 10x1,25 3N, links (10)
3 16C535000150
4 16-696015-52632Schneidmesser für Anbau-
5 16C535000100
6 16-V805-000160Bolzen HC-341ES
7 16-9005625-0005Mutter M5 selbstsichernd (10)
8 16C550000122
9 16-699025-52630Abdeckblech für Anbau-
10 16-V804-000000Bolzen HC-341ES
11 16-V804-000000Bolzen HC-341ES
12 16C552000101
13 16C550000110
14 16V299000550
15 16-900605-00008Scheibe
16 16-900602-00008Scheibe 8 (50)
17 16-C730-000030Laufrad 6x1,5 PAS-2400,
18 16-302424-52630Hülse für Anbau-
19 16V355000400
20 16-900602-00010Scheibe PB-500
21 16C712000110
22 16V205000420
23 16-900100-08014Schraube M8x14, PB-250
24 16-900605-00008Scheibe
25 16900104
26 16-900253-04012Schraube CS-2600
