Echo HCA-2400 - Hedge Trimmer Ignition, Starter, Fuel System Spareparts

• Start
• Echo
• Heckenscheren
• HCA-2400 - Echo Hedge Trimmer
• Ignition, Starter, Fuel System

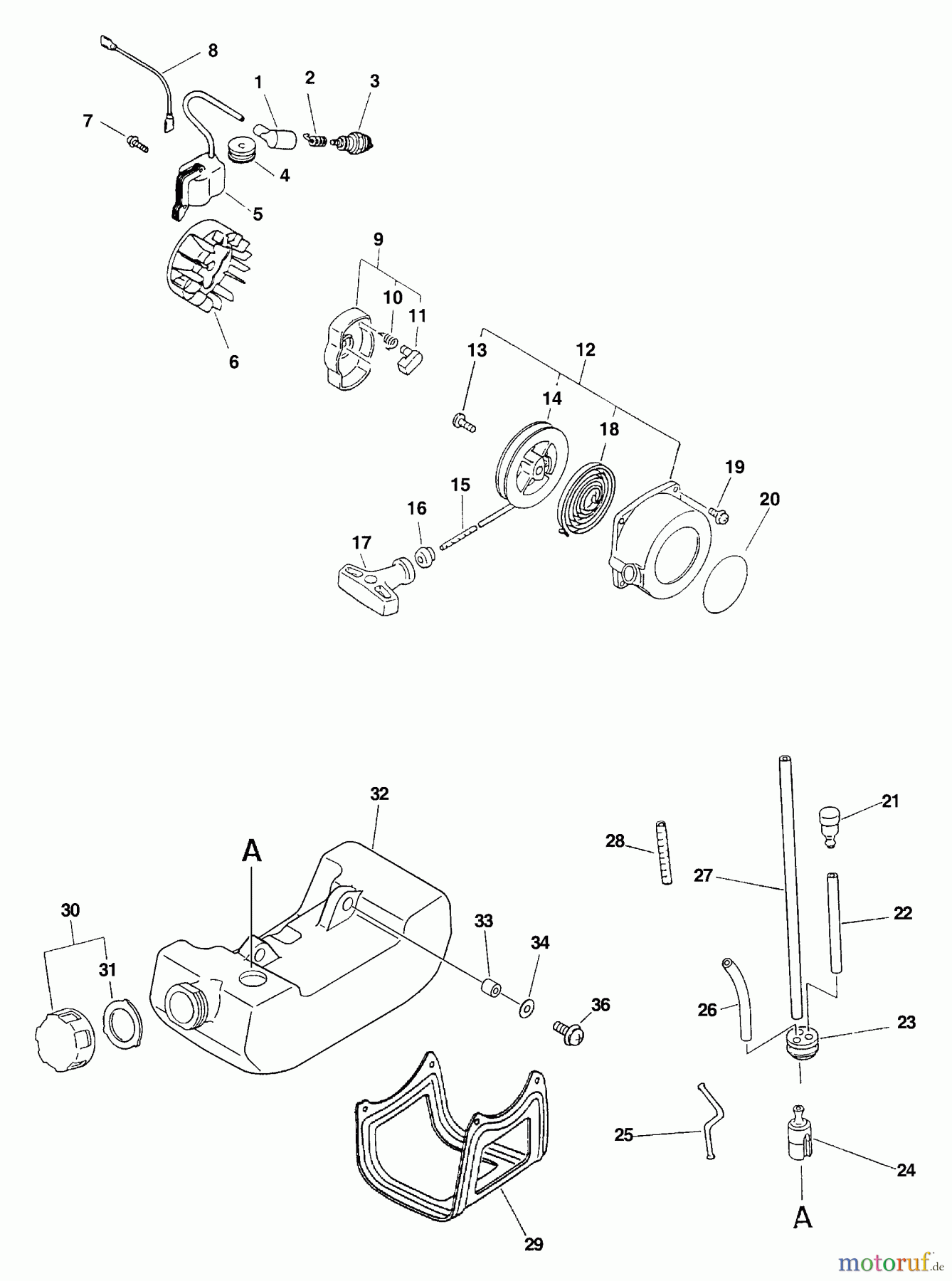

Ignition, Starter, Fuel System HCA-2400 - Echo Hedge Trimmer

Pos		Article Number	Description
1		16-159012-01620	Zündkerzenkappe SRM-2010, CS-
2		16-159011-03432	Kontaktfeder CS-2600/4200/PB-
3		1699944500071
4		16-156112-40630	Dichtring/T-226
5		16-156601-44732	Zündmodul SRM-2450/2010/_HC-
6		16-156801-44731	Polrad, Schwungmagetzünd. ES-
7		16-900162-04022	Schraube (10)
8		16-V485-001080	Kabel CS-310ES
9		16-177202-44331	Starterklinke ES-1000 ab Ser.-
10		16-177234-12220	Feder, Starterklinke RM-4000/
11		16-177218-44330	Starterklinke SRM-2450/PB-
12		16-177200-42033	Starter kpl. ES-2000/2100/
13		16-177236-44330	Schraube CS-2600/ SRM-320/350/
14		16-177215-44430	Seilscheibe SRM-2305/ES-2100/
15		16	16
16		16-177227-42030	Seilführung ES-2100/2400/HC-
17		16-177228-06530	Startergriff ES-2100/2400/HC-
18		16-177220-42030	Starterfeder ES-2100/2400/HC-
19		16-900163-04016	Schraube
20		16X502000190
21		16-A356-000031	Ventil Tankbelüftung PAS-2400/
22		16-V471-001200	Leitung(Gummi) CS-3000, CS-
23		16-132115-46730	Dichtring HC-1500/HCR-1500/
24		16-131205-07321	Benzinfilter CS-3500/2600,SRM-
25		16-132011-03360	Verbindungsstück ES-2400, HCA-
26		16-132010-56330	Überlaufleitung 9cm CS/ES/GT/
27		16-V471-001190	Benzinleitung (Gummi) SRM-
28		16-132012-12361	Leitung(Gummi) HC-341ES
29		16-305110-42030	Abstellbock PP-600, HCA-2500,
30		16-131004-55830	Tankdeckel HC-1500, HC-2400,
31		16-131016-55830	Dichtung Tankdeckel SRM-320/
32		16-131005-46831	Tank HCA-2410
33		16-131045-28230	Hülse PPT-300ES
34		16-900603-00005	Scheibe(Eisen) CS-2600/PB-250/
35		16-900238-05016	Schraube 5*16
		1699944440000
