Echo SHP-800 - Shaft Hedge Trimmer, Air Cleaner, Carburettor, Muffler Spareparts

• Start
• Echo
• Heckenscheren
• SHP-800 - Echo Shaft Hedge Trimmer,
• Air Cleaner, Carburettor, Muffler

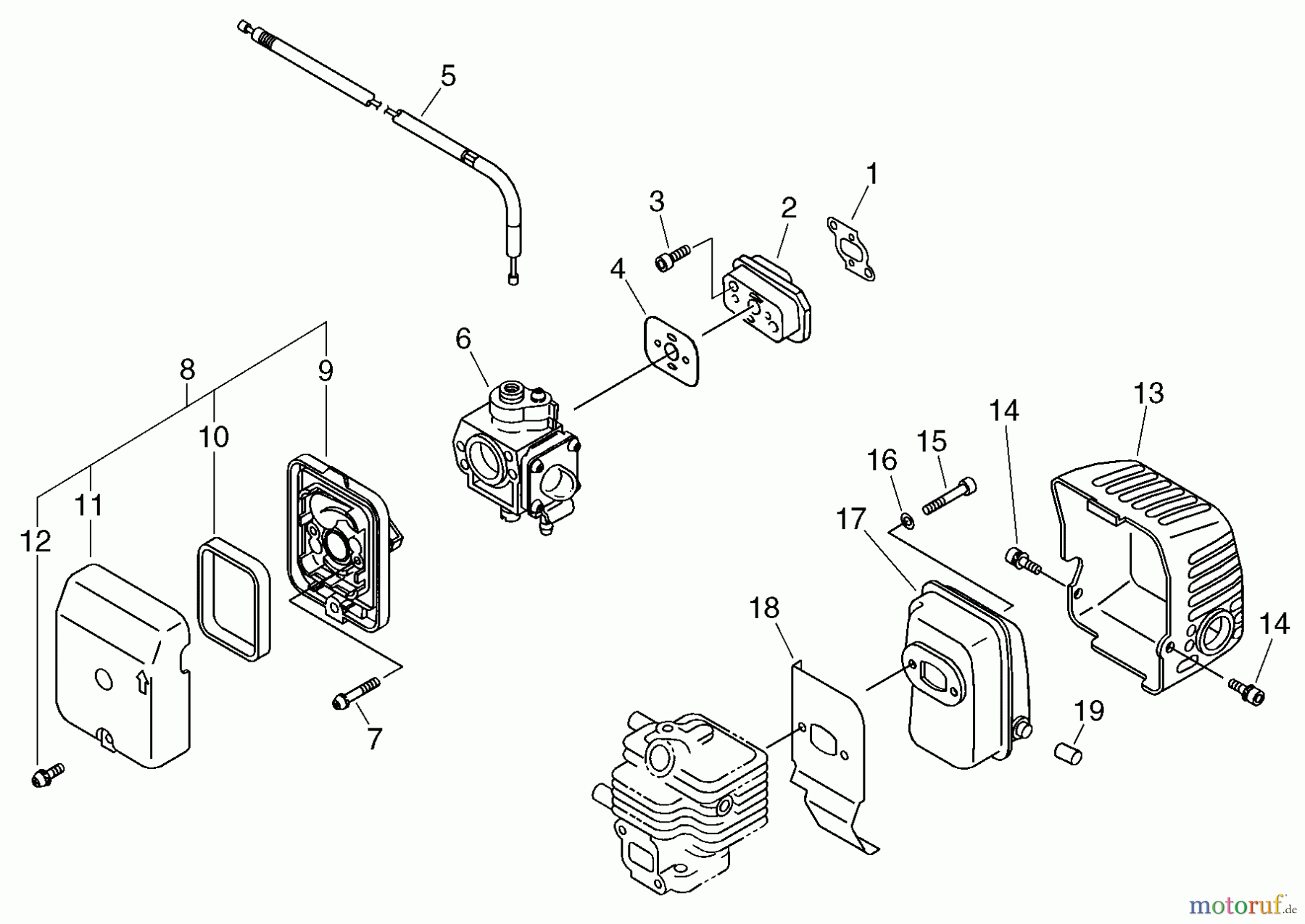

Air Cleaner, Carburettor, Muffler SHP-800 - Echo Shaft Hedge Trimmer,

Pos		Article Number	Description
1		16-130010-55930	Dichtung, Einlass, Zylinder
2		16-130017-56431	Zwischenflansch SRM-2655
3		16-900162-05025	Schraube 5x25 CS-5100/PB-46LN/
4		1613001056330
5		1670613005230
6		1612420013220
7		16-900242-05050	Schraube
8		1613030013411
9		1613030713410
10		16-130310-13410	Luftfilter SHR-150SI
11		16-130308-13410	Luftfilterdeckel SHR-150SI
12		16-900238-05016	Schraube 5*16
13		1614562156530
14		16-900106-05008	Schraube PB-500,-650, SRM-
15		16-900105-05055	Schraube EA-410/SHR-170SI/T-
16		16-900600-00005	Scheibe PB-500/452GS/DH2200ST
17		1614561062630
18		16-145510-55932	Auspuffdichtung SRM-2655
19		16G231000021
