Echo CS-1001VL - Chainsaw Clutch, Cutting Attachment Spareparts

• Start
• Echo
• Sägen, Kettensägen
• CS-1001VL - Echo Chainsaw
• Clutch, Cutting Attachment

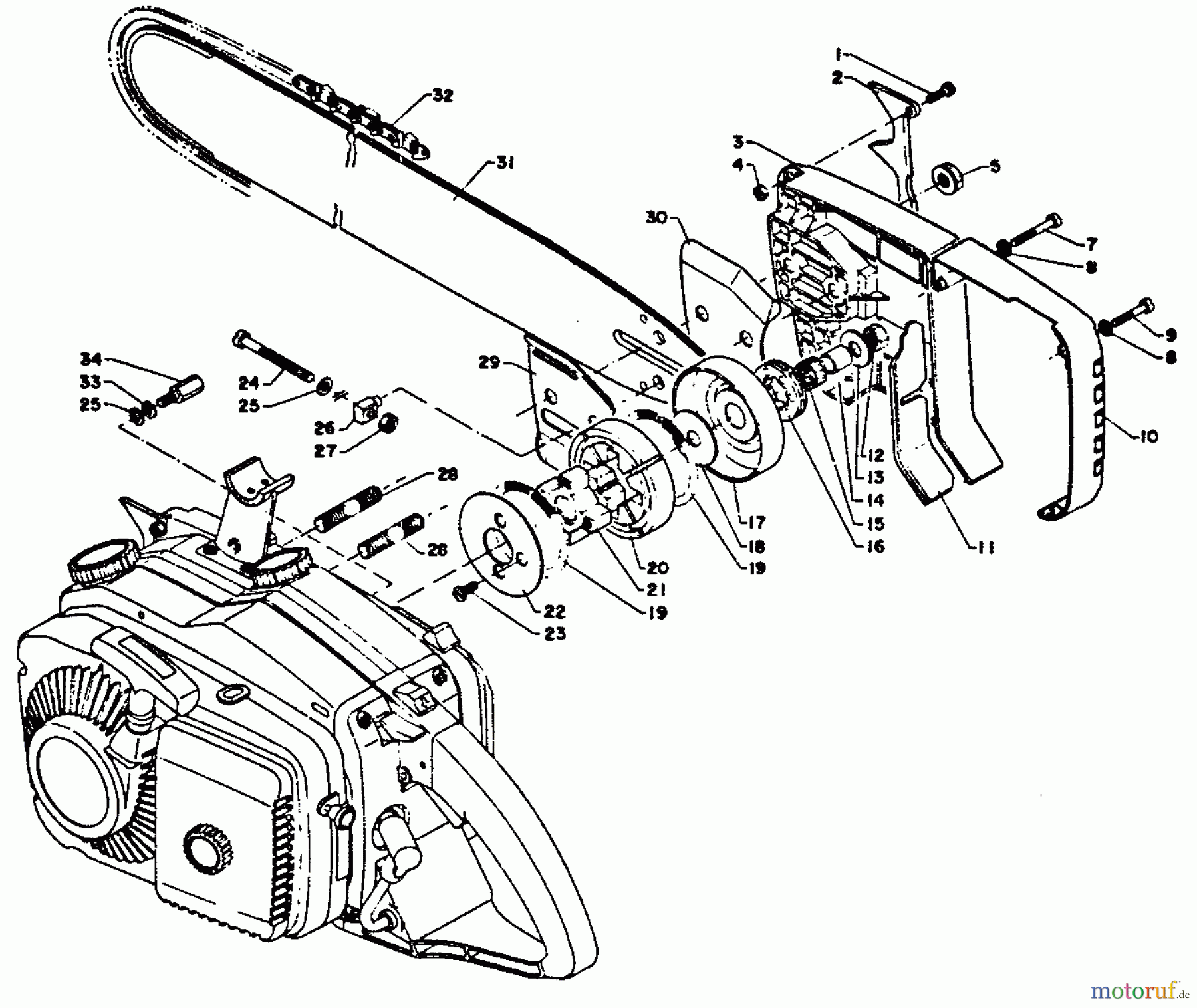

Clutch, Cutting Attachment CS-1001VL - Echo Chainsaw

Pos		Article Number	Description
1		16-900105-05015	Schraube
2		1699999999999
3		1643302110630
4		16-900560-00005	Mutter M5, selbstsichernd (10)
5		16-433019-10631	Schienend.-Mutter
7		16-900220-05050	Schraube 5x50 (50) PB/HC
8		16-900610-00005	Scheibe
9		16-900220-05040	Schraube
10		1614562110631
11		1643302510630
12		1610012910630
13		1617501410630
14		16-175013-00230	Distanzring
15		16-175012-30831	Nadellager
16		16105130
17		16-175006-10630	Kupplungstrommel
18		16-175015-10630	Scheibe
		1617500010630
19		1617501810631
20		1617501710631
21		1617501610631
22		16-175019-10631	Kupplungsplatte
23		1690021805012
24		1643301610630
25		16-900600-00006	Scheibe
26		16-433014-10631	Kettenspanner
27		1690056200006
28		16-433011-10630	Stehbolzen
29		1643301310630
30		1643301210630
31		1643032810630
31		1643032910630
31		1643033010630
32		1643113310631
32		1643113410631
32		1643113510631
33		16-900605-00006	Scheibe SHR-150SI/-170SI
34		1643302610630
