Echo CS-3900 - Chainsaw Clutch, Cutting Attachment, Chain Brake, Tools Spareparts

• Start
• Echo
• Sägen, Kettensägen
• CS-3900 - Echo Chainsaw
• Clutch, Cutting Attachment, Chain Brake, Tools

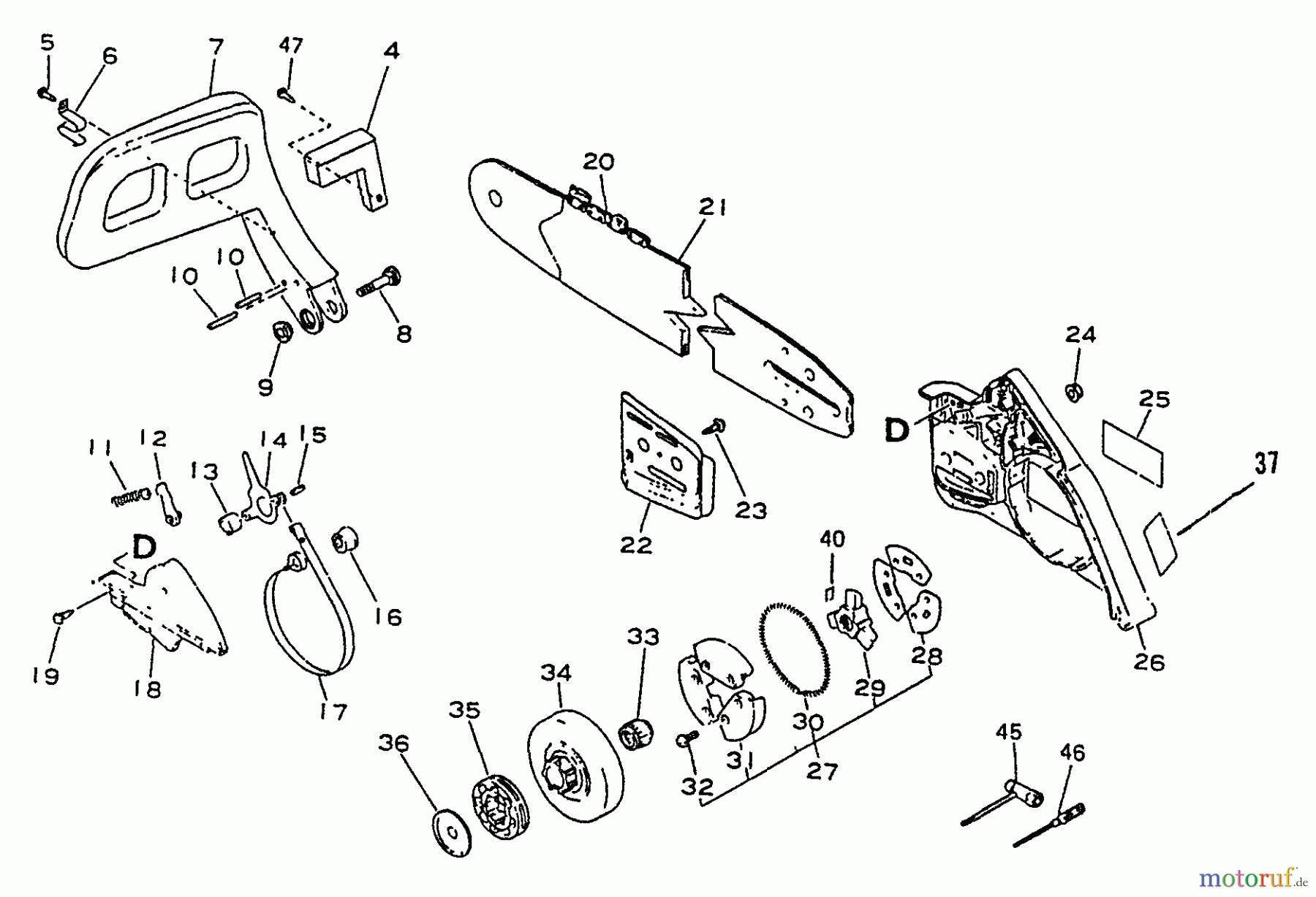

Clutch, Cutting Attachment, Chain Brake, Tools CS-3900 - Echo Chainsaw

Pos		Article Number	Description
4		16-433171-35430	Gewicht CS-3600/3900
5		16-900252-05014	Schraube
6		16-433114-35430	Feder
7		16-433111-37930	Bremshebel CS-3600/3900
8		16-433113-30130	Schraube(Eisen) CS-3600/3900/
9		16-433137-30130	Mutter CS-3900/4500/4601/5501
10		16-900330-30240	Bolzen CS-3700
11		16-433122-35430	Feder CS-3400/4400/5100
12		16-433209-35430	Stopper
13		16-433116-35430	Hülse CS-2600
14		16-433208-35431	Bremshebel CS-3700
15		16-900340-40008	Spannstift
16		16-433142-35430	Einsteller CS-3700/6702
17		16-C328-000060	Bremsband CS-3700
18		1643331037930
19		16-900246-04014	Schraube 4 x 14 PB-500
22		16-433013-35430	Führungsblech CS-3600
23		16-900246-04008	Schraube 4 x 8
24		16-V265-000200	Mutter 452GS
25		16-890118-38130	Aufkleber
26		1643300537931
27		16-175000-35431	Zbs. Kupplung CS-3900, CS-4400
28		16-175019-19830	Kupplungsplatte
29		16-175016-35430	Kupplung, Nabe CS-3900, CS-
30		16-175018-19830	Feder
31		16-175002-19830	Kupplungsschuh (Satz = 3 Stk.)
32		16-900238-04008	Schraube
40		16-175062-35430	Distanzring
33		16V555000050
34		16-175105-35431	Kupplungstrommel CS-4400
35		16-175114-12530	Ring-Kettenrad 325" CS-4400/
36		16-175015-35430	Scheibe CS-3900
37		1689019937930
45		16-895410-06960	Kombischlüssel
46		16-895812-03930	Schraubenzieher f.
47		16-900267-04014	Schraube 4 x 14
20		1633SL66CQ
20		1633SL72CQ
21		1616A0AD3366
21		1618A0AD3372
