Echo CS-3900 - Chainsaw Intake, Exhaust, Air Cleaner Spareparts

• Start
• Echo
• Sägen, Kettensägen
• CS-3900 - Echo Chainsaw
• Intake, Exhaust, Air Cleaner

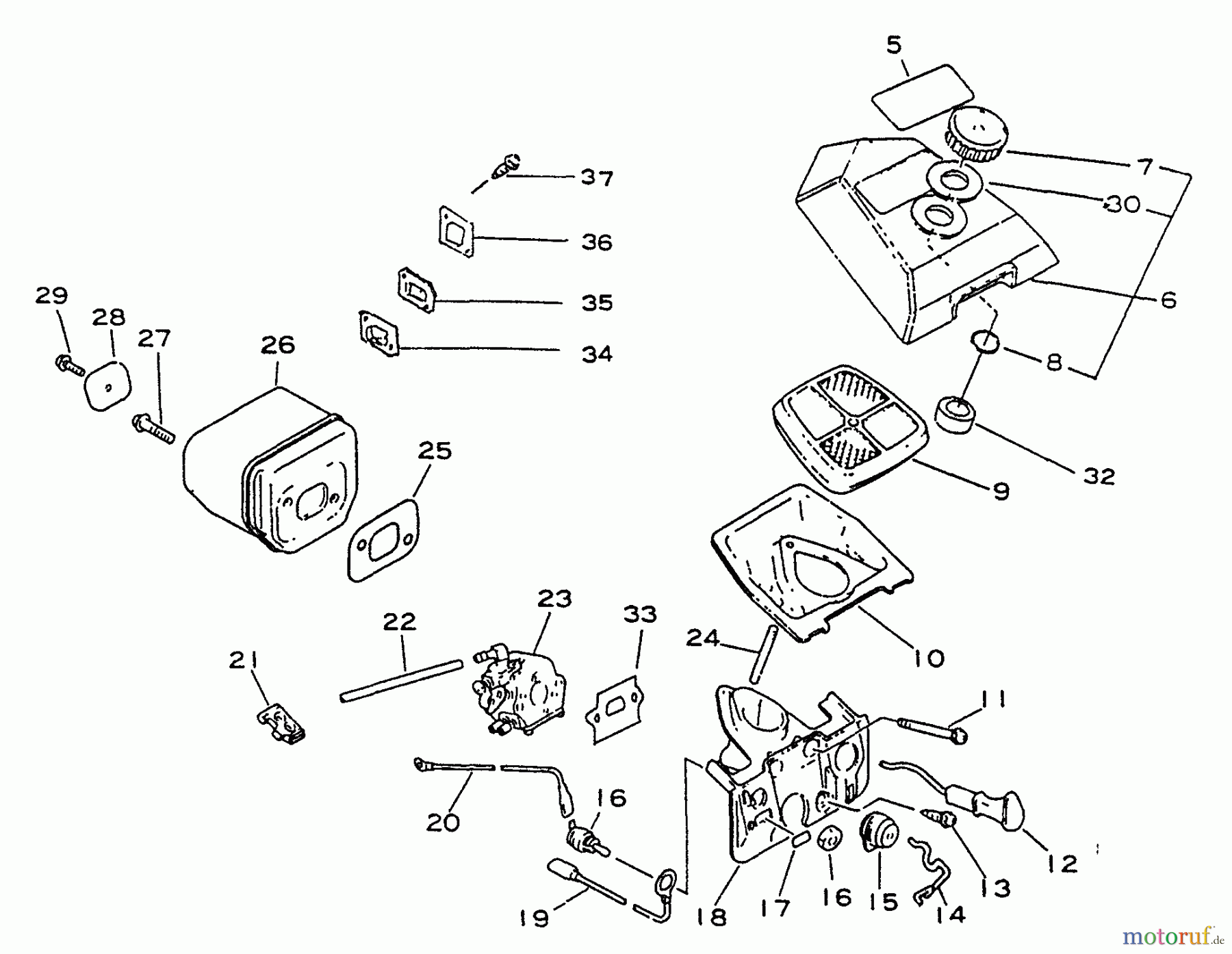

Intake, Exhaust, Air Cleaner CS-3900 - Echo Chainsaw

Pos		Article Number	Description
5		1689016137330
6		16-130302-35430	Luftfilterdeckel CS-3600/-3900
7		16-130406-33331	Rändelschraube CS-5501/6701
8		16-900720-00011	O-Ring CS-3900, CS-4601, CS-
30		16-130414-37330	Dichtung
9		1613030536030
10		16-130320-35430	Dichtring
11		16-900252-05055	Schraube 5x55 (10) CS-3900
12		1617851037930
13		16-900252-05020	Schraube M5x20
14		16-178011-35430	Gasgestänge CS-3600, CS-3900
15		16-178114-35430	Tülle
16		16-163400-35430	Stopschalter CS-3700
17		1689015735430
18		1613040537930
19		16-156621-35430	Leitung
20		16-156630-37330	Leitung CS-3900
21		16-132115-35430	Dichtring
22		16-437211-16431	Schlauch
23		16	16
24		16-130325-32330	Stehbolzen CS-5501/6701 ohne
25		16-145510-35431	Auspuffdichtung CS-3700, CS-
26		1614580535430
27		16-900162-05018	Schraube 5x18 (Eisen) PB-500
28		16-145711-60631	Platte CS-4200,3700
29		16-900238-04008	Schraube
32		16-130414-35430	Dichtung
33		16-130010-35430	Dichtung
34		1614588439330
35		1614586335430
36		1699999999999
37		16-900250-04008	Schraube 4x8 (10), CS-3000,
