Echo CS-5500 - Chainsaw, S/N: 020977 - 999999 Clutch, Cutting Attch, Chain Brake Spareparts

• Start
• Echo
• Sägen, Kettensägen
• CS-5500 - Echo Chainsaw, S/N: 020977 - 999999
• Clutch, Cutting Attch, Chain Brake

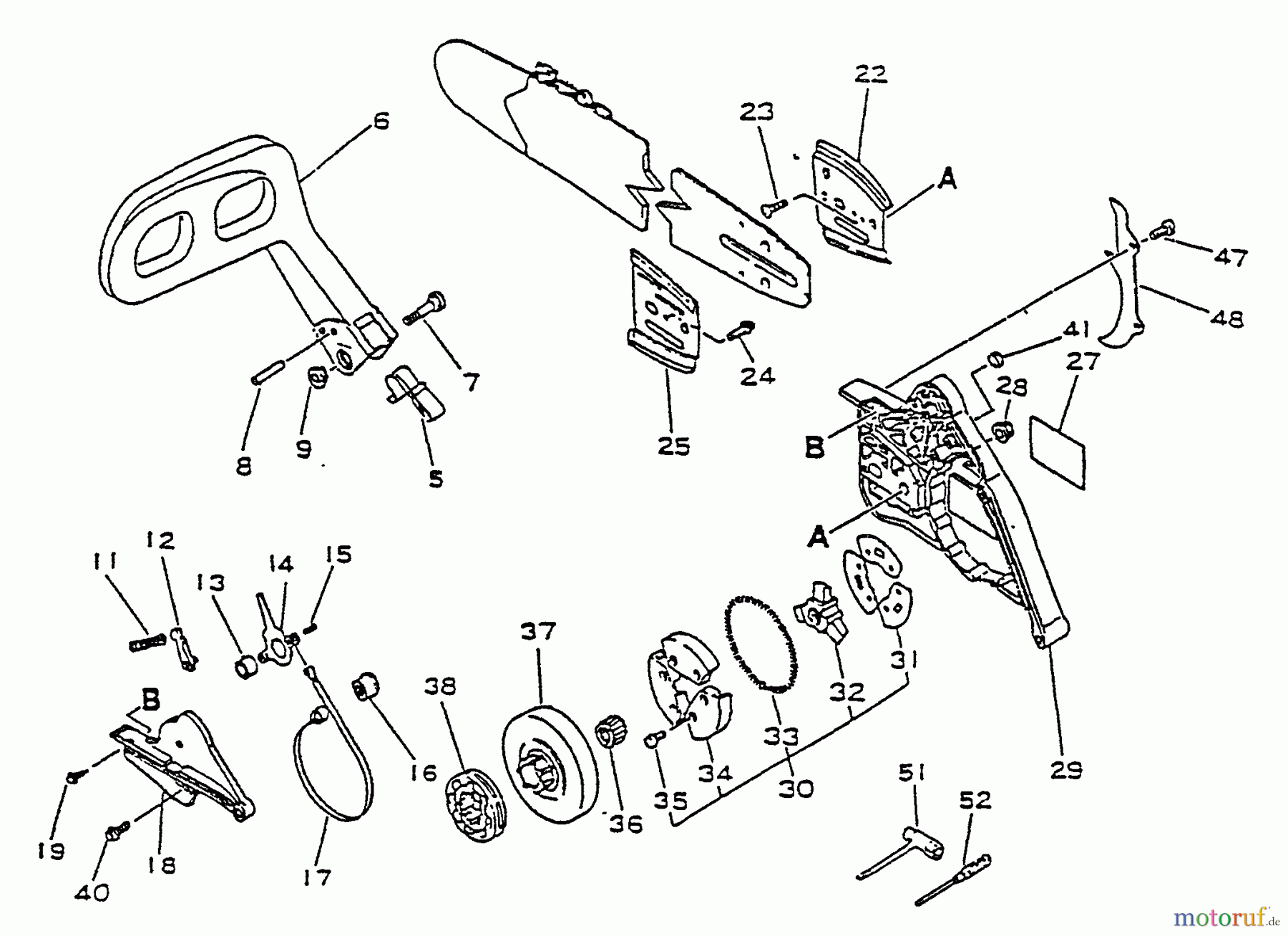

Clutch, Cutting Attch, Chain Brake CS-5500 - Echo Chainsaw, S/N: 020977 - 999999

Pos		Article Number	Description
5		16-433114-38131	Feder
6		1643310533531
7		16-433113-37538	Schraube
8		16-900330-35260	Bolzen PB-46LN
9		16-433137-30130	Mutter CS-3900/4500/4601/5501
11		16-433122-38130	Feder CS-5501/6701/6702/8001
12		16-433209-35430	Stopper
13		16-433116-35430	Hülse CS-2600
14		16-433208-35431	Bremshebel CS-3700
15		16-900330-40088	Bolzen 4x8,8 CS-3700
16		16-433142-35430	Einsteller CS-3700/6702
17		16-433123-32530	Bremsband
18		1643331038230
19		16-900252-04012	Schraube 4 x 12 CS-6701, CS-
22		16-433012-30830	Führungsblech CS-6701
23		16-900241-03006	Schraube
24		16-900238-04008	Schraube
25		16-433013-30830	Führungsblech
27		16-890118-38130	Aufkleber
28		16-V265-000200	Mutter 452GS
29		1643301038231
30		16-P021-007070	ZBS.Kupplung CS-3700ES
31		16-175019-19830	Kupplungsplatte
32		16-175016-19830	Nabe
33		16-175018-19830	Feder
34		16-175002-19830	Kupplungsschuh (Satz = 3 Stk.)
35		16-900105-04006	Bolzen 4x6
36		16-175012-19830	Nadellager
37		16-175105-33330	Kupplungstrommel CS-5501 /
38		16-175114-12530	Ring-Kettenrad 325" CS-4400/
40		16-900220-03018	Schraube 3x18
41		16-900500-00003	Mutter
48		16-P021-002880	Kralle, kpl. CS-6702
47		16-880211-30130	Schraube
51		16-895410-06960	Kombischlüssel
52		16-895812-03930	Schraubenzieher f.
