Echo QV-6700 - Quick Vent Chain Saw (Type 1 ) Clutch, Cutting Attachment, Chain Brake S/N: 001001 - 003450 Spareparts

Clutch, Cutting Attachment, Chain Brake S/N: 001001 - 003450 QV-6700 - Echo Quick Vent Chain Saw (Type 1 )

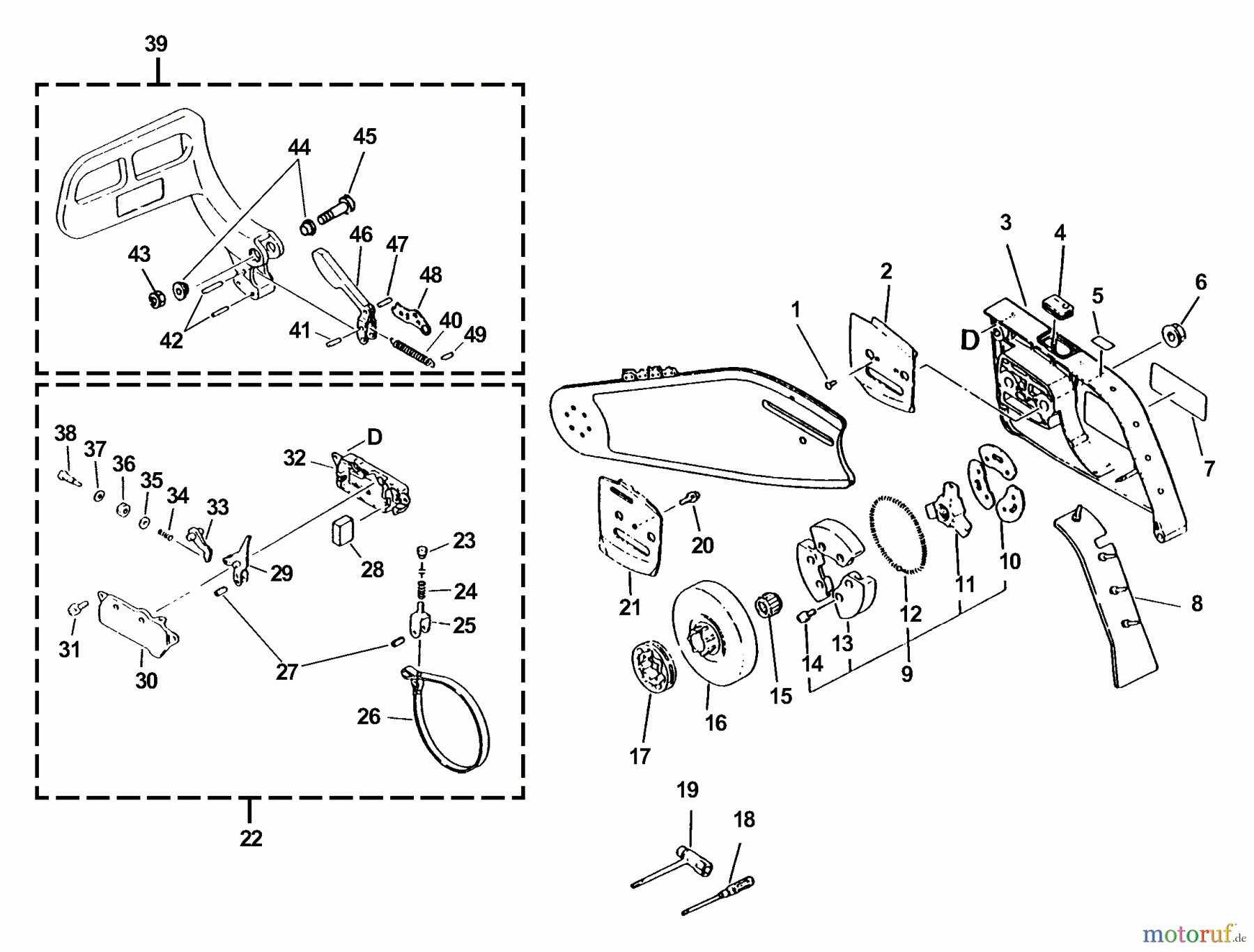

Echo Rettungssäge QV-6700 - Echo Quick Vent Chain Saw (Type 1 ) Clutch, Cutting Attachment, Chain Brake S/N: 001001 - 003450
PosArticle NumberDescription
1 16-900241-03006Schraube
2 1643301232631
3 16P021002291
4 16-433312-19930Schutz
5 16X524000680
6 16-V265-000200Mutter 452GS
7 16-890118-38130Aufkleber
8 16-433025-32430Gummischutz
9 16-175000-32432Kupplung Zsb. CS-6701
10 16-175019-16130Platte
11 16-175016-32430Kupplungsnabe
12 16-175018-32430Kupplungsfeder CS-6701/CSG-
13 16-175002-32431Kupplungsbacken
14 16-900105-04006Bolzen 4x6
15 16-175012-32430Nadellager
16 16-175105-32431Kupplungstrommel CS-6701, CS-
17 16682100
18 16-895812-03930Schraubenzieher f.
19 16-895410-06960Kombischlüssel
20 16-900241-04008Schraube(Eisen)
21 1643301332631
22 1699999999999
23 16-433169-19931Einstellmutter
24 16-433161-19930Feder
25 16-433142-19931Einsteller
26 16-433123-30830Bremsband
27 16-900340-40010Spannstift/CS-8000
28 16-433313-19930Staubschutz
29 16-433208-30230Auslösehebel
30 16-433310-19931Deckel
31 16-900162-04010Schraube CS-4500,-4000,-6701,-
32 16-433306-19930Abdeckung
33 16-433209-19930Hebel
34 16-433122-19930Feder
35 16-433162-19930Scheibe
36 16-900502-00005Mutter CS-4500, ES-2400, PB-
37 1690061700005
38 16-433133-19930Bolzen
39 16-433203-32632Kettenbremshebel CS-5500/6700
40 16-433114-30130Feder
41 16-900345-30012Spannstift CS-4000, CS-4500
42 16-900330-30240Bolzen CS-3700
43 16-900560-00005Mutter M5, selbstsichernd (10)
44 16-433167-39130Scheibe CS-2600,3700
45 16-900209-05030Schraube CS-3050, CS-3400, HC-
46 16-433170-30130Gewicht
47 16-900330-40080Bolzen (10)
48 16-433163-32430Halteblech
49 16-900345-30016Spannstift Produktion
