Echo QV-8000 Handles, Throttle Control, Fuel System Spareparts

• Start
• Echo
• Rettungssäge
• QV-8000
• Handles, Throttle Control, Fuel System

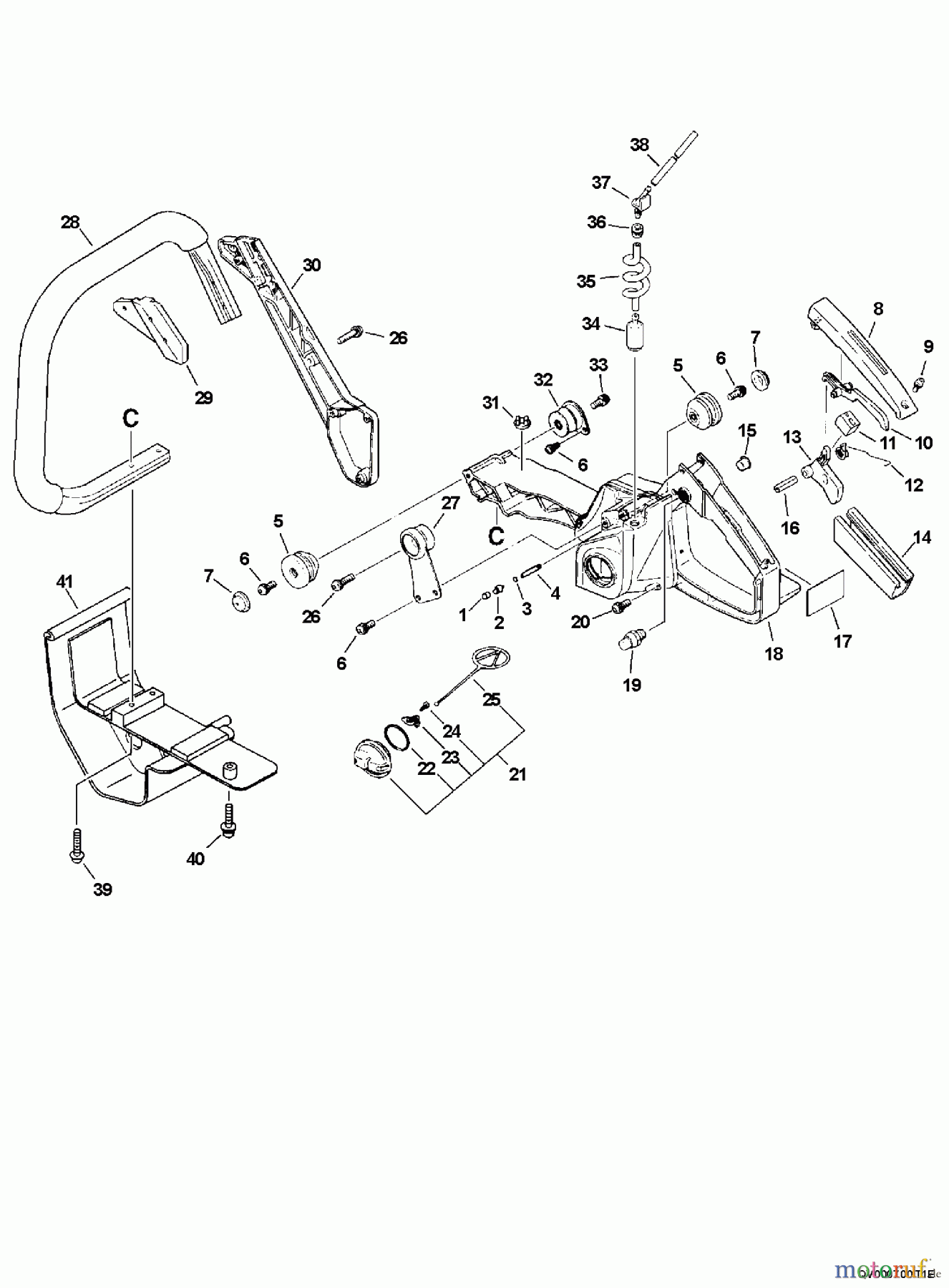

Handles, Throttle Control, Fuel System QV-8000

Pos		Article Number	Description
1		16-A356-000031	Ventil Tankbelüftung PAS-2400/
2		16-131328-40630	Entlüftungsventilsitz CS-3700,
3		16-130111-00530	Klipp (10) CS-6702, SRM-2010
4		16-437210-31730	Leitung CS-8000/8001
5		16-100910-30830	Puffer
6		16-900162-05014	Schraube M 5x14
7		16-100918-19830	Abdeckkappe CS-3700
8		16-351155-30131	Handgriffdeckel CS-4500/5501/
9		16-900162-04014	Schraube
10		16-178090-37930	Gashebelsperre CS-3700
11		16-178073-32430	Gummipuffer für Gashebel
12		16-178043-19830	Feder
13		1617801038130
14		16-351111-19830	Griff
15		16-131329-32330	Stopfen
16		16-900342-50025	Spannstift (10)
17		16X524000680
18		1635110338733
19		16-178302-37930	Halbgasknopf CS-3050/4200
20		16-900220-04014	Schraube
21		16-131004-37632	Tankdeckel, Benzin
22		16-900720-00029	O-Ring CS-4500, CS-4601, CSG-
23		16-131050-19830	Halter
24		16-900246-03008	Schraube
25		16-A365-000050	Halter, Tankdeckel CS-3700ES/-
26		16-900162-05020	Schraube M5x20 PB-6000/-46LN/-
27		16-100917-30830	Gummipuffer
28		1635160630831
29		1635161438731
30		1635161338731
31		16-100252-30830	Puffer
32		16-100922-30830	Puffer CS-8000, CS-8001
33		16-900162-04010	Schraube CS-4500,-4000,-6701,-
34		1613120519832
35		16-132010-30830	Benzinleitung(Gummi)
36		16-132115-01461	Dichtring (Gummi) CS-2600/PPT-
37		16-132011-19831	Verbindungsstück CS-4500, CS-
38		16-132012-02960	Benzinleitung
39		16-900162-05030	Schraube CS-3500,-3501, SRM-
40		16-900162-05025	Schraube 5x25 CS-5100/PB-46LN/
41		1630510531730
