Echo SHR-210 - Power Sprayer Carburetor -- C1U-K52 Spareparts

• Start
• Echo
• Pflanzenschutzspritzen
• SHR-210 - Echo Power Sprayer
• Carburetor -- C1U-K52

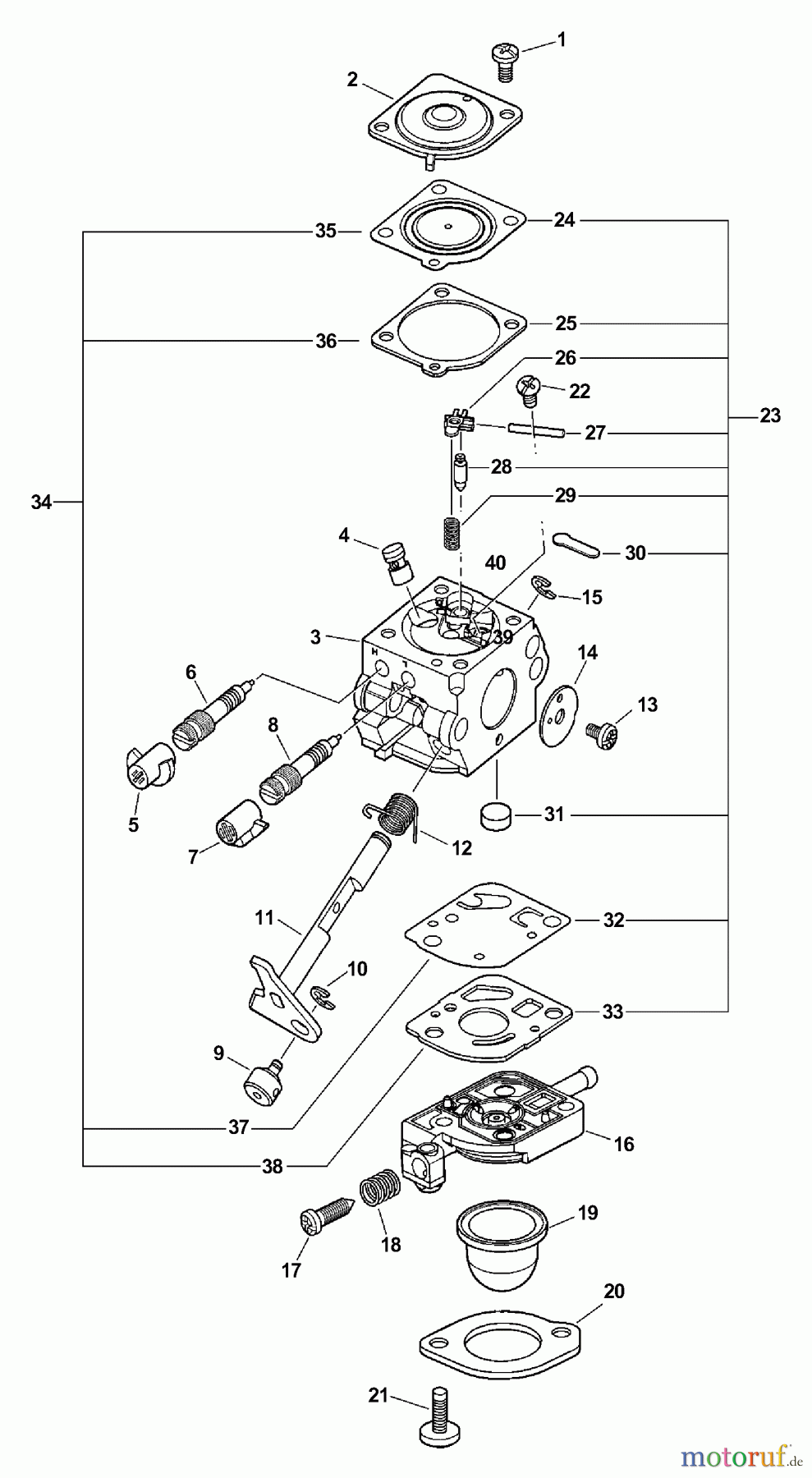

Carburetor -- C1U-K52 SHR-210 - Echo Power Sprayer

Pos		Article Number	Description
		1612520013313
1		16-125344-52130	Schraube SHR-170SI
2		16-125342-52130	Membrandeckel SHR-150SI
3		16	16
4		16-125376-13120	Düse
5		16-125329-39030	Begrenzer, Vergaser HC-2400,
6		16-125320-13310	Nadel, Vollast
7		16-125329-09860	Begrenzer, Vergaser C1U-K51 +
8		16-125318-13120	Nadel, Standgas
9		16-125372-42030	Schraube
10		16-125327-13930	Clip
11		16-125317-13310	Gestänge
12		16-125313-42030	Feder ES-2000,HC-2100,PP-600,
13		16-125314-13930	Schraube
14		16-125316-49030	Ventil
15		16-125327-15130	Clip
16		16-P005-000590	Vergaserdeckel SRM-2455S
17		16-125334-06960	Einstellschraube HC-1500, SRM-
18		16-125334-06960	Einstellschraube HC-1500, SRM-
19		16-125381-08660	Pumpengummi SRM-2450/PB-2455/
20		16-125363-11610	Ring
21		16-125310-11610	Schraube
22		16-125339-42030	Schraube SHR-170SI
23		16-125300-13310	Vergaserreparatursatz
24		16	16
25		16	16
26		16	16
27		16	16
28		16	16
29		16	16
30		16	16
31		16	16
32		16	16
33		16	16
34		16-125303-13310	Vergaserdichtsatz SRM-2015,
35		16	16
36		16	16
37		16	16
38		16	16
