Echo SHR-2100 - Power Sprayer Carburetor Spareparts

• Start
• Echo
• Pflanzenschutzspritzen
• SHR-2100 - Echo Power Sprayer
• Carburetor

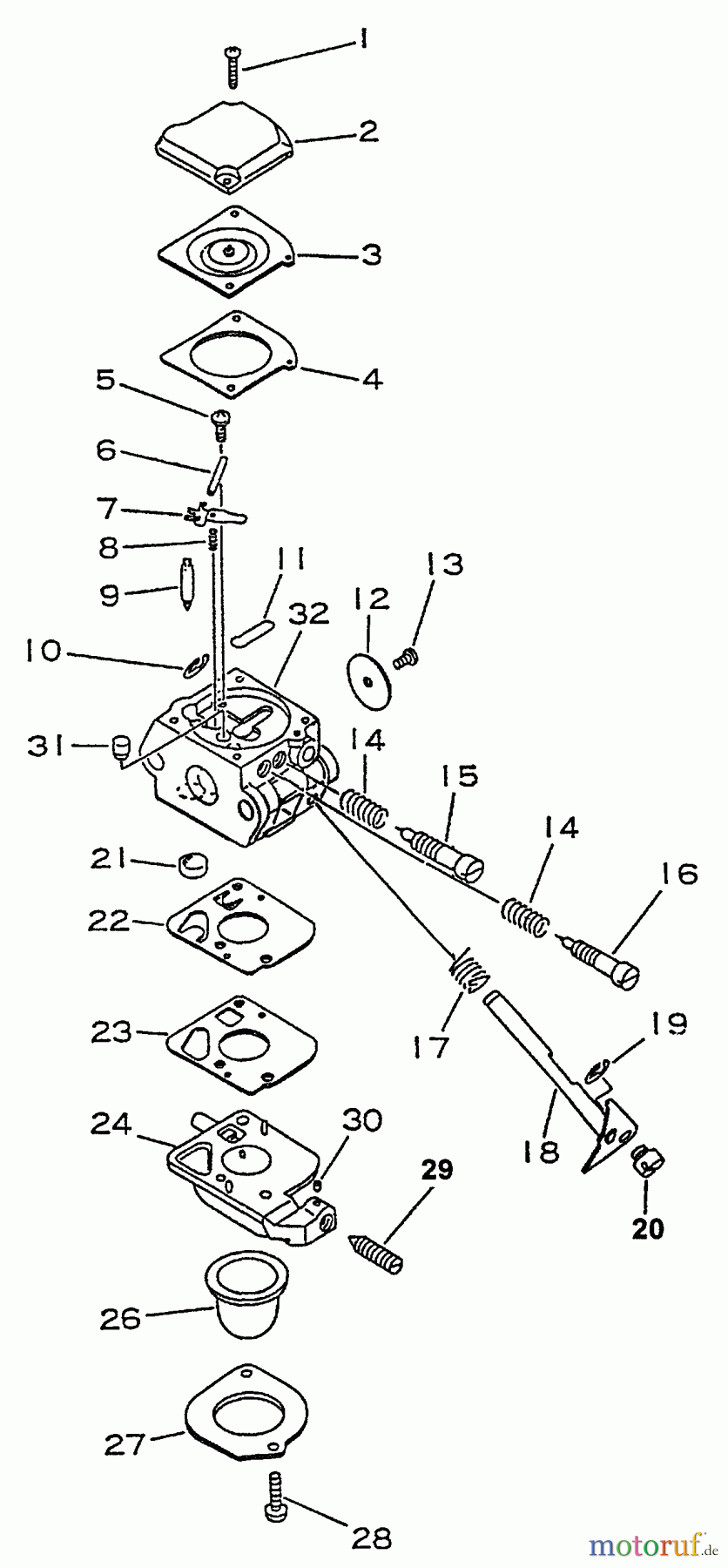

Carburetor SHR-2100 - Echo Power Sprayer

Pos		Article Number	Description
		1612520013211
1		16-125344-52130	Schraube SHR-170SI
2		16-125342-52130	Membrandeckel SHR-150SI
3		16	16
4		16	16
5		16-125339-42030	Schraube SHR-170SI
6		16	16
7		16	16
8		16	16
9		16	16
10		16-125327-15130	Clip
11		16	16
12		1699999999999
13		16-125314-51230	Schraube
14		16-125319-42030	Feder ES-2100, HC-2100, PB-
15		16-125320-51230	Einstellnadel HCA-2400
16		16-125318-51330	Einstellschraube SRM-3550
17		16-125313-42030	Feder ES-2000,HC-2100,PP-600,
18		16-125317-11820	Gestänge
19		16-125327-13930	Clip
20		16-125372-42030	Schraube
21		16	16
22		16	16
23		16	16
24		16-125324-11610	Deckel
26		16-125381-08660	Pumpengummi SRM-2450/PB-2455/
27		16-125363-11610	Ring
28		16-125310-11610	Schraube
29		16-125334-13930	Einstellschraube
30		16-125378-13930	Hülse
31		1612537613210
32		16	16
		16-125303-51030	Vergaserdichtsatz, Gummi SRM-
		16-125300-51030	Vergaser Reparatursatz GT-
